BUILT IN FURNITURE
NOTE:
The fitted cabinet the appliance is being installed into must not have a back wall behind
the appliance. A gap must be maintained between a wall and the base of the unit above. Specific

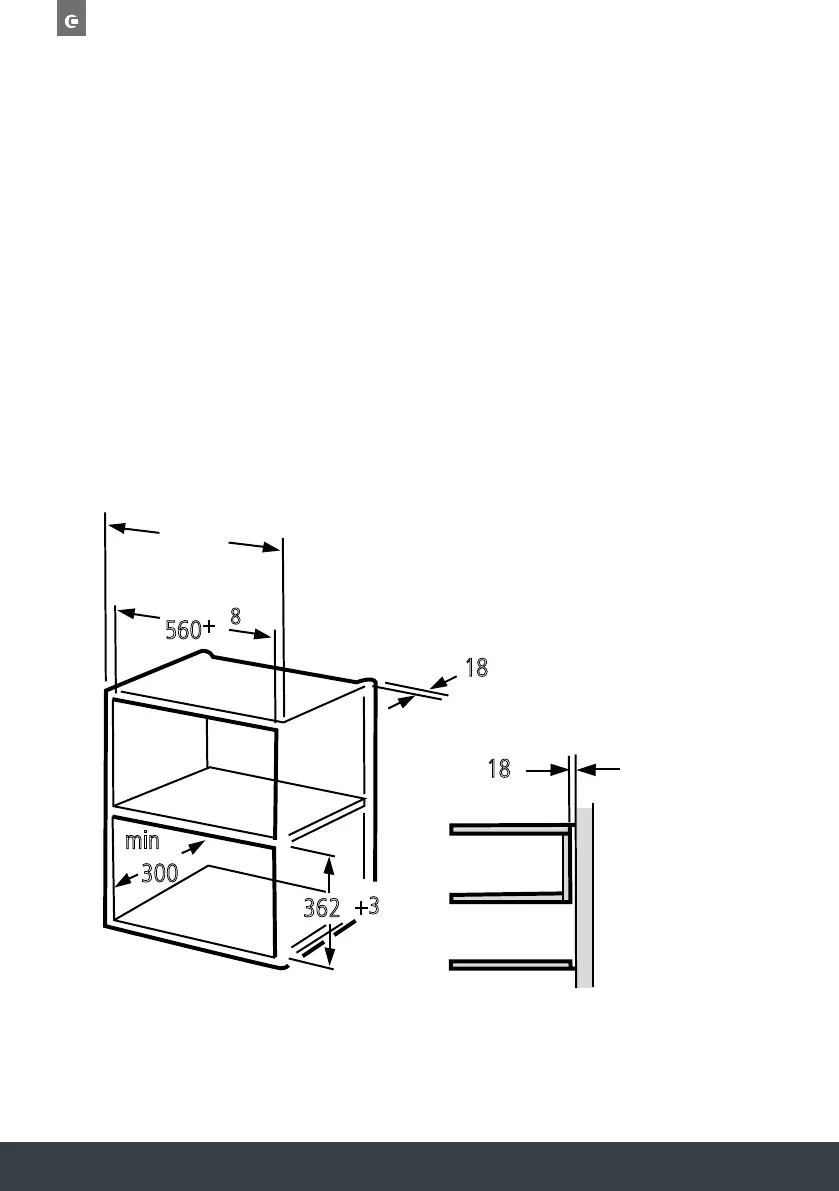

gap size can be referenced by the diagrams.
Minimum installation height: 85cm
NOTE:
Do not trap or bend the power cable.
WARNING:
Do not cover a ventilation slot or air intake points.
10
A. Built-in furniture
The cabinet the appliance is being installed into must have the rear panel behind the
appliance removed to allow for the correct ventilation.
The minimum installation height is 85cm.
Do not cover any ventilation slots or air intake points.
1.
2.
300
362
600
5
60
+
8
18
18
+3
min
600
560
+
8
(45)
(45)
362
+
3
min
340
All dimensions are shown in mm
Dimensions
