INSTALLING THE MICROWAVE
11
B. Installing the microwave

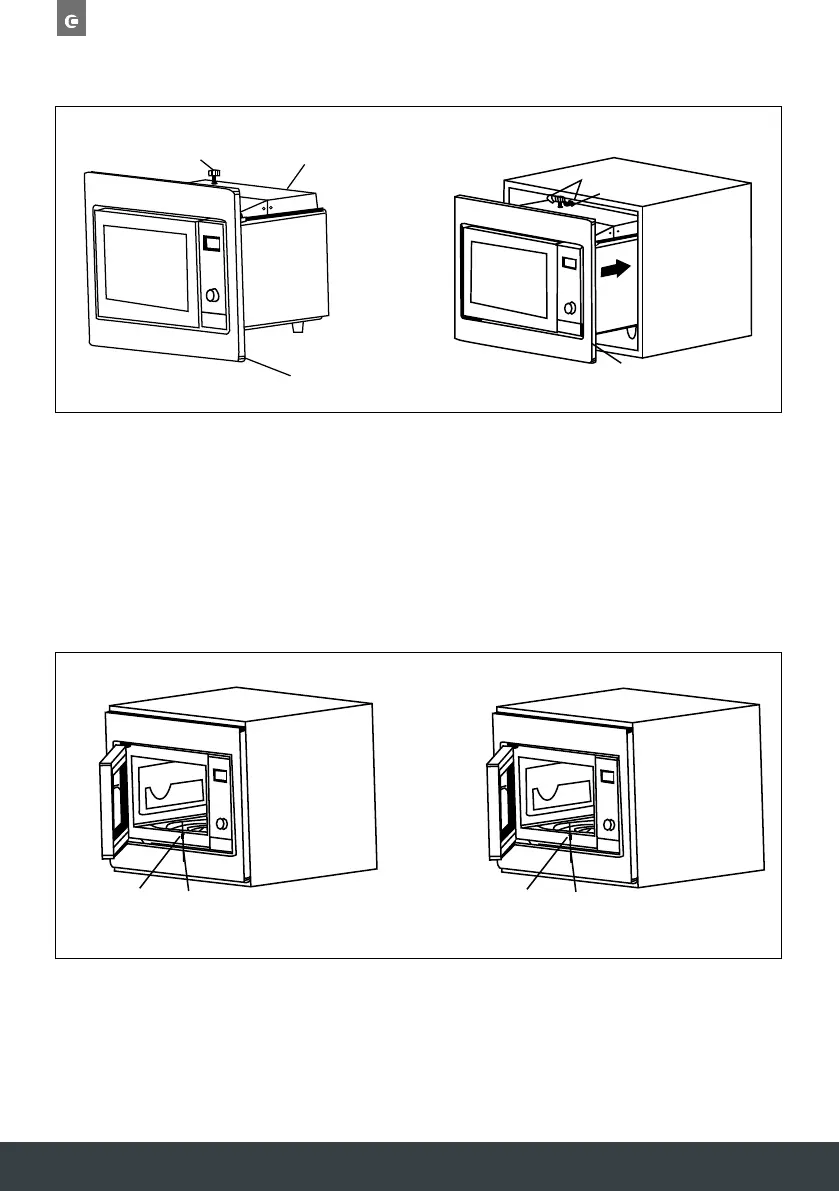

1. Fix adjustable screw A located on the upper air tunnel of the microwave, and then
install the microwave into the cabinet.
Adjust the height of adjustable screw A to keep 1mm gap between the
screw A and the top plane of cabinet.
Take care not to trap or kink the power cord.
Make sure the micrwave oven is installed in the center of the cabinet.
2.
Open the door and fix the microwave to the cabinet with screw B through the
installation hole of the trim kit. Then push the plastic cover in to the installation
hole to cover the fixing.
TRIM-KIT
UPPER AIR TUNNEL
ADJUSTABLE SCREW A
ADJUST HEIGHT
ADJUSTABLE SCREW A
TRIM KIT
INSTALLATION HOLE
PLASTIC COVER
INSTALLATION HOLE
SCREW B
Fix adjustable screw A located on the upper air tunnel of the microwave, and then install the
microwave into the cabinet.
» Adjust the height of adjustable screw A to keep 1mm gap between the screw A and the top
plane of cabinet.
» Take care not to trap or kink the power cord.
» Make sure the microwave oven is installed in the centre of the cabinet.
Open the door and fix the microwave to the cabinet with screw B through the installation hole of
the trim kit. Then push the plastic cover in to the installation hole to cover the fixing.
