Caple CR 1200 - Triple Ring Burner Installation; Correct Positioning of Triple Ring Burner

34
A
Fig. 8.2 Fig. 8.3
B
Triple ring burner

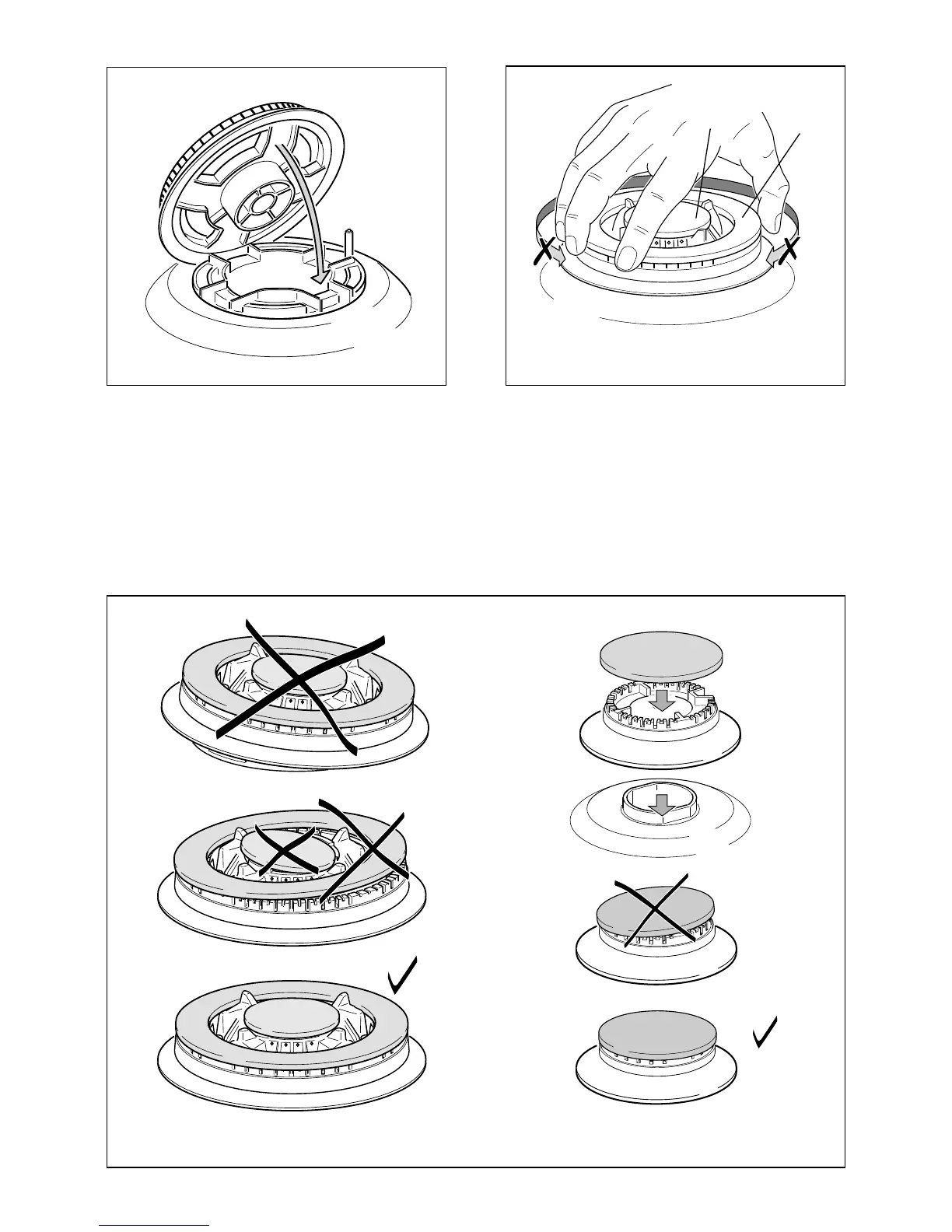

The triple ring burner must be correctly positioned (see figs. 8.2-8.3); the burner rib must
be enter in their logement as shown by the arrow.
The burner correctly positioned must not rotate (fig. 8.3).
Then position the cap A and the ring B (fig. 8.3 8.4).
Fig. 8.4
Fig. 8.5
