STEP 1:
SELECTING THE BEST LOCATION FOR THE DISHWASHER
The installation position of dishwasher should be near the existing inlet and drain hoses and

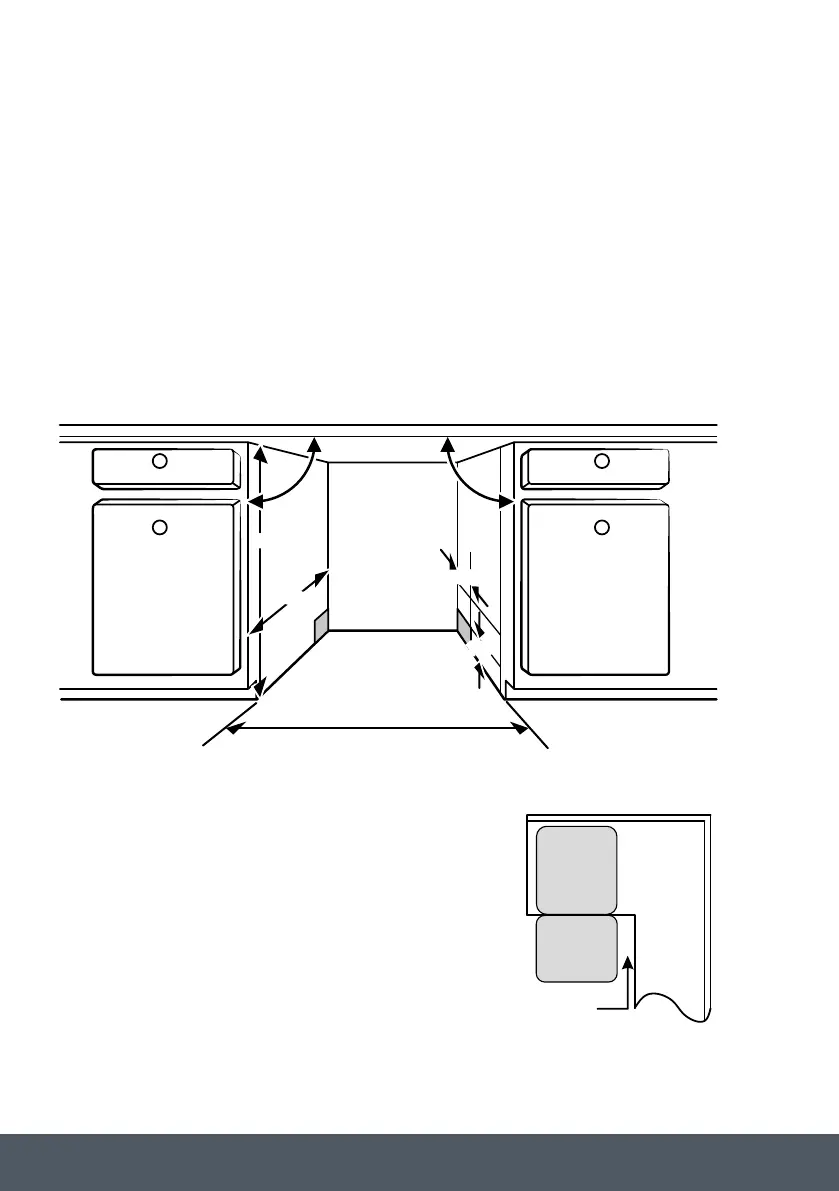

power cord. Illustrations of cabinet dimensions and installation position of the dishwasher:
› Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to
cabinet.
90 °
90 °
580mm
820mm
100
600mm
80
CabinetDishwasher
Door of
dishwasher
Minimum space
of 50mm
Space between
cabinet bottom and floor
Electrical, drain
and water supply
line entrances
580mm
820mm
100
80
› If dishwasher is installed at the corner of the cabinet,
there should be a gap of at least 50mm when the
door is opened to the adjacent cabinets.
NOTE:
› Depending on where your electrical outlet is, you may
need to cut a hole in the opposite cabinet side.
