Instruction manual Di64240 Please keep this instruction manual for future reference
STEP 2:
Furniture door panel’s dimensions and installation.
NOTE:
› The furniture door weight should be 5-7KG.

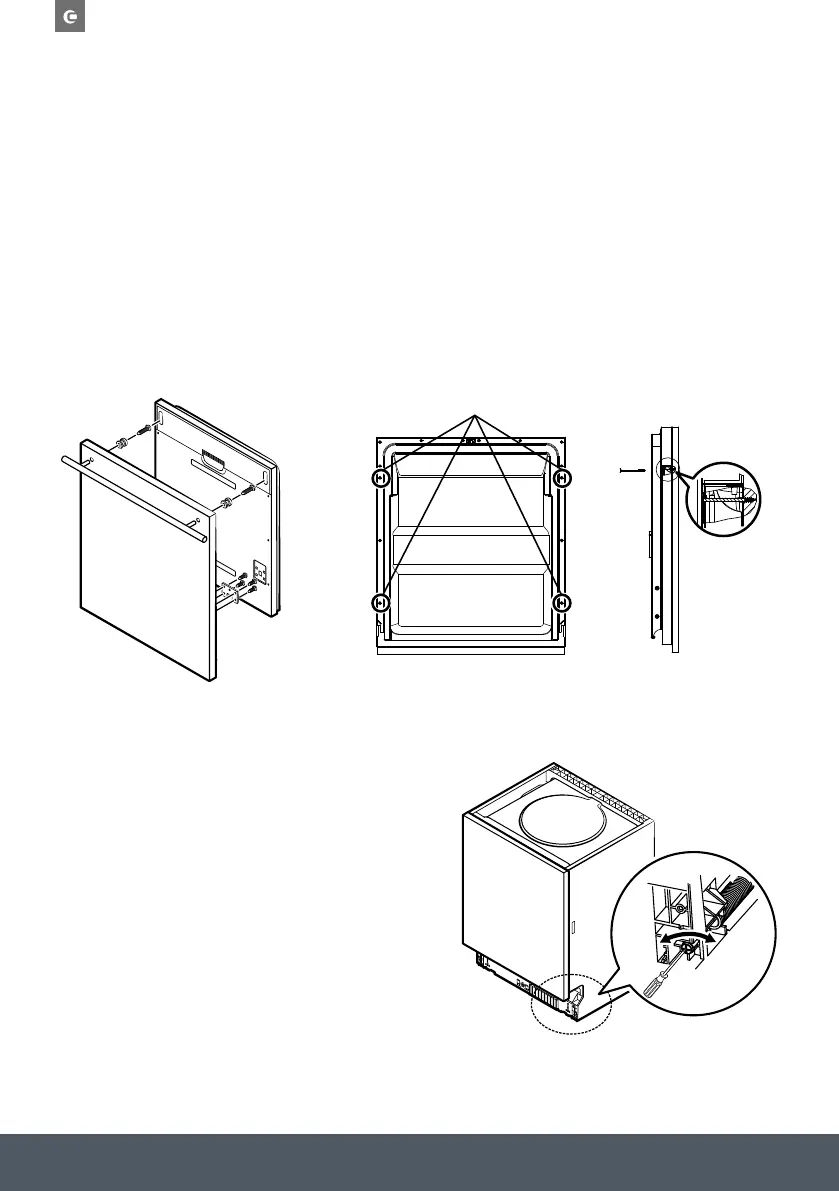

Install the hook on the furniture door panel and put the hook into the slot of the outer door of
dishwasher (see figure A). After positioning of the panel, fix the panel onto the outer door by
screws and bolts (See figure B).
2. Insert the four long screws
1. Take away the four short screwsFig.A Fig.B
2. Insert the four long screws
1. Take away the four short screwsFig.A Fig.B
STEP 3:
Tension adjustment of the door spring:
› The door springs are set at the factory to the
tension of the outer door. Once the furniture
door panel is installed, you will have to adjust
the door spring tension. Rotate the adjusting
screw to drive the adjustor to strain or relax
the steel cable.
› The door spring tension is correct when the
door remains horizontal in the fully opened
position, yet rises to a close with the slight lift
of a finger.
