AESTHETIC DOOR PANEL DIMENSIONS AND INSTALLATION

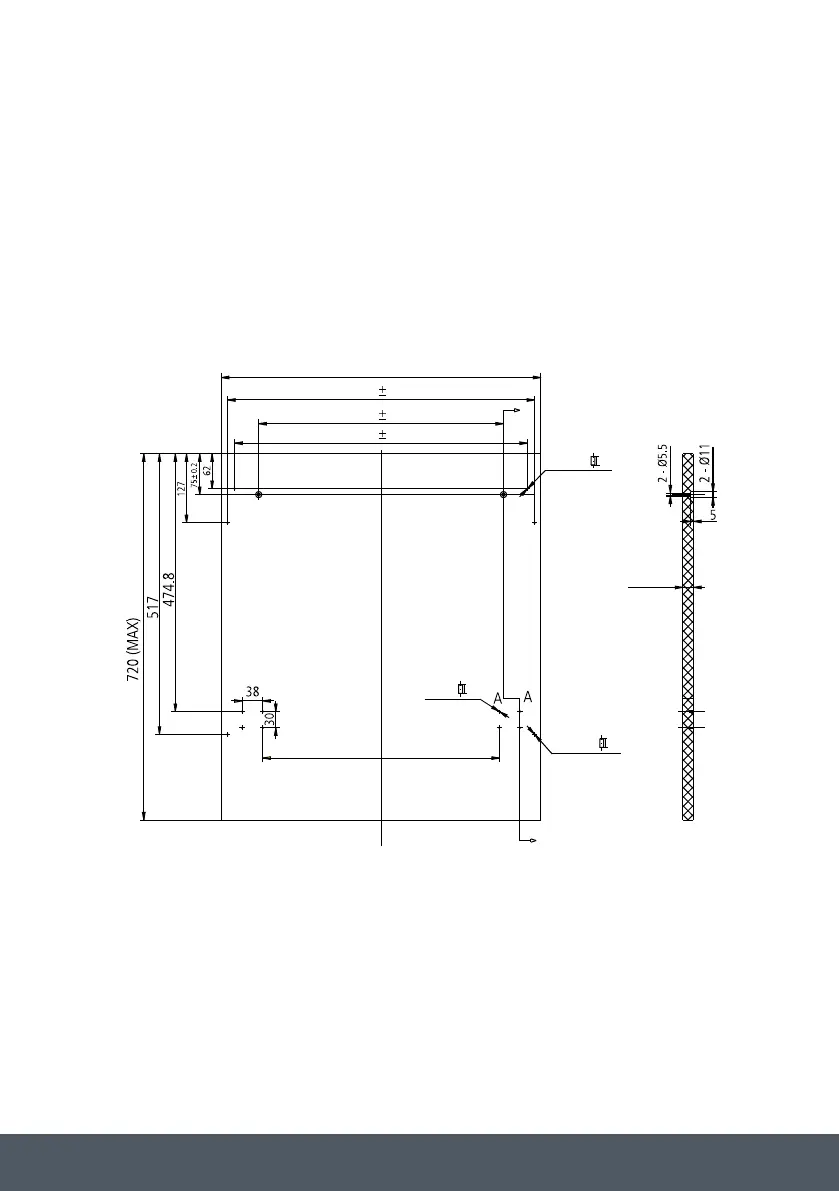

The aesthetic door panel could be processed according to Figure 3.
589
A
20 (MAX)
2 - Ø2( 8)
4 - Ø2( 8)
8 - Ø2( 8)
A-A
A
436
566 0.2
451 0.2
450 0.2
FIGURE 3
The aesthetic door panel should be processed in accordance with the illustrated dimensions
