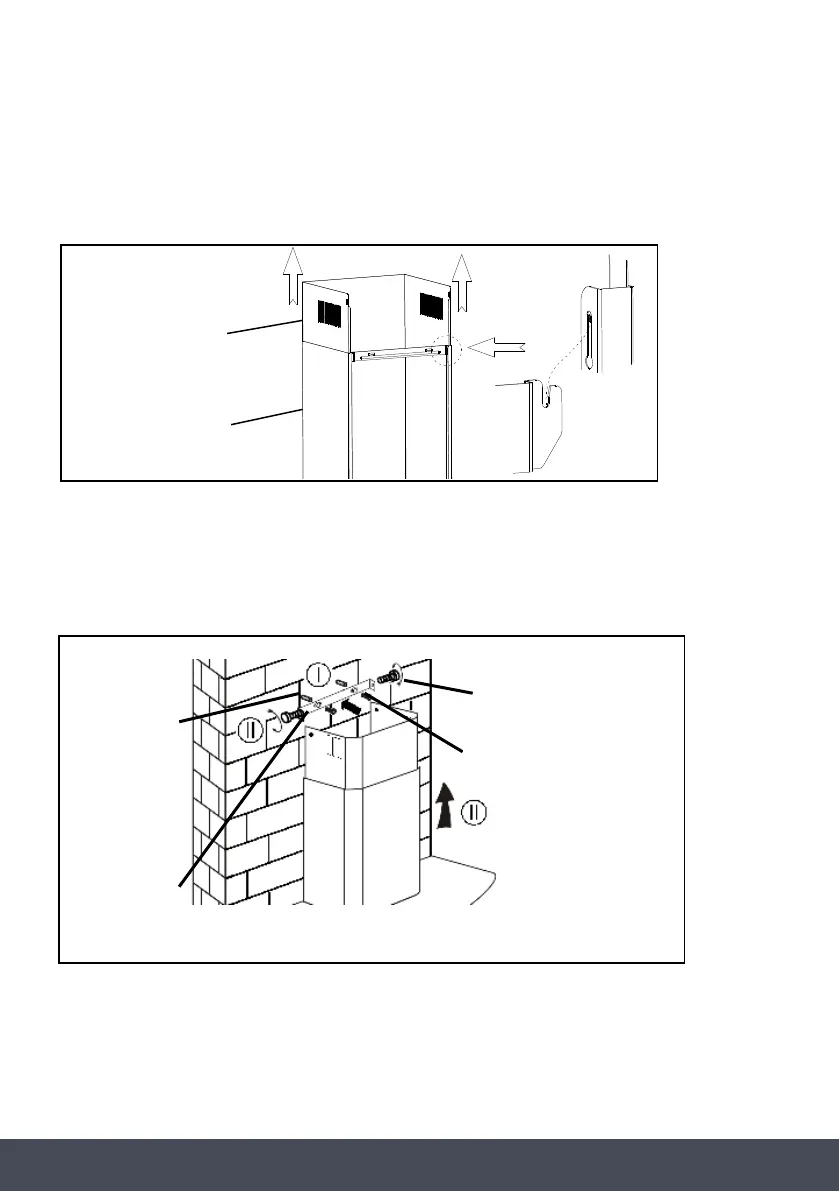

CHIMNEY INSTALLATION
Place the upper chimney into the lower chimney.
Attach the lower chimney bracket to the lower chimney.
Mark and drill 2 holes to fix the lower chimney bracket with 2 wall plugs and 2 screws ST4x30mm.
Slide the chimney to adjust the chimney height. When the height you require is reached, mark and
drill the fixing hole and fix the upper chimney bracket with 2 wall plugs and 2 screws ST4x30mm.
Fix the upper chimney with the upper chimney bracket using 2 scews ST4x8mm.
7
7
7
7
Upper Chimney
Lower Chimney
Wall Plug
Plate ||
Screw (4mm x 8mm)
Screw (4mm x 30mm)
