INSTALLATION INSTRUCTIONS

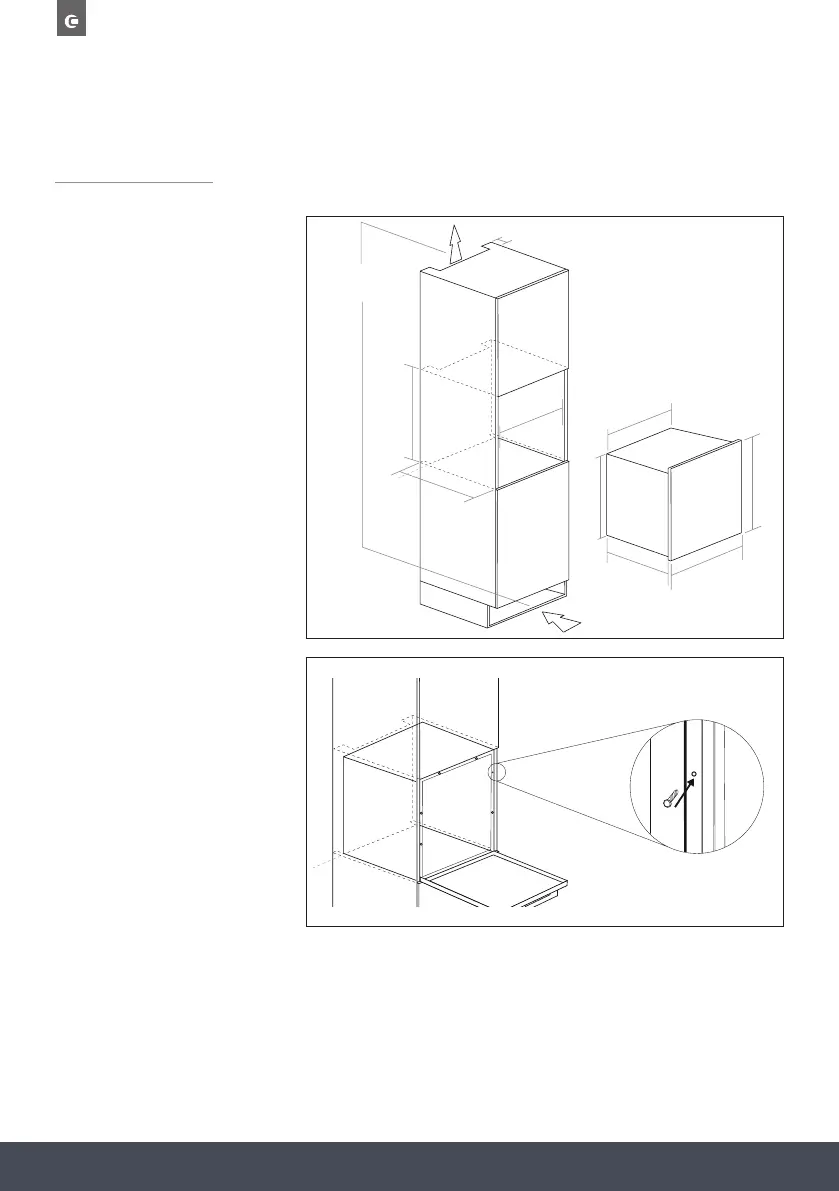

To install the wine cabinet,
place the wine cabinet in
an opening with dimensions
as shown in Fig.1. The wine
cabinet must be placed on a
at stable surface.
600mm
50mm
min 550mm
560mm
50mm
521mm
598mm
585mm
555mm
22mm
595mm
Ventilation
min 200cm² in plinth
Once the wine cabinet is in
place, it can then be xed
into position. Using the 6
xing screws, locate these
into the 6 xing holes on
either side of the wine
cabinet and along the top
rail, and screw into the
carcass (see Fig.2).
FIG 1
VENTILATION
› The ventilated cross section must be at least 200cm2 and the wine cabinet shall be ventilated
from the kitchen plinth.
› The back panel of the carcass the appliance is installed into shall be removed.
› Where the decorative grill is used it must be noted that the total area of the grill opening
corresponding to the ventilation cross section shall not be less than 200cm2.
FIG 2
