HOW TO CHANGE THE DOOR OPENING

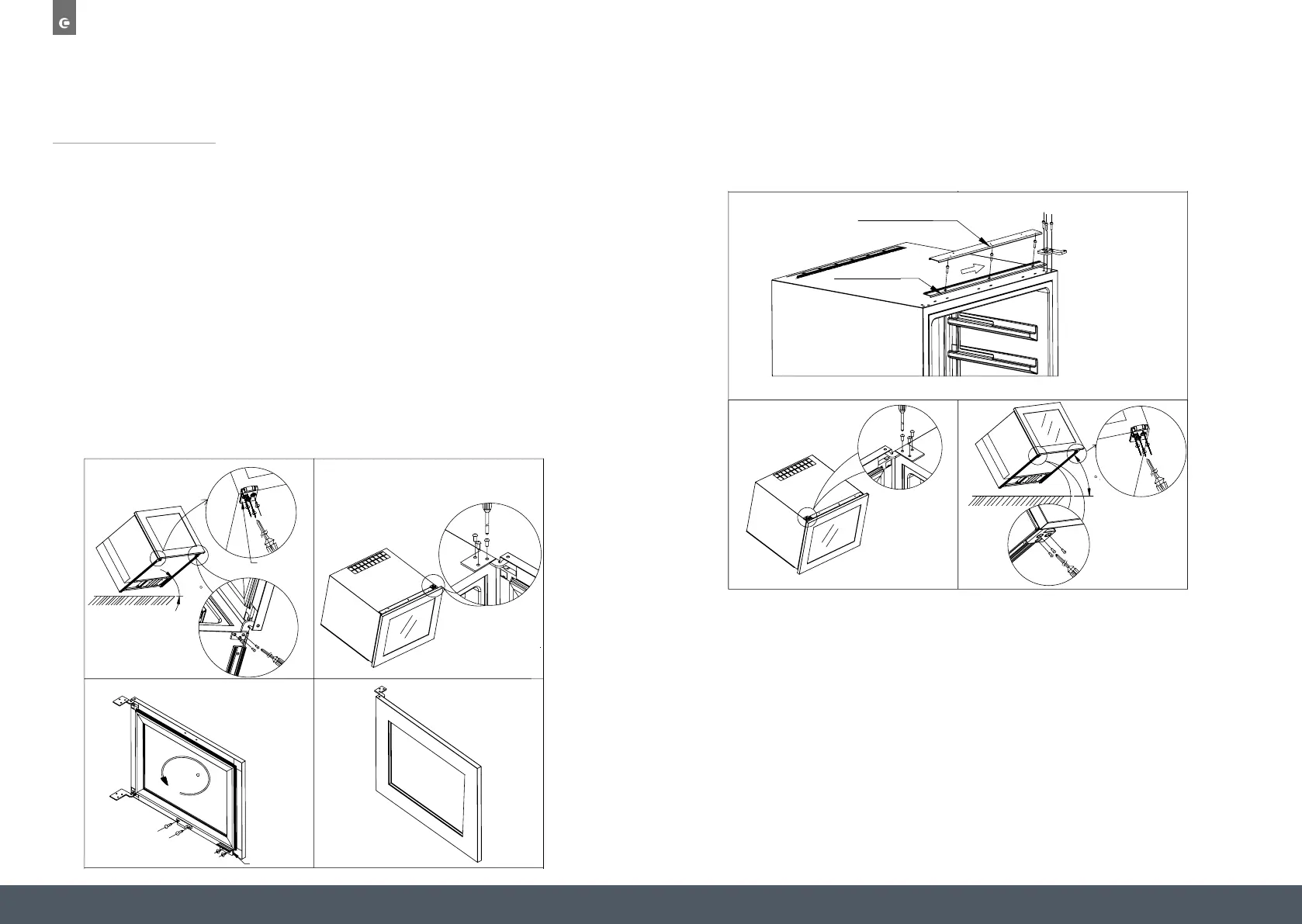

› Incline the wine cooler with 45 degrees, take out right lower hinge’s screws and supports
screws with screwdriver. (Fig.1)
› Level the wine cooler Hold the door and take out right upper hinge’s screws with
screwdriver, then take out the door, put the door safety, unscrew 2 screws at bottom and
remove the magnet, then install at top of frame,and take out the location-plate’s screws
and fix location-plate on the other side, and rotate door at 180 degree.
(Fig.2 & Fig.3 & Fig.4)
› Remove limited block B as per the arrows in picture, then release all the screws on limited
block A, and take away limited block A. Install the limited block A at the right side with
screws, then install limited block B,then fit the door with screws, then fix the support on the
lower right side. (see Fig.5& Fig.6& Fig.7)
NOTE
Once door reversal complete please check and ensure door magnet is at the bottom of door.
