HOW TO CHANGE THE DOOR OPENING

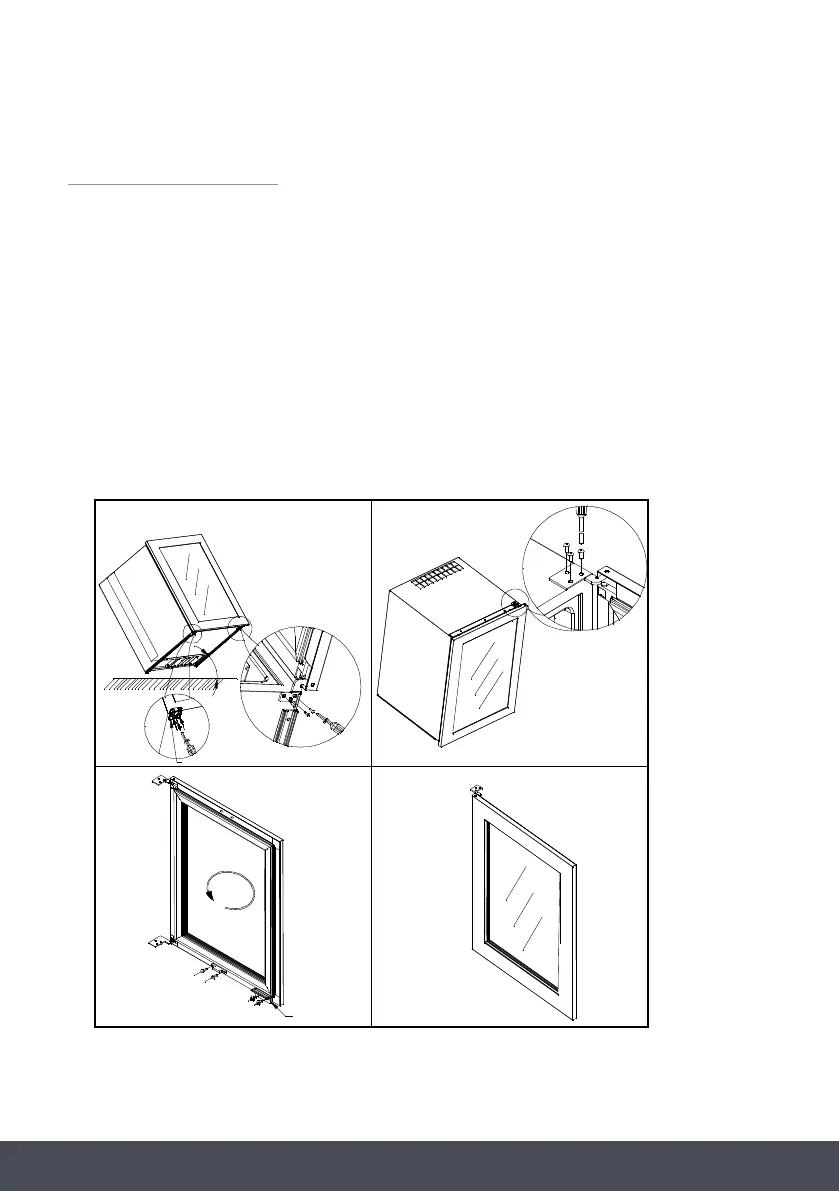

1. Incline the wine cooler with 45 degrees, take out right lower hinge’s screws and supports
screws with screwdriver. (Fig.1)
2. Level the wine cooler. Hold the door and take out right upper hinge’s screws with
screwdriver, then take out the door, put the door down safely, unscrew 2 screws at bottom
and remove the magnet, then install at top of frame,and take out the location-plate’s
screws and fix location-plate on the other side, and rotate door at 180 degree.
(Fig.2 & Fig.3 & Fig.4)
3. Remove limited block B as per the arrows in picture, then release all the screws on limited
block A, and take away limited block A. Install the limited block A at the right side with
screws, then install limited block B,then fit the door with screws, then fix the support on
the lower right side. (see Fig.5 & Fig.6 & Fig.7)
NOTE
Once door reversal complete please check and ensure door magnet is at the bottom of door.
