Instruction manual WDU060, WDU080 & WDU125 7Please keep this instruction manual for future reference
KNOCK/
DRILL OUT
PLUG
2A
RUBBER
HOSE
DISHWASHER
HOSE
*
AIR GAP
*Air gap may not be required for all
installations. Check local plumbing
codes.
DRAIN
DISPOSER
2B

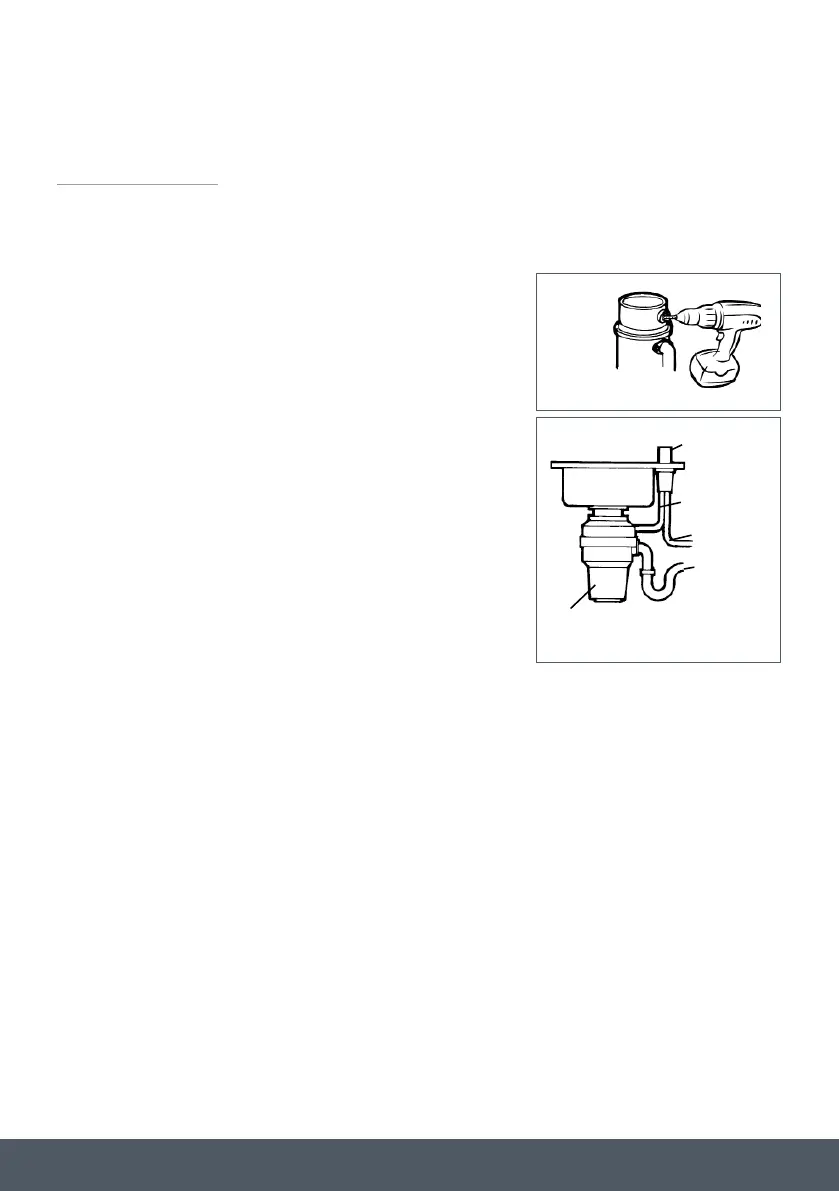

DISHWASHER CONNECTION
If you are utilising a dishwasher, complete the following procedure. If a dishwasher is not to be
connected go on to ‘Installation of mounting assembly’.
› Using a drill, drill out the entire plug, (see 2A). When knock
out plug falls into disposer, you may remove it or grind it up
when the disposer is used. This will not damage the disposer
in any way, but may take some time to grind).
› Connect dishwasher hose (see 2B) using hose clamp. Make
sure all plumbing connections are tight and in accordance
with all plumbing codes and ordinances. Run water and
check for leaks.
