HOW TO CHANGE THE DOOR OPENING
This appliance has reversible doors but is delivered with a right hinged door. The left hand
hinge kit comes with the unit (in the box), should you wish to reverse the hinge on your unit
follow the directions below:
1. Rubber Cover
2. Screw
3. Decorative Cover
4. Screw
5. Top hinge
6. Door
7. Screw
8. Bottom Hinge
9. Cabinet Leg

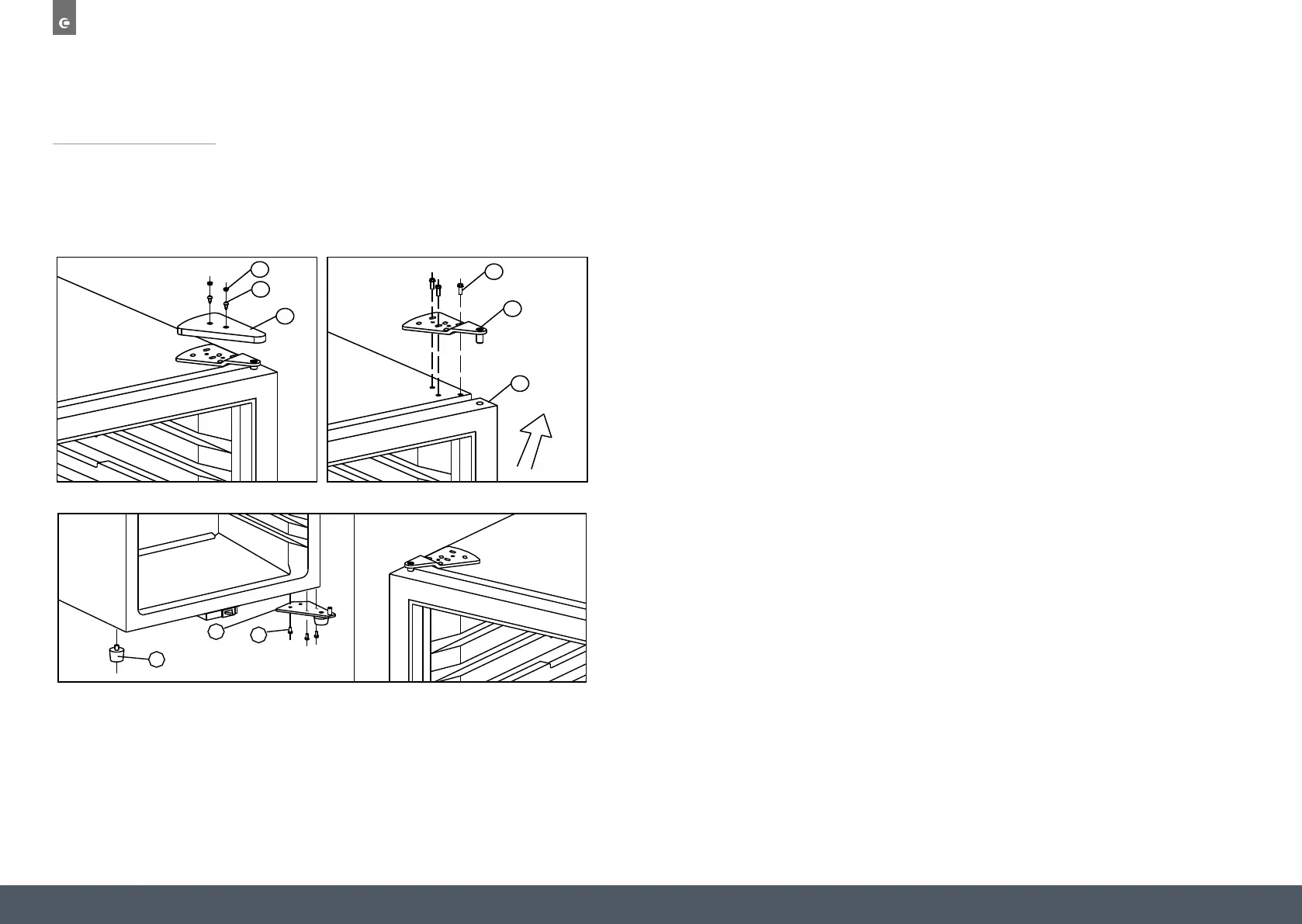

1. Uninstall the decorative cover by pulling out the rubber covers and removing the screws
(fig. A).
2. While holding the door firmly, loosen and remove the top hinge. Lift up and remove the
door (fig. B).
3. Unscrew the lower hinge (8).
4. Remove the cabinet leg (9) on the left side and move it to the right side (fig. C).
5. Install the lower hinge on the left side of the cabinet and fix with screws (7).
6. Rotate the door by 180 degrees and install the door on the lower hinge (8) the same way
it was removed.
7. Fix the top hinge with the screws.
8. Fix the decorative hinge cover and rubber screw covers.
