Instruction manual WMi4001
Please keep this instruction manual for future reference

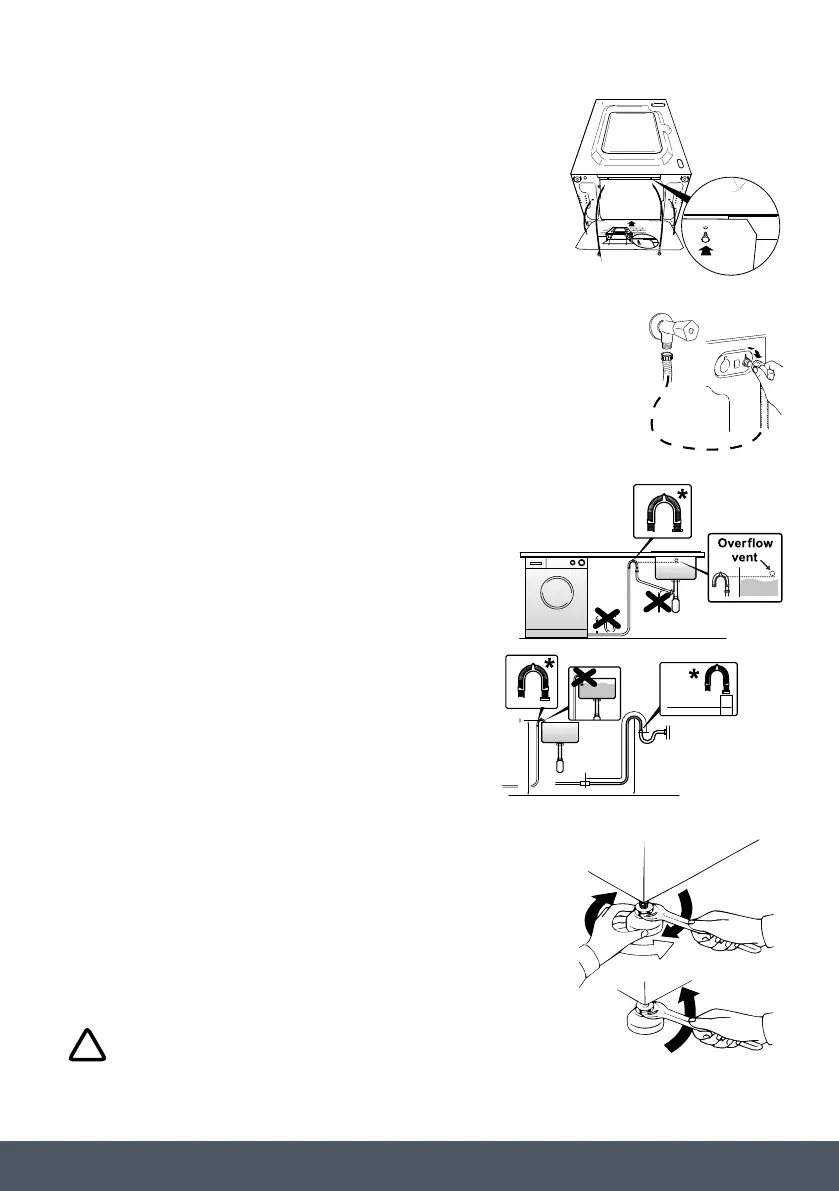

SOUNDPROOFING SHEET
Place the corrugated sound-proofing sheet, found on top of the
appliance during the unpacking process, into the base of the
appliance as shown.
CONNECT INLET PIPE
Connect the inlet pipe to the water supply tap only using the pipe
supplied with the appliance (do not reuse old pipe-sets).
The washing machine should be installed in its final position such
that the inlet pipe is not kinked or trapped.
INSTALL DRAIN HOSE
The corrugated drain hose should be inserted into
suitable drain pipe of between 50cm and 85cm
height above the floor using the curved drain
hose support. If an under sink connection is used
the drain hose must be routed above the sink
overfill opening to prevent back siphoning. Care
must be taken to avoid kinking or trapping the
drain hose.
ADJUST LEGS
Level the appliance using the feet:
1. Turn the nut clockwise to release the screw.
2. Rotate the foot to raise or lower it until it touches to the floor.
3. Lock the foot, screwing in the nut, until it tightens against to
the bottom of the washing machine.
Plug in the appliance.
WARNING:
Contact Caple Service should the power cord need replacement.
Installation faults are not covered by the manufacturers warranty.
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 50 cm
max 85 cm
2,5 mt
max
max 100 cm
* ACCESSORY SOLD SEPARATELY
