Caple WMI4001 - Built in Installation

12 Instruction manual WMi4001 Please keep this instruction manual for future reference

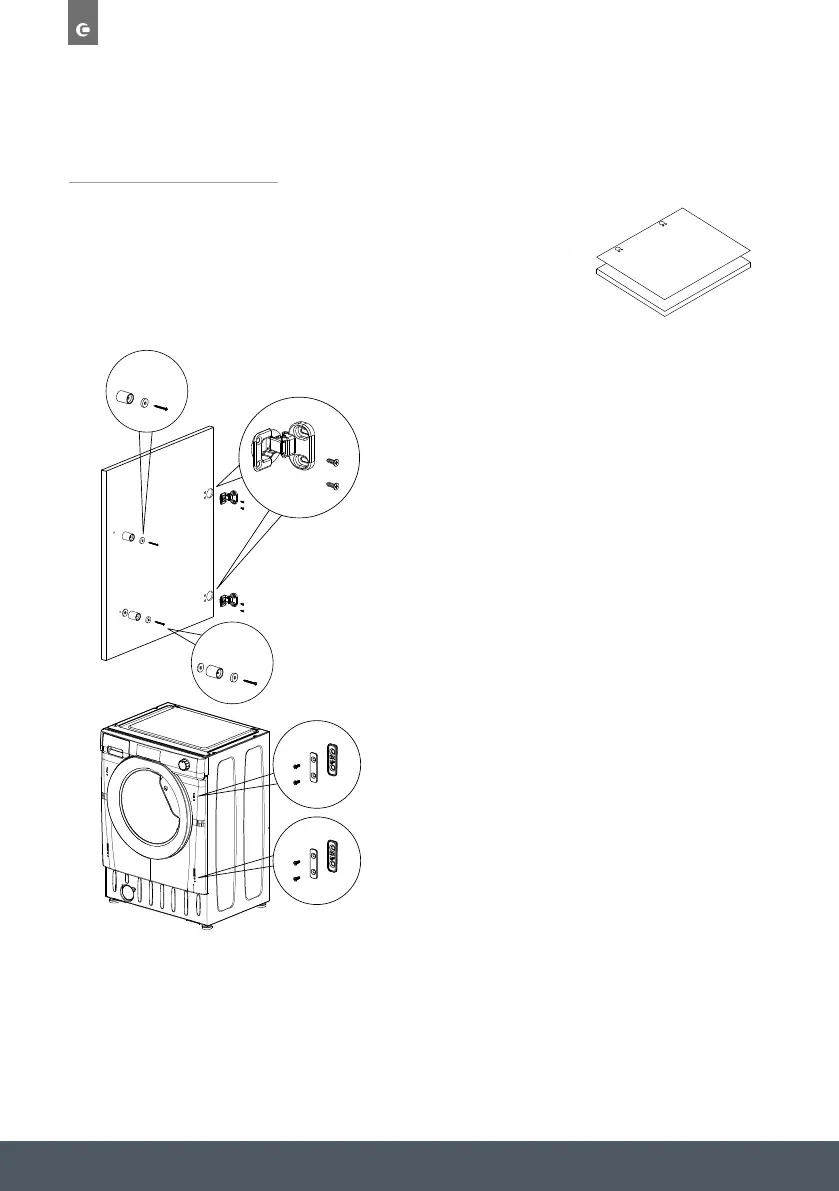

BUILT IN INSTALLATION
Position the template onto the reverse of the furniture door. It is
possible to mount the hinges and closure magnet on the right or
left-hand side depending on your requirements. Mark the screw
hole positions, then drill out these positions.
› Fix the hinges in place with the 4 screws
provided (1)
› Fix the magnet (2) in place using a screw (3)
› If necessary, use the gasket (4) to adjust and
achieve the appropriate assembly (down side)
› Mount the plate (5) on the right or left-
hand side, depending on your installation
requirements.
› Place the plastic support (6) under the plate
and fix it in position with screw (7)
4
5
6
5
6
7
Instruction manual WMI4000 Please keep this instruction manual for future reference12
1
4
7
2
3
1
2
3
1
3
BUILT IN INSTALLATION
Position the template onto the reverse of the furniture door.
It is possible to mount the hinges and closure magnet on the
right or left-hand side depending on your requirements. Mark
the screw hole positions, then drill out these positions.
» Fix the hinges in place with the 4 screws
provided (1).
» Fix the magnet (2) in place using screw (3).
»
Mount the plate (5) on the right or left-hand side,
depending on your installation requirements.
»
Place the plastic support (6) under the plate and
fix it in position with screw (7).
WARNING:
Contact Caple Service should the power cord need replacement.
Installation faults are not covered by the manufacturers warranty.
» If necessary, use the gasket (4) to adjust and
achievethe appropriate assembly (down side).
4
2
3
3
4
5
6
5
6
7
4
5
6
5
6
7
Instruction manual WMI4000 Please keep this instruction manual for future reference12
1
4
7
2
3
1
2
3
1
3
BUILT IN INSTALLATION
Position the template onto the reverse of the furniture door.
It is possible to mount the hinges and closure magnet on the
right or left-hand side depending on your requirements. Mark
the screw hole positions, then drill out these positions.
» Fix the hinges in place with the 4 screws
provided (1).
» Fix the magnet (2) in place using screw (3).
»
Mount the plate (5) on the right or left-hand side,
depending on your installation requirements.
»
Place the plastic support (6) under the plate and
fix it in position with screw (7).
WARNING:
Contact Caple Service should the power cord need replacement.
Installation faults are not covered by the manufacturers warranty.
» If necessary, use the gasket (4) to adjust and
achievethe appropriate assembly (down side).
4
2
3
3
4
5
6
5
6
7
