4
Hood Overview
This hood is equipped with features such as a built in modulating fan, hood lights, and an electronic display
(HMI). A wrapper assembly is available as an accessory item.
Hood comes with a factory installed 10” round, 4” tall flanged riser.
Size 30”/36” hoods are equipped with 2 lights. Size 48” hoods are equipped with 3 lights. Size 60”/72”
hoods are equipped with 4 lights.
Always install an Uninterruptible Power Supply (UPS), purchased separately, when installing the hood.
This will allow the hood to operate in the event of a power outage.
A 10” round backdraft damper is available. This damper can slide into a 10” round duct, secure damper to
duct using sheet metal screws.

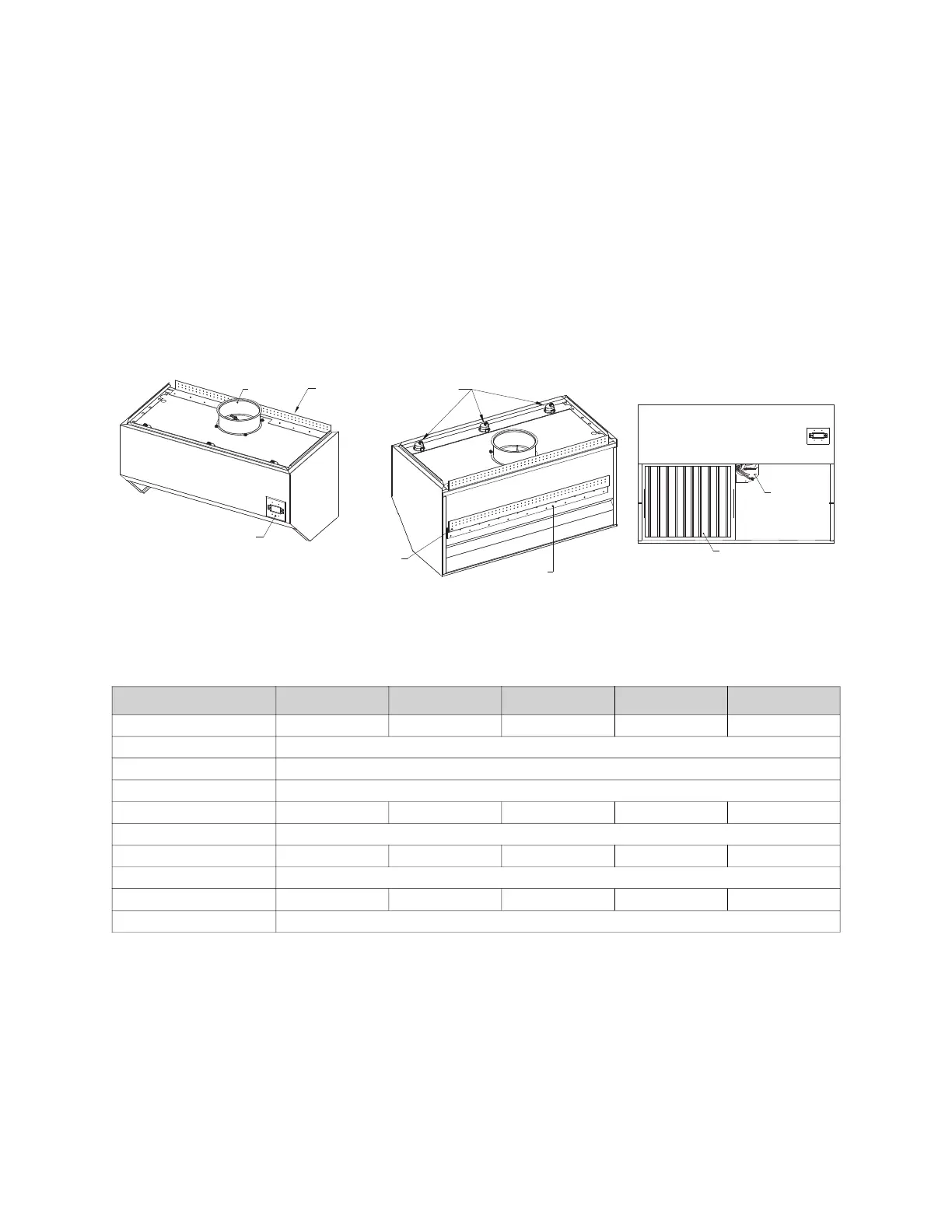

Figure 1 - Hood Overview
Specifications
NOTE: Only for use with residential appliances.
5. Ensure the application is within the specified constraints of the hood.
6. Verify the location you are installing the hood meets proper clearances.
7. Failure to use specified filters will void warranty.
8. Heat generated by the electric appliance must be included in HVAC calculations.
Light Bulb Replacement
Order part number LED-PL35-DIM for replacement bulbs.
Table 1 - Specifications
Description WRH-30 WRH-36 WRH-48 WRH-60 WRH-72
Hood Length 30” 36” 48” 60” 72”
Max/Min CFM 800/250
Electrical 120 Volt – 1 Phase – 60 Hz – MCA 15 Amps – MOCP 15 Amps
Duct Diameter 10 in.
Number of LED Lights 2 2 3 4 4
Filter Type Captrate Solo Filter or Standard Baffle
Number of Filters 1 2 2 3 4
Decibels 71 dB @ 790 CFM
Hood Weight 125 lbs. 135 lbs. 155 lbs. 175 lbs. 195 lbs.
Depth 24 in.
Hood Top
Mount Plate
Riser
HMI
Hood
Lights
Hood Bottom
Mount Cleat
Wall Mount
Cleat
In-Built
Fan
Filter
