Hood Installation
The optional wrapper accessory is not compatible with WRH-T hoods. If a wrapper is required, you
must use a WRH hood. For WRH-T hoods, install a facade to hide open areas of the hood. Kitchen wall
cabinet heights may vary. The recommended hood distance from the floor to the bottom of the hood is
64" Above Finished Floor (AFF). If the recommended hood distance cannot be met, verify the bottom of
the hood is flush with the bottom of the cabinets.

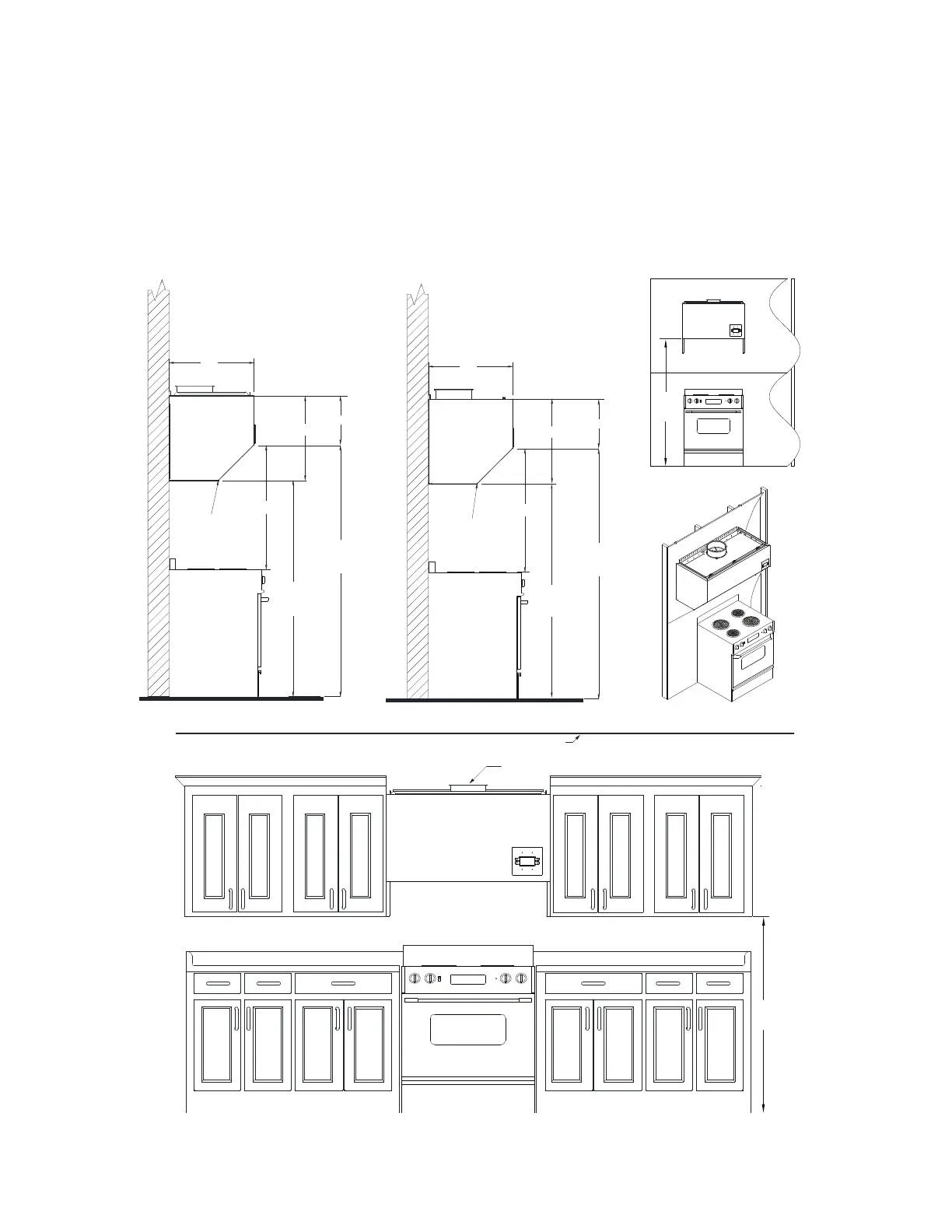

Figure 2 - Hood Installation Details
Hood Installation with Cabinets
WRH-T
24"
27" Min
WRH
54" Nom.
Above Finished
Floor (AFF)*
24"
Level With Bottom
of Cabinets
64” Nom.
Above Finished
Floor (AFF)*
27" Min
Level With Bottom
of Cabinets
54" Nom.
Above Finished
Floor (AFF)*
64” Nom.
Above Finished
Floor (AFF)*
64”
AFF*
14” Nom.
24”
14” Nom.
24”
Equipment
by Others
Equipment
by Others
* Recommended dimensions may vary because
of existing cabinet location.
* Recommended dimensions may vary because
of existing cabinet location.
Bottom of Hood
Flush with Cabinets
54”
AFF*
* Recommended dimensions may vary because of existing cabinet location.
Ceiling - Typical 8 ft or 9 ft AFF
Ductwork provided by others
