The recommended hood distance from the floor to the bottom of the hood is 64" Above Finished Floor
(AFF).

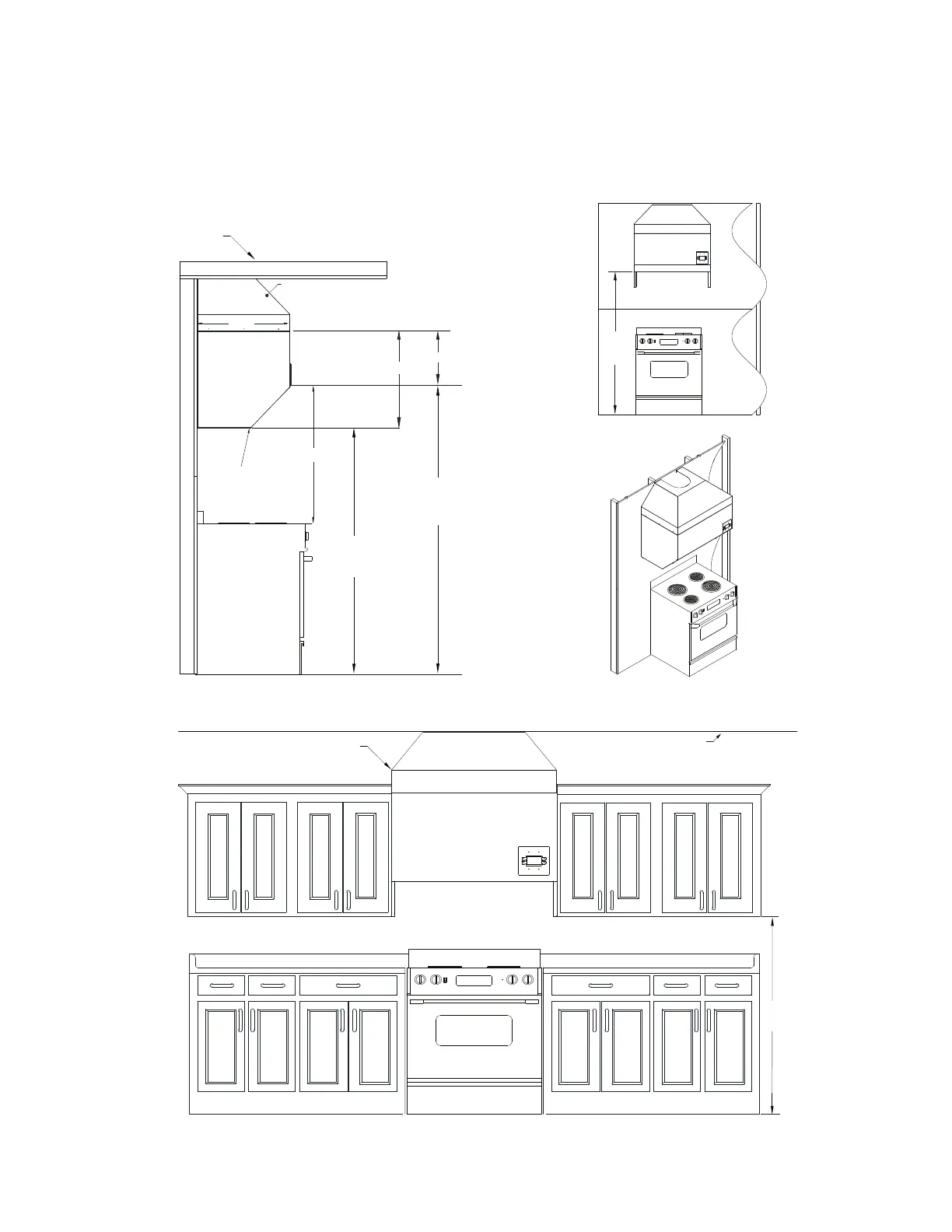

Figure 4 - Decorative Wrapper Installation Details
Hood and Decorative Wrapper Installation with Cabinets
64”
AFF*
54” Nom.
Above Finished
Floor (AFF)*
Equipment
by Others
Ceiling
Wrapper
(Optional)
64” Nom.
Above Finished
Floor (AFF)*
24"
27" Min
Level with Bottom
of Cabinets
14” Nom.
24”
* Recommended dimensions may vary because
of existing cabinet location.
Bottom of Hood
Flush with Cabinets
54”
AFF*
Wrapper
(Optional)
* Recommended dimensions may vary because of existing cabinet location.
Ceiling - Typical 8 ft or 9 ft AFF
