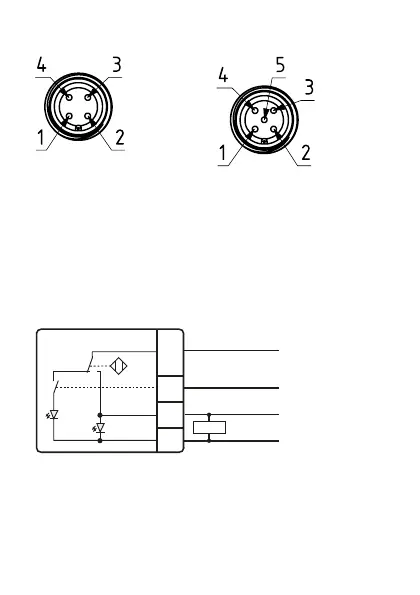

CHT3-_8_ …
Plug M12, 4-pin
CHT3-_8_ …
Plug M12, 5-pin
Strands
CHT3-_7_ …
200 mm single strands with wire end ferrules
Wire end ferrules with plastic collars DIN 46228
Wire cross-section strands 0.25 mm
2
Connection plan
PNP-NO, 4-pin
+VDC
+VDC / LED1
PNP-NO
0V
3
4
2
1
LED1
LED2
brown
white
black
blue
Load
