Gate can be mounted at angles up to 30 degrees.

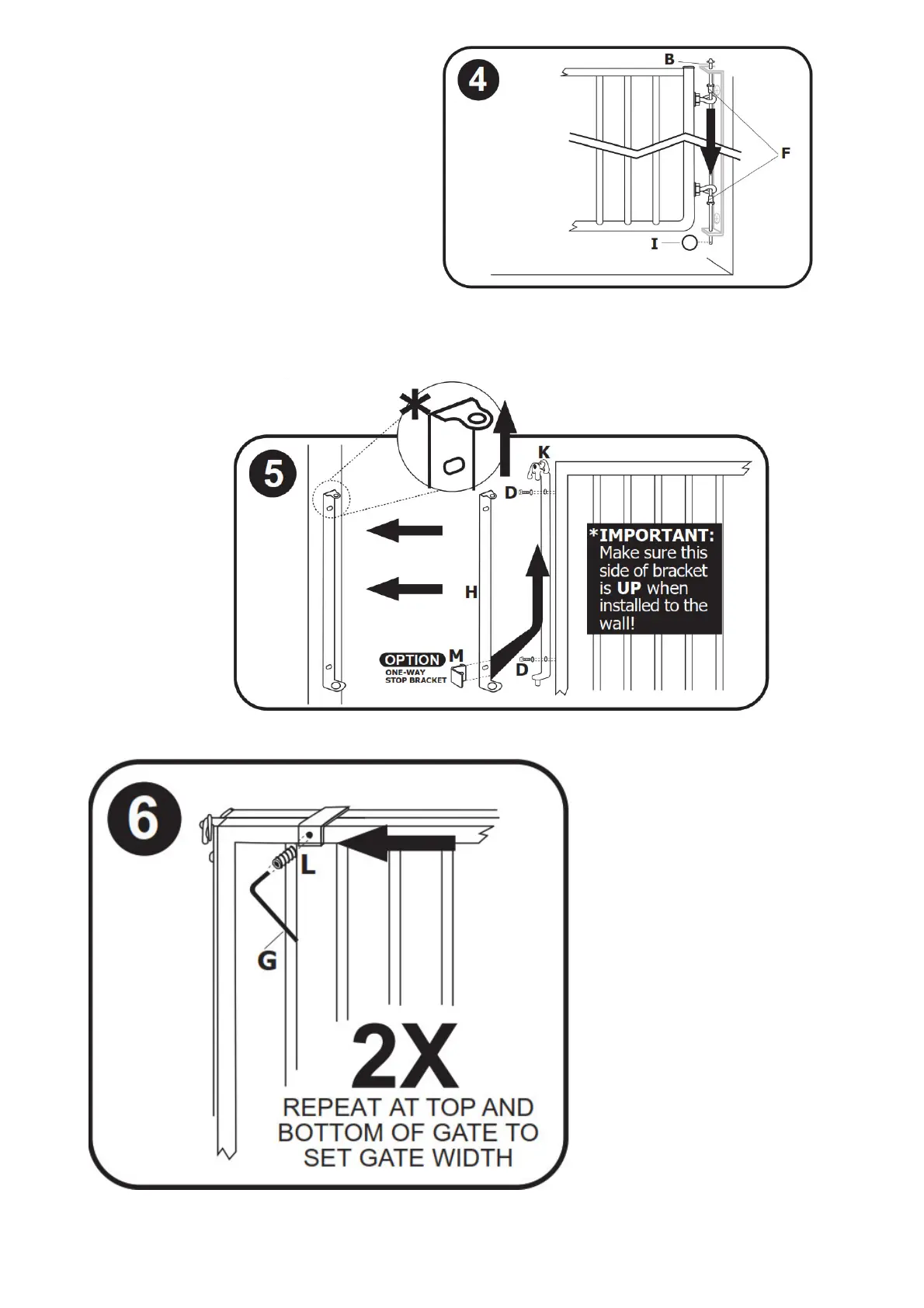

5. Mount latch assembly (K) to gate using 3/4” bolts with serrated washers ( D). Attach a wall mount for latch
assembly (H) up into part (K) that is now secure on the gate. Slide gate out to mark holes for (H) on attaching
wall. (*OPTIONAL ONE WAY BRACKET INSTALLED HERE) Then attach the wall mount of latch assembly to
the wall using Phillips head screws (C). Optional long screws (J) maybe be used to attach the gate to the stud
through the drywall.
6. Keep gate closed and latched. Use Allen wrench ( G) to insert set screws ( L) in the upper and lower brackets of
the gate. Tighten the set screws to set the width of the gate.
Need help installing your SS-30OD?
Use your smartphone to scan the QR code on right for the “How to” video.
