- 7 -

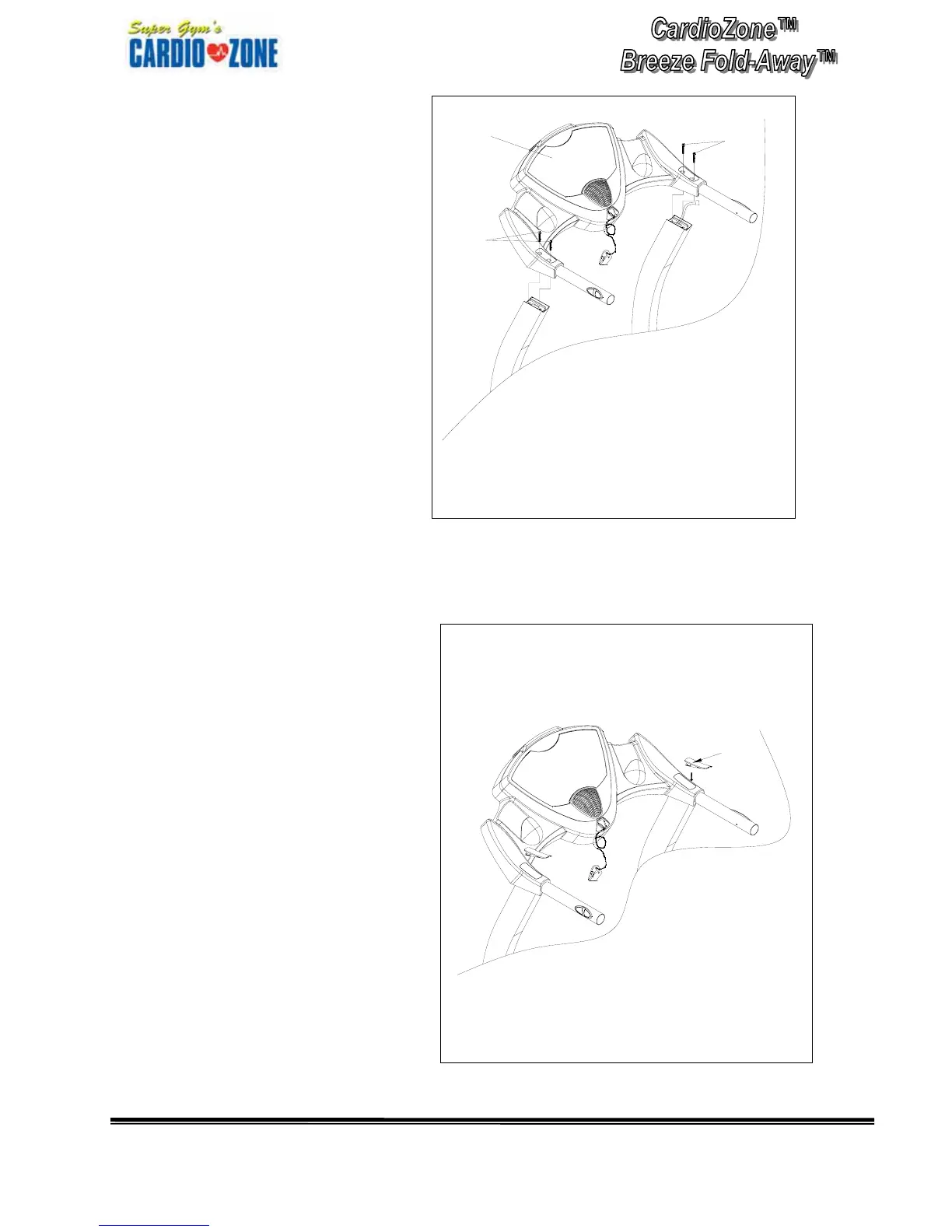

4. After the Left and Right Uprights are
tightened, pull the Control Wire which
has been threaded into Uprights out of the
month of the Uprights. Put the Computer
Console (A) above the Upright. Then
connect the control wire of the Frame
with the one in Computer Console (A).
After connecting, tighten with Allen Bolt
(c) according to right picture.
Ps.1. To avoid unexpected accident, always
assemble the treadmill with an assistant,
do not assemble by oneself.
Ps.2. When tighten the screws, make sure not to
damage the control wires in the tube.
A
c
c
5. After the above steps are finished, cap the
Handrail Cover (E) onto the Handrail.
E
