WIRING AN ADDITIONAL EXTEND/RETRACT SWITCH
This section is for wiring an additional EXTEND/RETRACT switch.
The switch must be momentary on, single
pole, double throw, center OFF
(Momentary ON – OFF – Momentary ON).
1. Route wires for the second switch to the
main switch location. Wires should be a
minimum 18awg.
2. Splice the wires in parallel with the
E
XTEND/RETRACT switch wires from the
switch cable. Pin 1 of the additional
switch should go to pin 1 of the main
patio switch etc.
ATTACH THE LABEL
After completing and testing the system, attach the Direct Response identification label to the bottom of the
motor arm.
1. Thoroughly clean and dry the area at the bottom of the RH (motor) arm.
2. Remove the release paper and attach the "DR" label in the area shown
between the Carefree logo and the top of the plate.

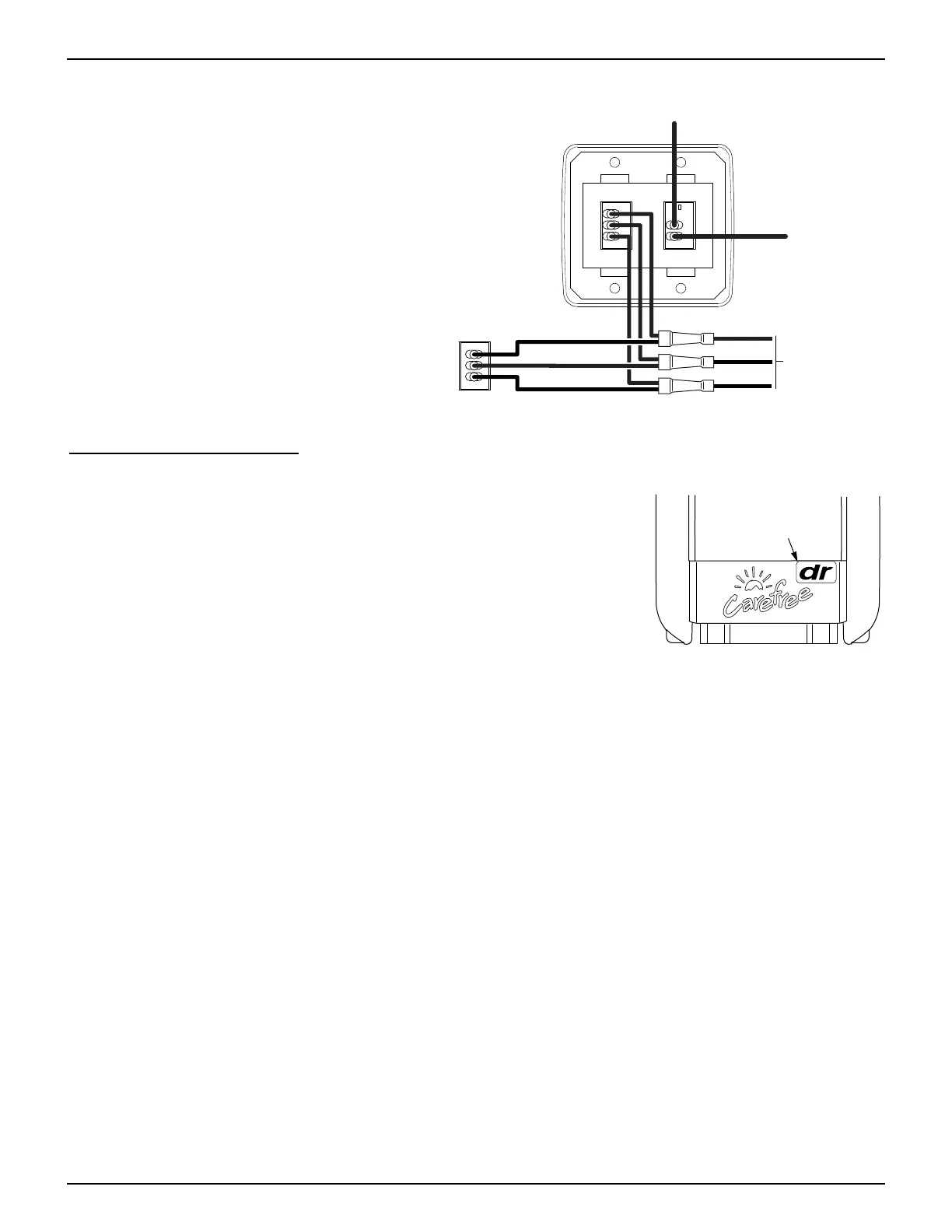

Gray
Yellow
Brown
On/Off
Extend/Retract
Switch Cable
Rear View of
Switch Assy
LCDR003b
Gray
Yellow
Brown
Additional
Extend/Retract
Switch
LCDR006
Place DR Label
