Carel µC2SE

21
2 2
1 1
3
3
4
5
6
7
8
9
10
11 1
5
6
7
22 2
2
1
3
4
5
6
7
8
9
ENGLISH
µC
2
SE - +030220426 - rel. 2.0 - 03.08.2009
Fig. 3.h.b
Fig. 3.i.a

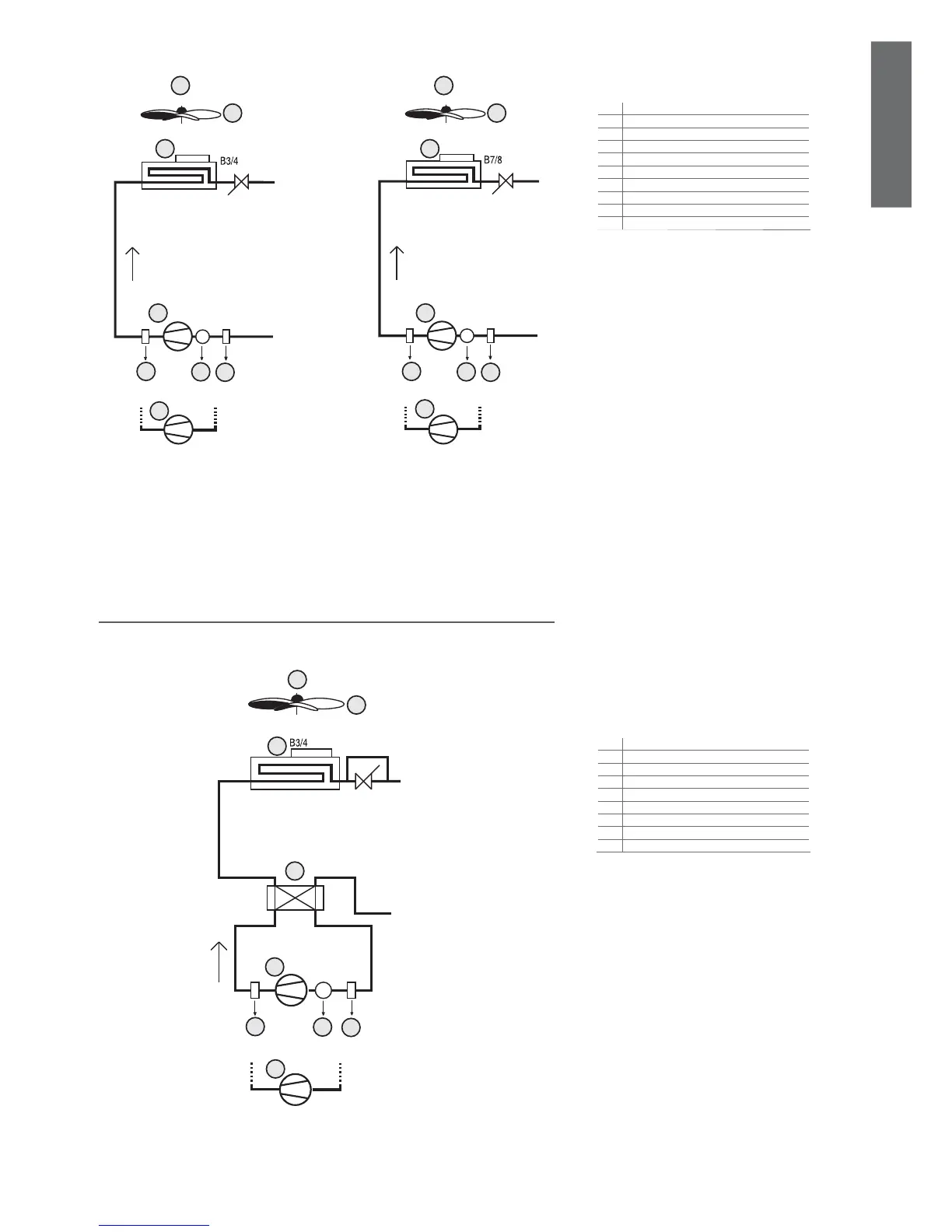

3.8.2 Two circuits
3.9 Reverse-cycle air-cooled condensing unit
3.9.1 Single circuit
Key:
1 condenser fan overload
2 fan
3 condenser probe
4 compressor 1
5 high pressure 1 and 2
6 compressor overload 1 and 2
7 low pressure 1 and 2
8 compressor 2
9 compressor 3
10 compressor 4
Key:
1 condenser fan overload
2 fan
3 condenser probe
4 compressor 1
5 high pressure
6 compressor overload
7 low pressure
8 compressor 2
9 reversing valve
