Carel pCO2 Series

S&2ð
cod. Carel +030221826 rel. 2.0 dated 03/10/02
24
 &RQQHFWLQJWKHGLJLWDOLQSXWV
The pCO
2
features up to 18 digital inputs for connecting safety devices, alarms, device status, remote triggers. These inputs are
all optically-isolated. They can work at 24Vac, 24Vdc and some at 230Vac.

:$51,1*: separate the probe signal and digital input cables as much as possible from the inductive load and power cables, to
avoid possible electromagnetic disturbance.
   'LJL WD OLQSXW VSR Z HUHGDW9DF
24 Vac
G
G0
G
G0

)LJ

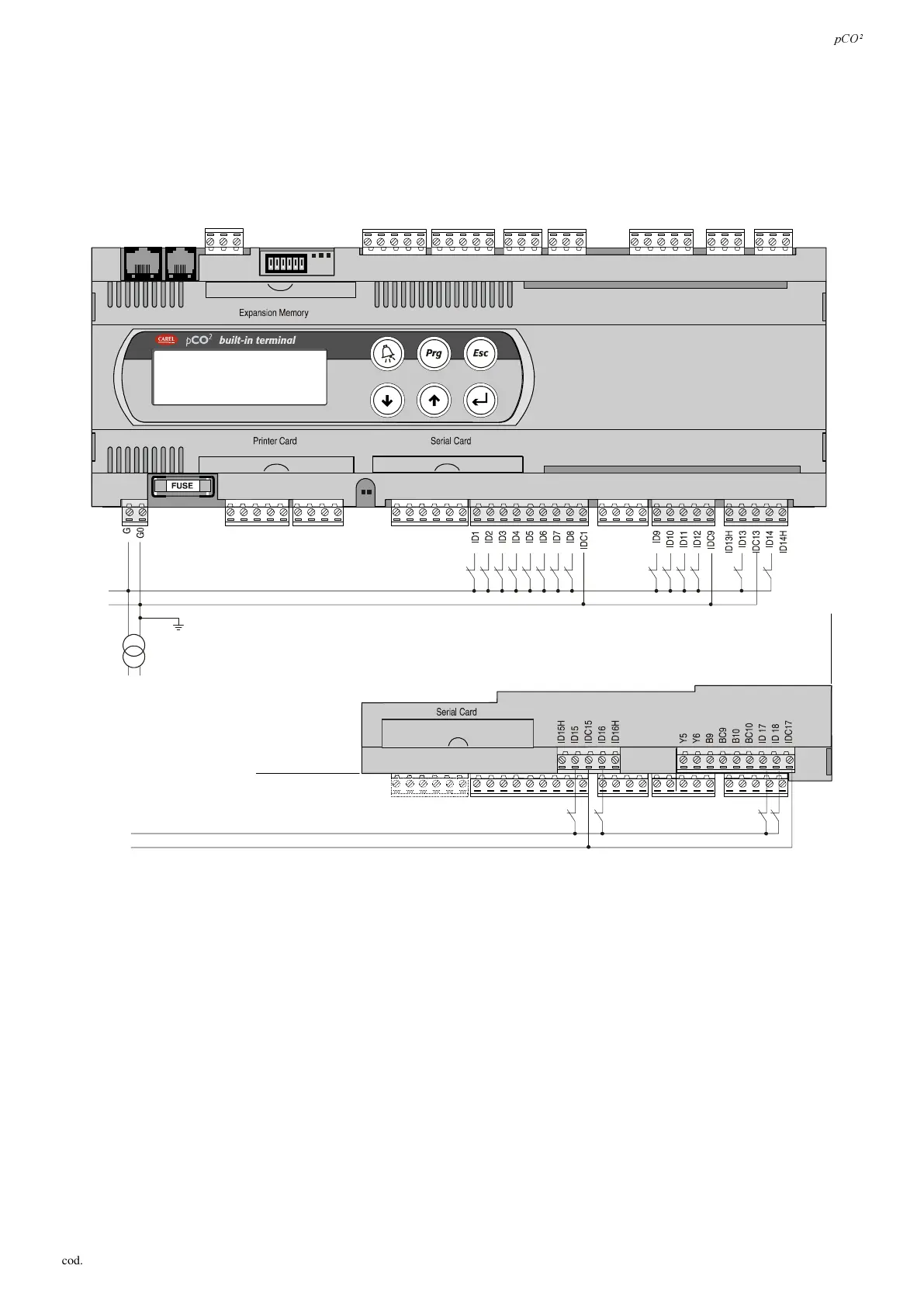

The following figure represents one of the more common connection diagrams for the 24Vac digital inputs.
