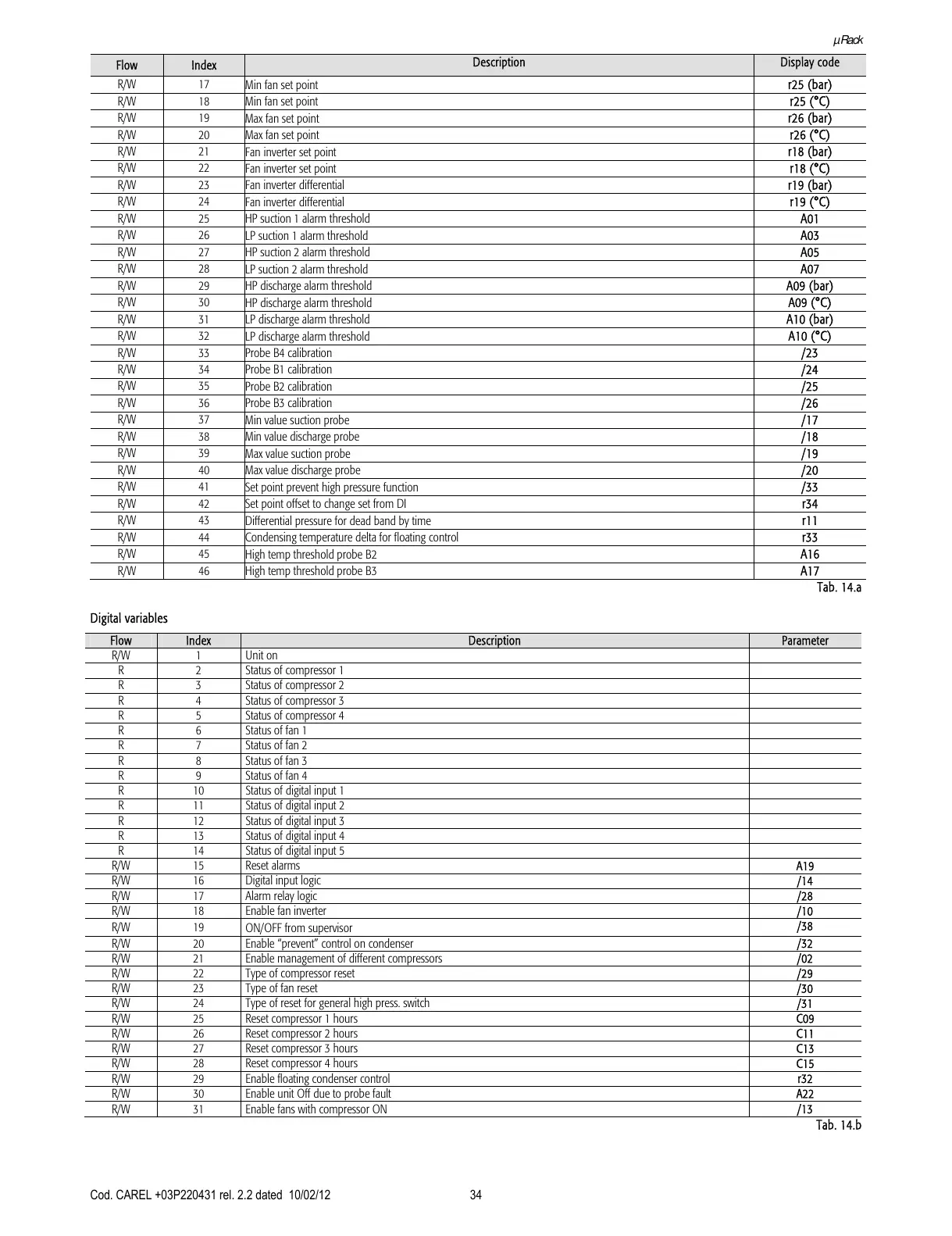

µRack
Cod. CAREL +03P220431 rel. 2.2 dated 10/02/12
34
Flow Index
Description Display code
R/W 17
Min fan set point
r25 (bar)
R/W 18
Min fan set point
r25 (°C)
R/W 19
Max fan set point
r26 (bar)
R/W 20
Max fan set point
r26 (°C)
R/W 21
Fan inverter set point
r18 (bar)
R/W 22
Fan inverter set point
r18 (°C)
R/W 23
Fan inverter differential
r19 (bar)
R/W 24
Fan inverter differential
r19 (°C)
R/W 25
HP suction 1 alarm threshold
A01
R/W 26
LP suction 1 alarm threshold
A03
R/W 27
HP suction 2 alarm threshold
A05
R/W 28
LP suction 2 alarm threshold
A07
R/W 29
HP discharge alarm threshold
A09 (bar)
R/W 30
HP discharge alarm threshold
A09 (°C)
R/W 31
LP discharge alarm threshold
A10 (bar)
R/W 32
LP discharge alarm threshold
A10 (°C)
R/W 33
Probe B4 calibration
/23
R/W 34
Probe B1 calibration
/24
R/W 35
Probe B2 calibration
/25
R/W 36
Probe B3 calibration
/26
R/W 37
Min value suction probe
/17
R/W 38
Min value discharge probe
/18
R/W 39
Max value suction probe
/19
R/W 40
Max value discharge probe
/20
R/W 41
Set point prevent high pressure function
/33
R/W 42
Set point offset to change set from DI
r34
R/W 43
Differential pressure for dead band by time
r11
R/W 44
Condensing temperature delta for floating control
r33
R/W 45
High temp threshold probe B2
A16
R/W 46
High temp threshold probe B3
A17
Tab. 14.a
Digital variables
Flow Index Description Parameter
R/W 1 Unit on
R
2 Status of compressor 1
R
3 Status of compressor 2
R
4 Status of compressor 3
R
5 Status of compressor 4
R
6 Status of fan 1
R
7 Status of fan 2
R
8 Status of fan 3
R
9 Status of fan 4
R
10 Status of digital input 1
R
11 Status of digital input 2
R
12 Status of digital input 3
R
13 Status of digital input 4
R
14 Status of digital input 5
R/W 15 Reset alarms
A
19
R/W 16 Digital input logic /14
R/W 17 Alarm relay logic /28
R/W 18 Enable fan inverter /10
R/W 19
ON/OFF from supervisor
/38
R/W 20 Enable “prevent” control on condenser /32
R/W 21 Enable management of different compressors /02
R/W 22 Type of compressor reset /29
R/W 23 Type of fan reset /30
R/W 24 Type of reset for general high press. switch /31
R/W 25 Reset compressor 1 hours C09
R/W 26 Reset compressor 2 hours C11
R/W 27 Reset compressor 3 hours C13
R/W 28 Reset compressor 4 hours C15
R/W 29 Enable floating condenser control r32
R/W 30 Enable unit Off due to probe faul
t
A
22
R/W 31 Enable fans with compressor ON /13
Tab. 14.b
