Aluminum Hitch-Mounted
Bike Carrier Item# 9029869
Assembly Instructions

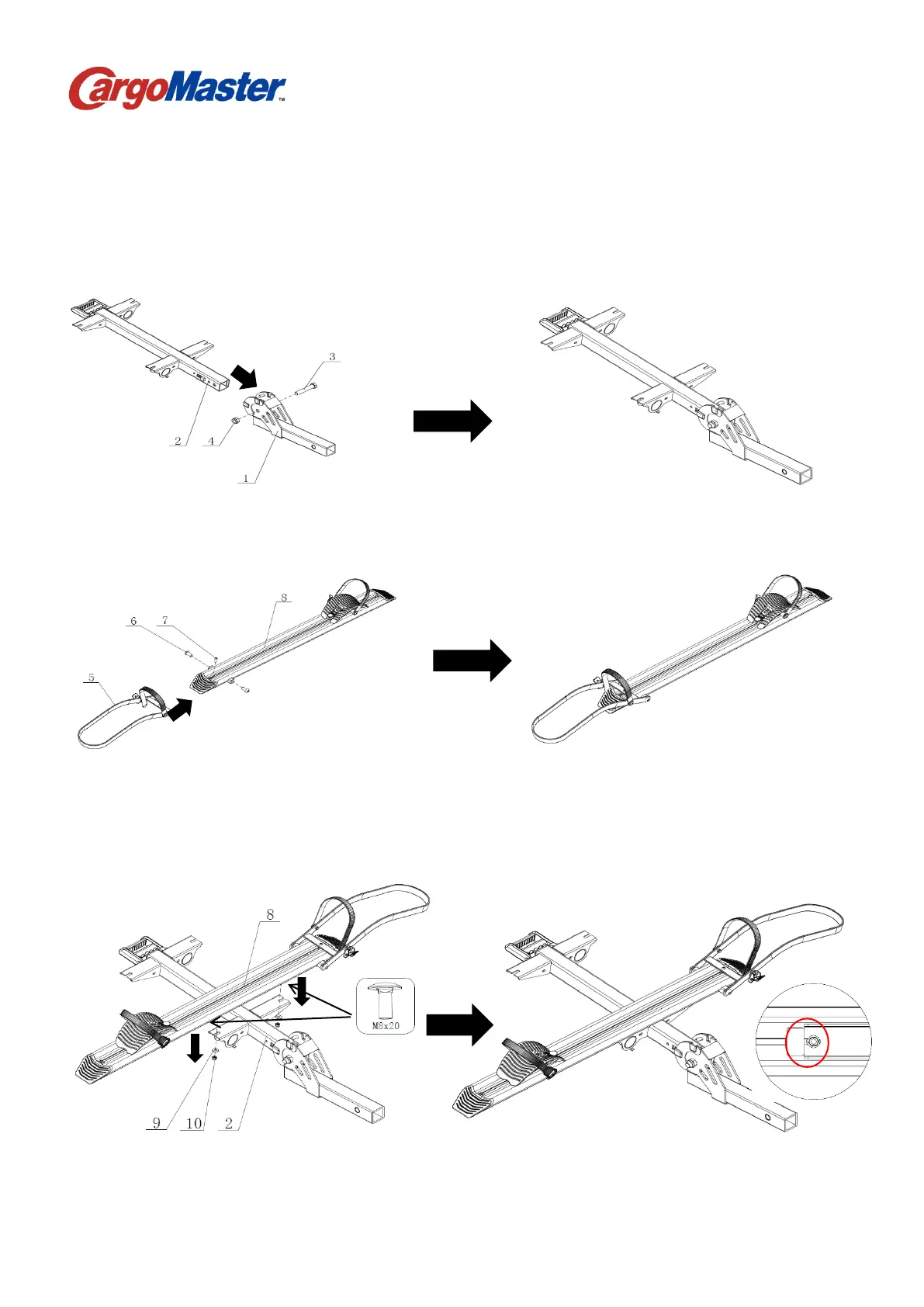

Step 1: Align the holes on the supporting tube (2) and folding connector (1), then connect the two parts
by inserting the M16*85 hexagon bolt (3) through the holes. Secure the bolt in place by screwing on the
M16 lock nut (4). CAUTION: To ensure the rack will fold smoothly, do not overtighten the lock nut. (We
recommend tightening to 80% tightness.)
Step 2: Align the front wheel fixing base (5) with the hole position of the beam assembly (8), install
M12*25 screws (6) on both sides, and install M6*20 screws on the top, and ensure that they are
tightened.
Step 3: Install a crossbeam (8) on the supporting tube (2) closest to the folding connector, making sure
the crossbeam is centered on the supporting tube. Locate the M8*20 carriage bolts in the crossbeam
and align each of them with a slot in the supporting tube. Place φ8 Flat Washers (9) below the
supporting tube and secure the bolt and washer in place with M8 lock nuts (10). Be sure to fully tighten
the lock nut.
Two M8*20 carriage bolts are
pre-installed in the crossbeam.
Note: The rectangular plate at the bottom of the
beam assembly needs to be pushed to assembly
2 to ensure that the beam assembly is centered.
