Aluminum Hitch-Mounted
Bike Carrier Item# 9029869

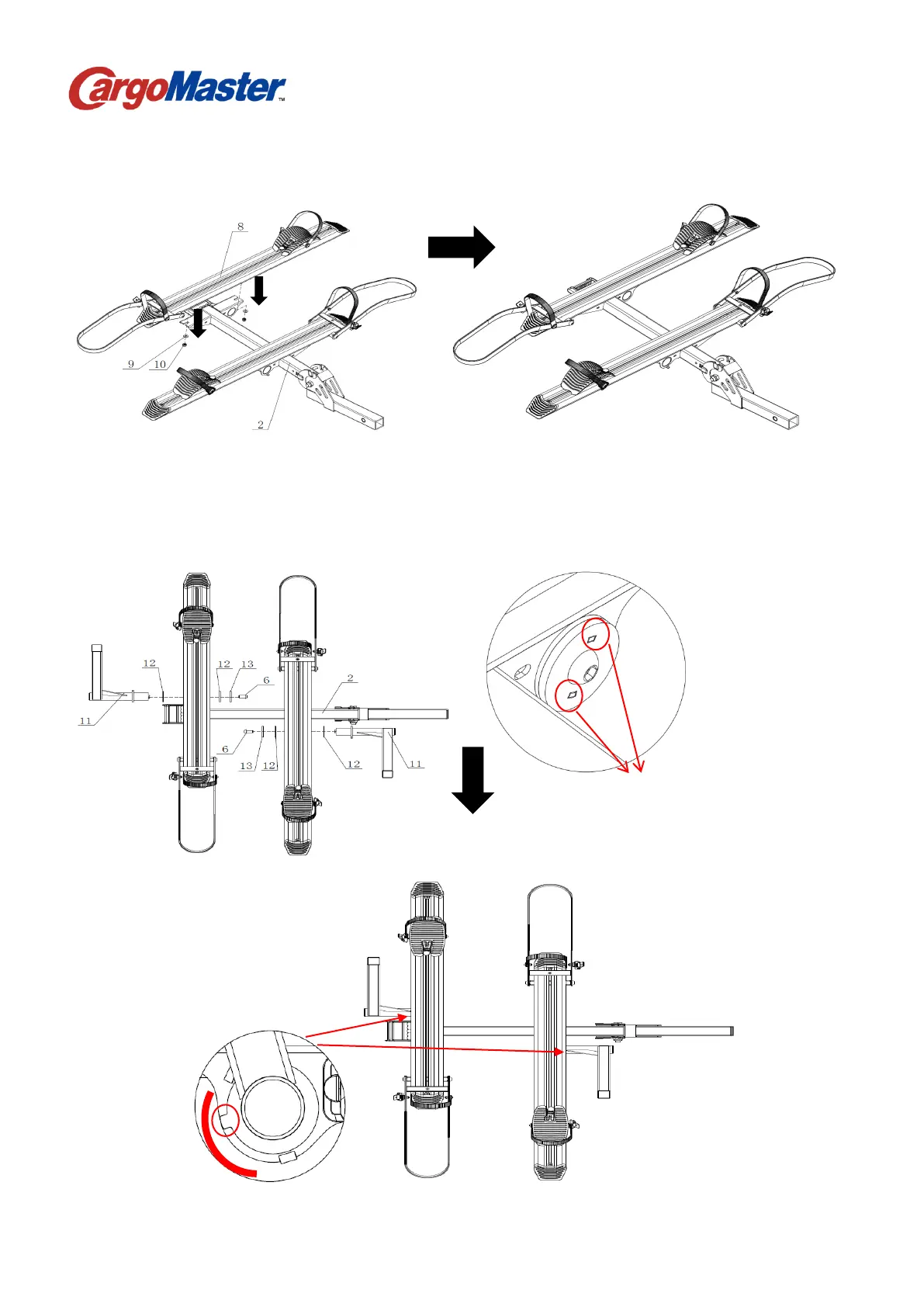

Step 4: Install the other crossbeam (8) on the supporting tube (2), farthest from the folding connector.
Follow the steps outlined in Step 2.
Step 5: Align the adjusting tube assembly (11) with the round hole in the middle of the assembly (2),
adjust the tube assembly (11), plastic round gasket (12), Supporting Tube (2), plastic round gasket (12),
open round gasket (13), M12*25 hexagon socket flat round head screws (6) in order, and tighten them.
Note: the installation direction of the adjusting tube assembly (11) is as shown in the figure below.
Note: The open circular gasket
(13) should be assembled flush
with the two bosses of the
adjusting tube assembly (11).
Note: The convex head with
convex disc in assembly (11)
shall be installed in the middle
of two rectangular bosses in
assembly 2 and on the outside.
