Aluminum Hitch-Mounted
Bike Carrier Item# 9029869

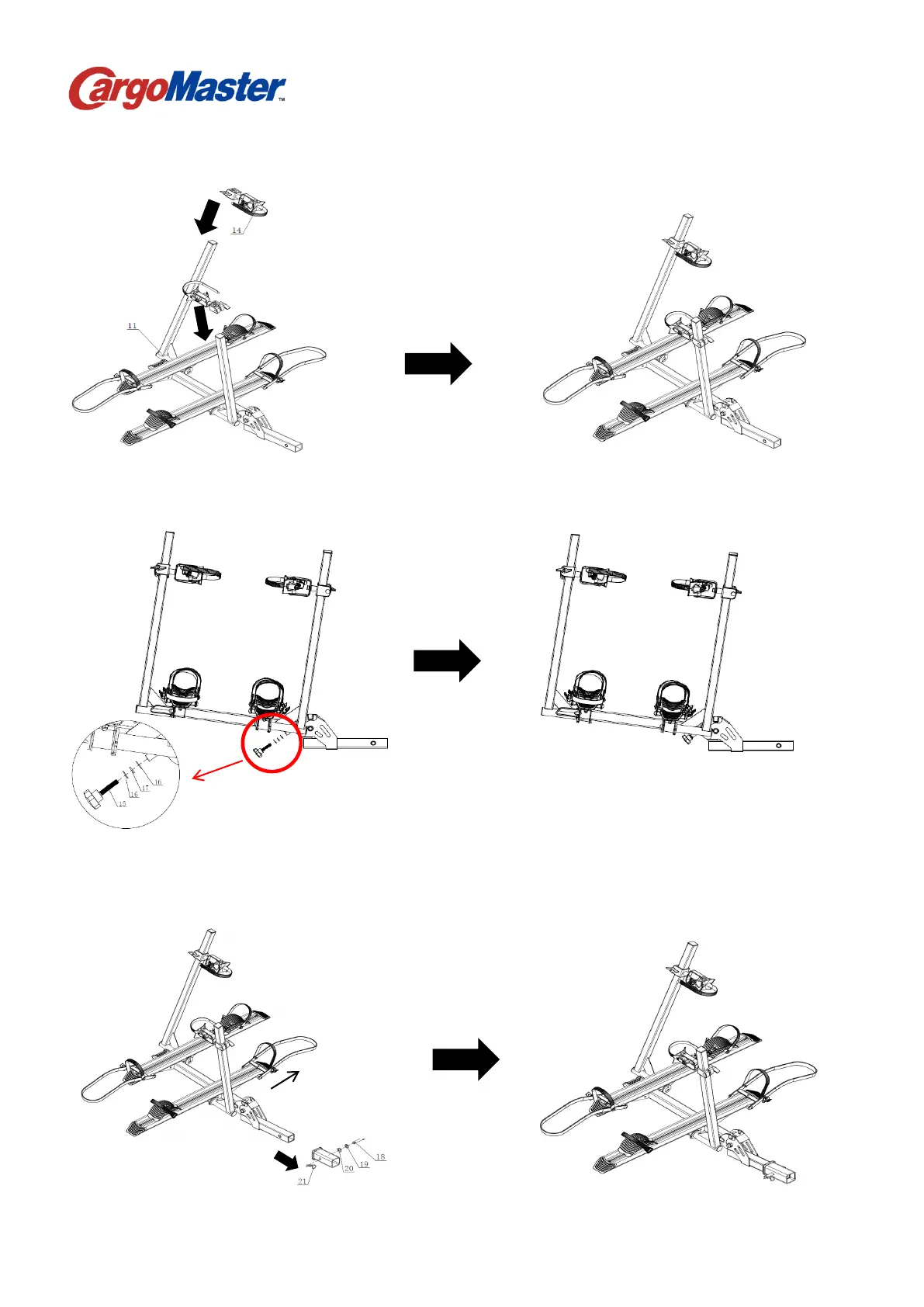

Step 6: Insert the adjusting support assembly (14) into the adjusting tube assembly (11).
Step 7: Install M10 hand wheel with screw (15), 10 flat washer (16), 10 spring washer (17) and 10 flat
washer (16) into the inclined thread sleeve at the bottom of the Supporting Tube (2) and tighten them.
Step 8: Align the holes of the folding tube with the holes on the vehicle’s 2’’ hitch receiver, then connect
the two parts as shown below. Place an M16 shockproof bolt (18), through the φ16 Spring Washer (19),
φ16 Flat Washer (20) and the aligned holes. Secure the bolt in place with the 3.8 pin (21), making sure to
place the pin through the holes on the bolt.
