Carisma CRC–ECM - ECM Electronic Board; Controller

0Vdc
10Vdc
L
N
PE
N L PE
13
10 12
14
11
15
798
546
MFC
PE
CONTROLLER
Segnale / Signal / Signal
Signal / Señal / Signaal
Impedenza / Impedance / Impédance
Impedanz / Impedancia / Impedantie
< 100 7
0,3/13V
V < 0,9 Volt
10 Volt
Fan OFF con / Fan OFF with / Ventilateur OFF avec
Ventilator OFF mit / Ventilador OFF con / Fan OFF met
Velocità massima / Maximum speed / Vitesse maximale
Höchstgeschwindigkeit / Máxima velocidad / Maximale snelheid

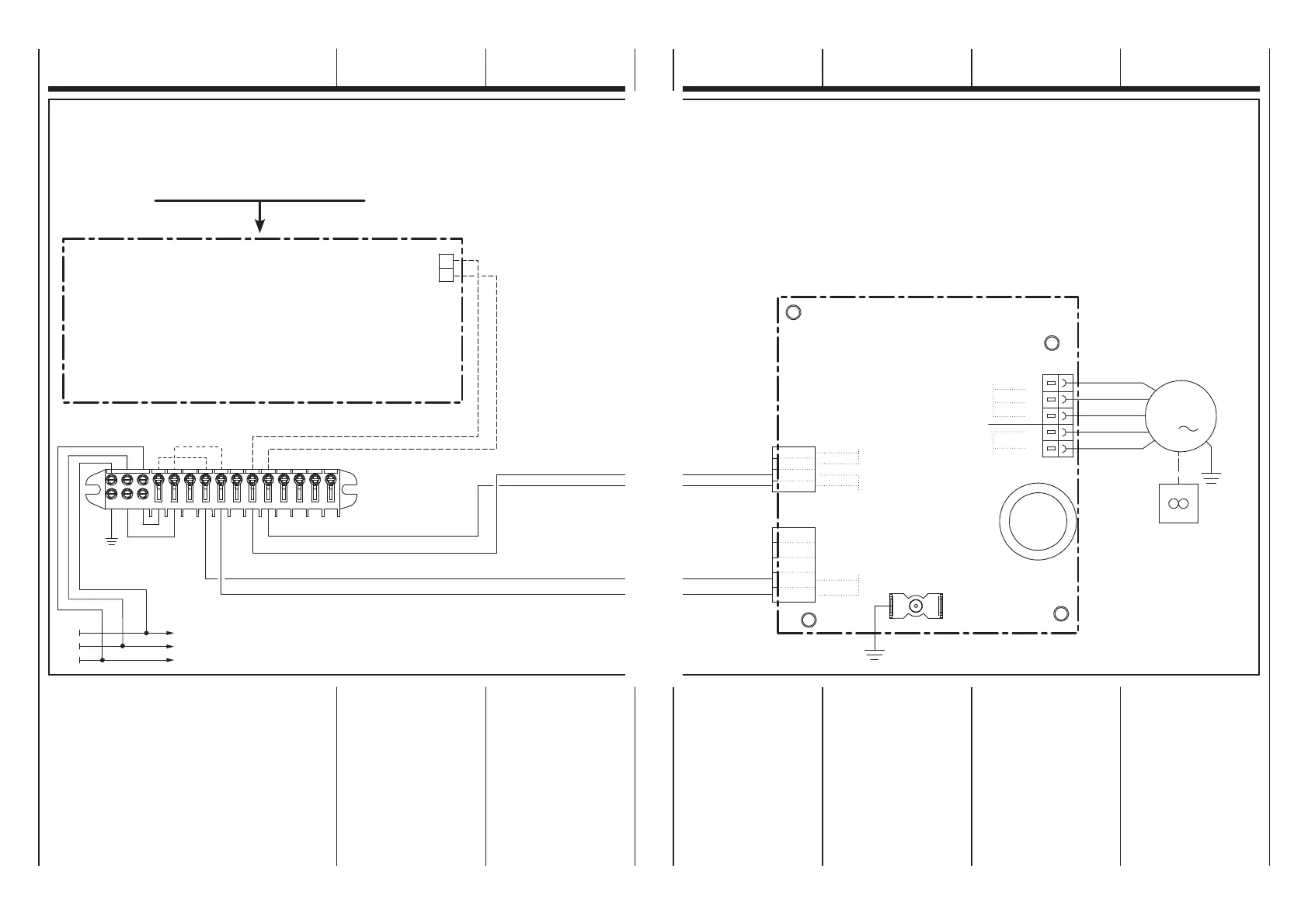

ECM BLAC board
PE
L
N
10V
0V
DFS+
DFS-
U
V
W
T1
T1
PE
M
PE
3
U / V / W
T1
0-10Vdc
ECM
DFS-/DFS+
WH
RD
BK
WH
RD
BK
BU BU
19 19A
SCHEDA ECM
ECM
ELECTRONIC BOARD
BORNIER ECM
ELEKTRONIKPLATINE
ECM TARJETA ECM SCHAKELING ECM
Accessorio non incluso
Not included accessories
Accessoires non inclus
Zubehör nicht im Preis enthalten
Accessorios no incluidos
Accessoires niet inbegrepen
LEGENDA Scheda BLAC:
BLAC = Scheda elettronica
Inverter
T1 = Collegamento protezione
termica motore
0-10Vdc = Segnale ingresso
U/V/W = Collegamento motore
DFS-/DFS+ = Segnal digitali
CONTROLLER = Regolatore
WH = Bianco
RD = Rosso
BK = Nero
BU = Blu
BLAC Board LEGEND:
BLAC = Inverter circuit board
T1 = Motor fan thermal
protector connection
0-10Vdc = Input signal
U/V/W = Motor fan connection
DFS-/DFS+ =
Digital fault signals
CONTROLLER = Controller
WH = White
RD = Red
BK = Black
BU = Dark Blue
LÉGENDE Carte BLAC:
BLAC = Carte électronique
de contrôle
T1 =
Raccordement protection
thermique moteur
0-10Vdc = Signal
U/V/W =
Raccordement moteur
DFS-/DFS+ = Signaux numériques
CONTROLLER = Régulateur
WH = Blanc
RD = Rouge
BK = Noir
BU = Bleu foncé
LEGENDE Karte BLAC:
BLAC = Elektronikkarte Inverter
T1 = Anschluss Motor-
wärmeschutzschalter
0-10Vdc = Signal
U/V/W = Motoranschluss
DFS-/DFS+ = Digitalsignale
CONTROLLER = Regler
WH = Weiß
RD = Rot
BK = Schwarz
BU = Blau
LEYENDA Tarjeta BLAC:
BLAC = Tarjeta electrónica
Inversor
T1 = Conexión protección
térmica motor
0-10Vdc = Señal
U/V/W = Conexión motor
DFS-/DFS+ = Señales digitales
CONTROLLER = Regulador
WH = Blanco
RD = Rojo
BK = Negro
BU = Azul
LEGENDE Kaart BLAC:
BLAC = Elektronische kaart
inverter
T1 = Verbinding thermische
bescherming motor
0-10Vdc = Signaal
U/V/W = Verbinding motor
DFS-/DFS+ = Digitale signalen
CONTROLLER = Regulator
WH = Witte
RD = Rood
BK = Zwart
BU = Donkerblauw
