Carlisle DeVilbiss PROLite Series - Page 11

EN
(reverse for assembly)

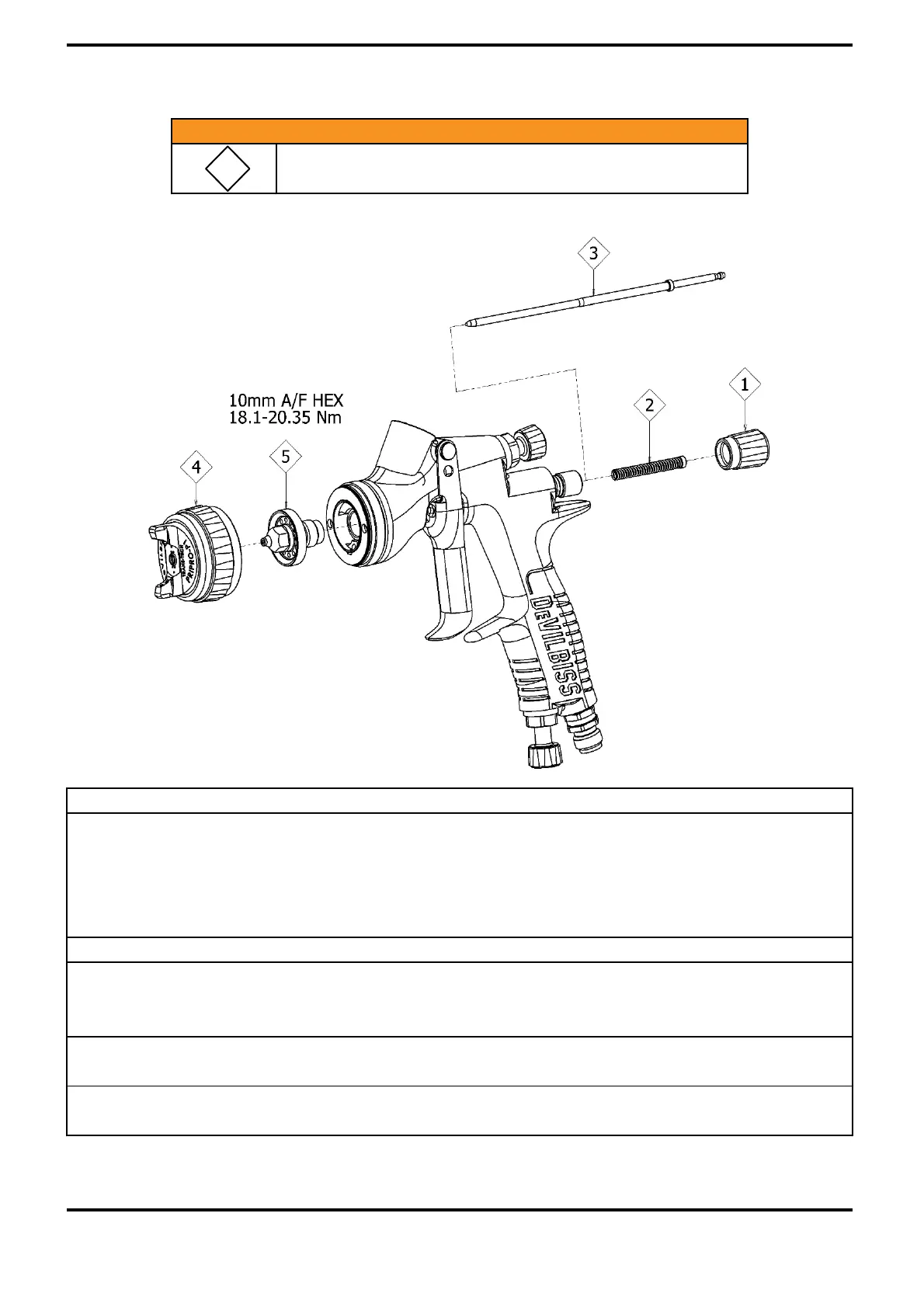

SPRAY GUN DISASSEMBLY / ASSEMBLY
KEY
Order for disassembly
To prevent damage to fluid nozzle or fluid needle, be sure to either:
NOTE
When replacing the fluid nozzle or fluid needle, replace nozzle, needle and fluid packing at the same
time. Using worn parts can cause fluid leakage. Do not overtighten.
NOTE
DISASSEMBLY NOZZLE & NEEDLE
2. Remove the fluid adjusting knob to relieve spring pressure against needle collar.
1. Pull the trigger and hold while tightening or loosening the fluid nozzle, or,
#
SB-E-2-996 R1.0
11/24
www.carlisleft.com
