4 Alignment
Position the probe on the alignment jig.
If you have pre-existing holes in the project with real-world coordinates, you can use these to
align the gyro.

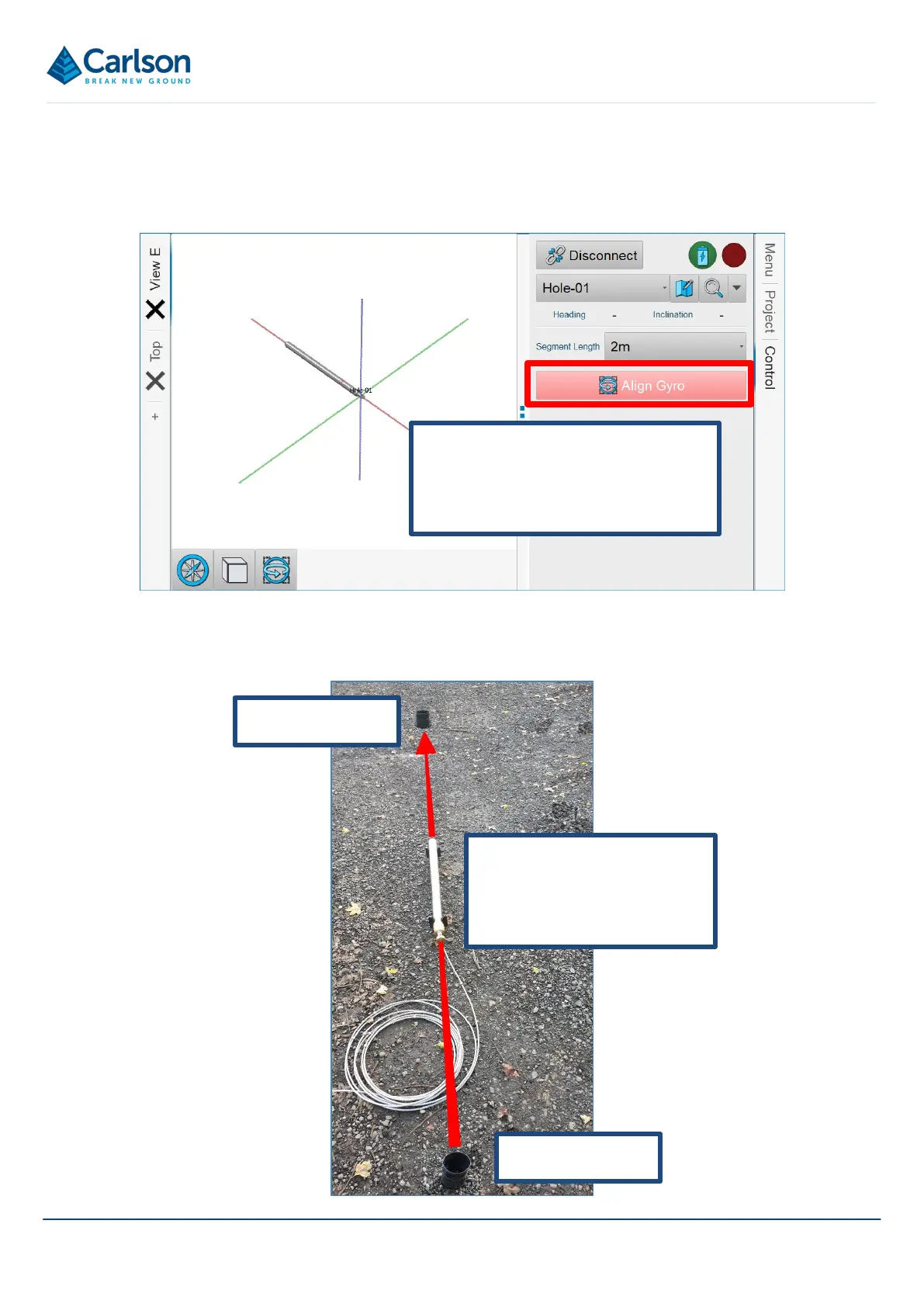

With the probe lying on
the alignment jig, tap
Align Gyro
.
Hole 2
Hole 1
Probe on alignment
jig pointing from
hole 1 to hole 2
