On this cable, the 2-pin female connector attaches to the connector on the VS+ labelled External Power Source.
The black, 4-pin connector attaches to the external battery.
To power the VS+ with the external battery connected, toggle the External Power Source power switch ON.
See section 5.2 for further details on working with the external battery.

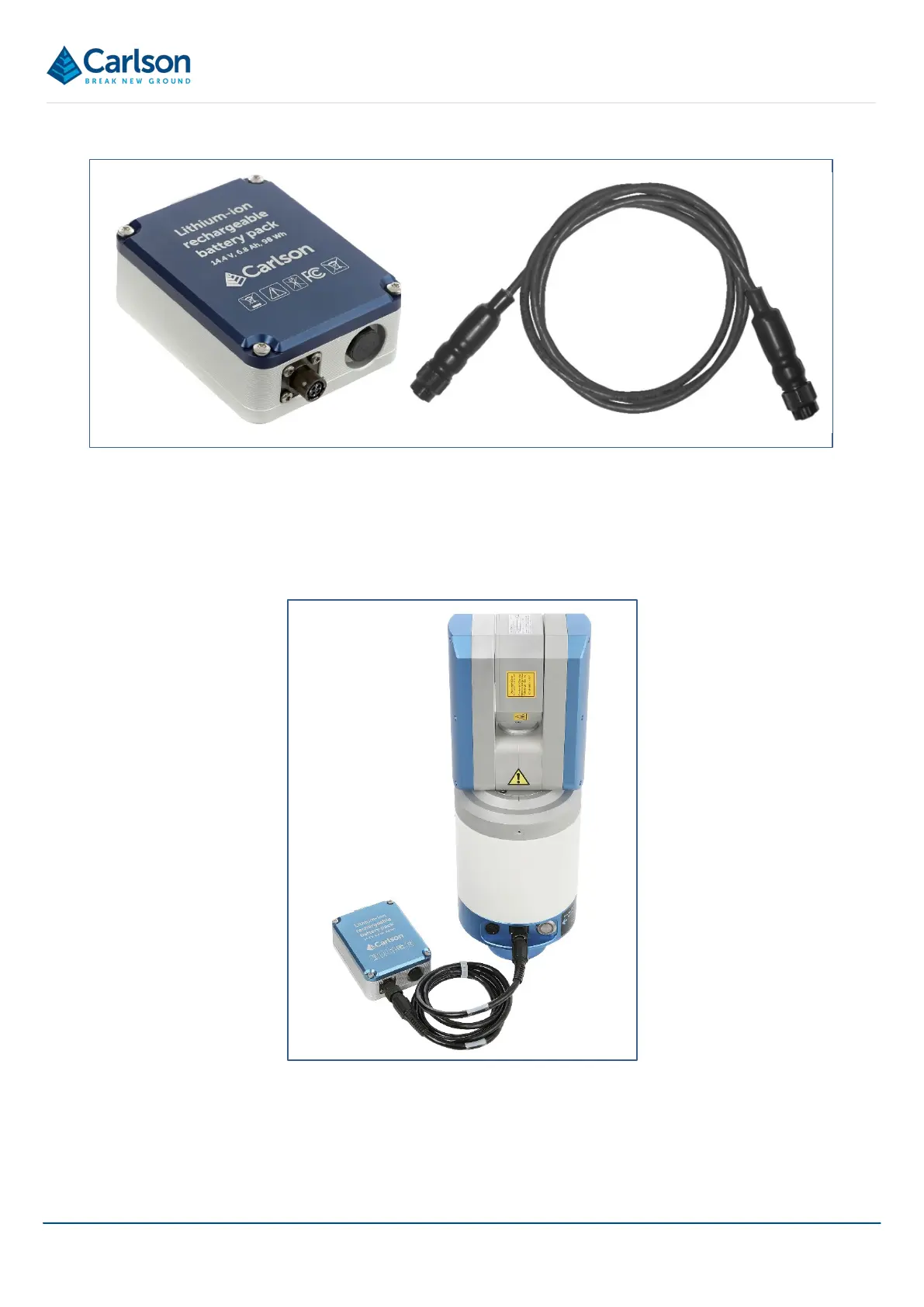

Figure 8 External lithium-ion battery (left) and external battery cable (right)
Figure 9 External battery connected to the VS+
