Carlton 2015 - H30-0014 USER MANUAL (ENGINE MONITOR); PANEL DESCRIPTION AND PINOUT

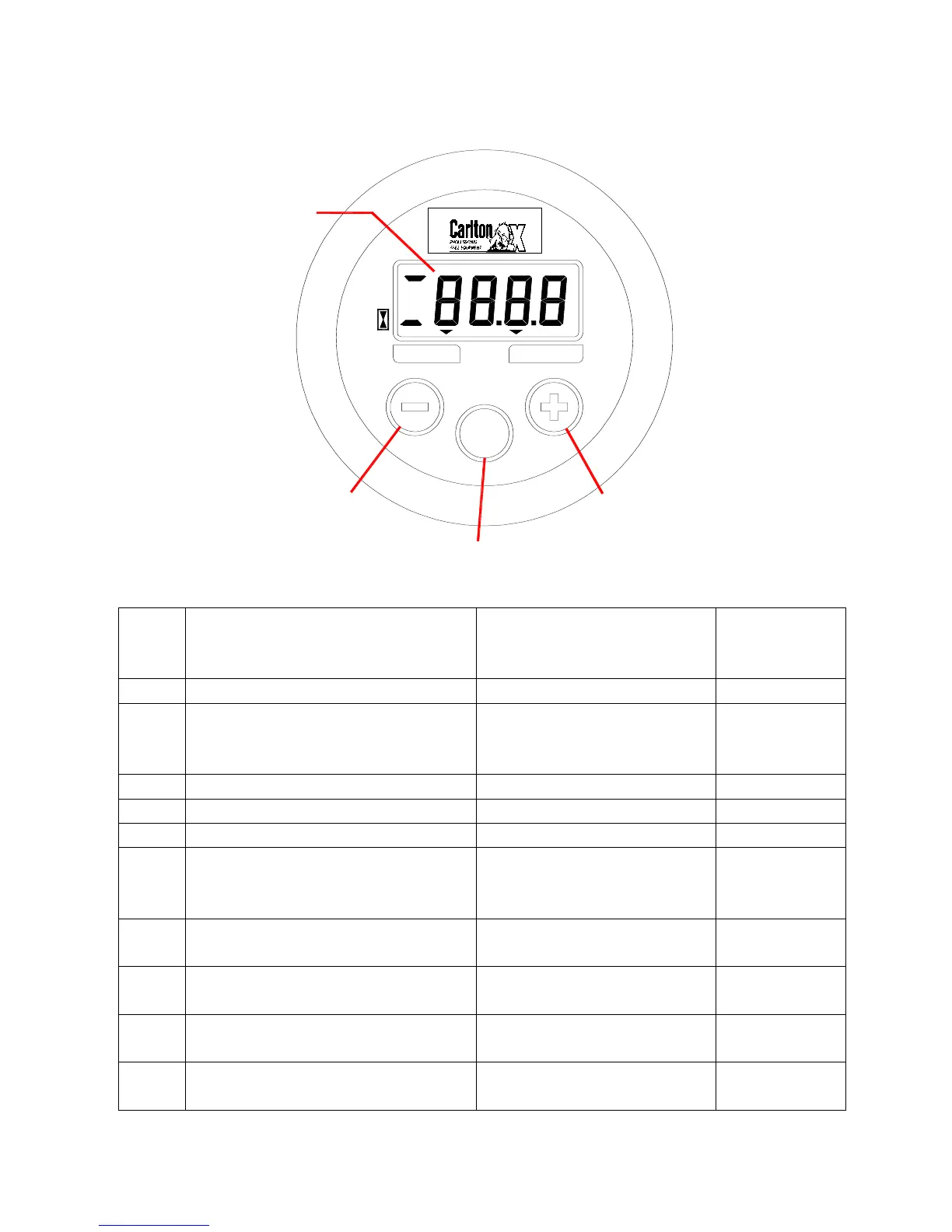

1. Panel description and electrical pinout
A
uto-
PR
Reve
RP
h
A
B
C
D
Ref. Description Signal type
INput/OUTput
Pinout
4-way Delphi
connector
A Back-lit display for visualizing:
Heat engine RPM IN (PNP NO, can be set to
NPN) max. input
frequency: 10KHz
(1)
A
Working hours - -
“auto-feed” function ON - -
“reverse” status ON - -
B Setting key: it allows to decrease
the value of the parameter being
set
- -
C Setting key: to enter the
parameters setting
- -
Positive output – EVS solenoid
valve power supply
OUT (+V b*) 3A max D
Positive output – EVR solenoid
valve power supply
OUT (+V b*) 3A max Faston female
single
Positive input - monitor power
supply
(2)
IN (+Vb*) C
