Carlyle 06CC - Typical 06 CC 50 to 99 Cfm Installation Wiring

27
6-Pin Term. Pl.
3-Lead XL Start
6-Pin Term. Pl.
6-Lead PW Start
9-Pin Term. Pl.
(208/230/460V, 300 Series Models)
208/230 XL Start
9-Pin Term. Pl.
(208/230/460V, 300 Series Models)
208/230 PW Start Only
9-Pin Term. Pl.
(208/230/460V Models)
460V XL Start
CAUTION
With 208/230/460-v 300 Series Models,
the 460-v cannot be wired for PW start.
Use distinct 460-v 600 Series Models
for any 460-v PW application.
Typical 06CC 50 to 99 cfm Installation Wiring

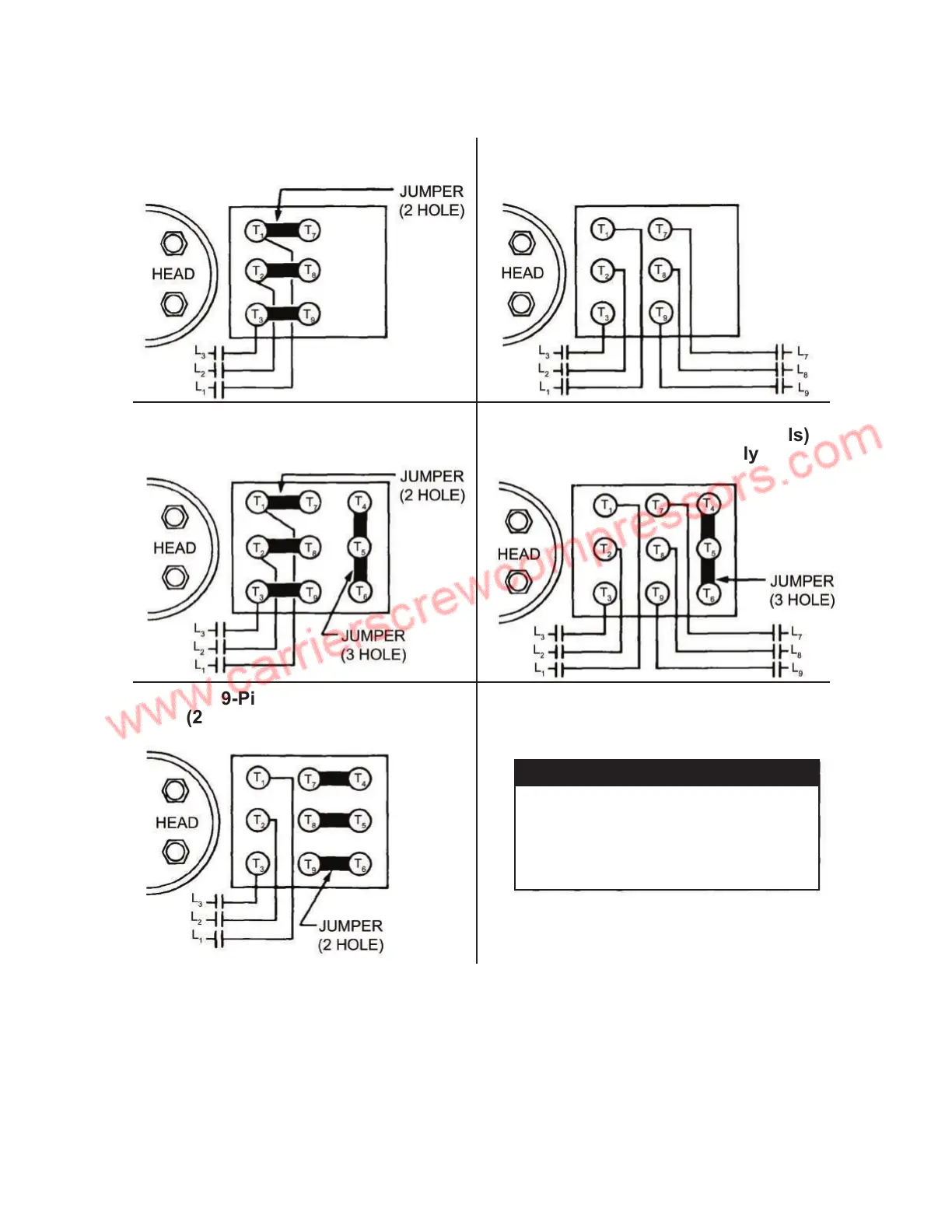

Fig. 13 — Typical 06CC 50 to 99 cfm Installation Wiring
