Carlyle 06E Installation And Start-Up Instructions

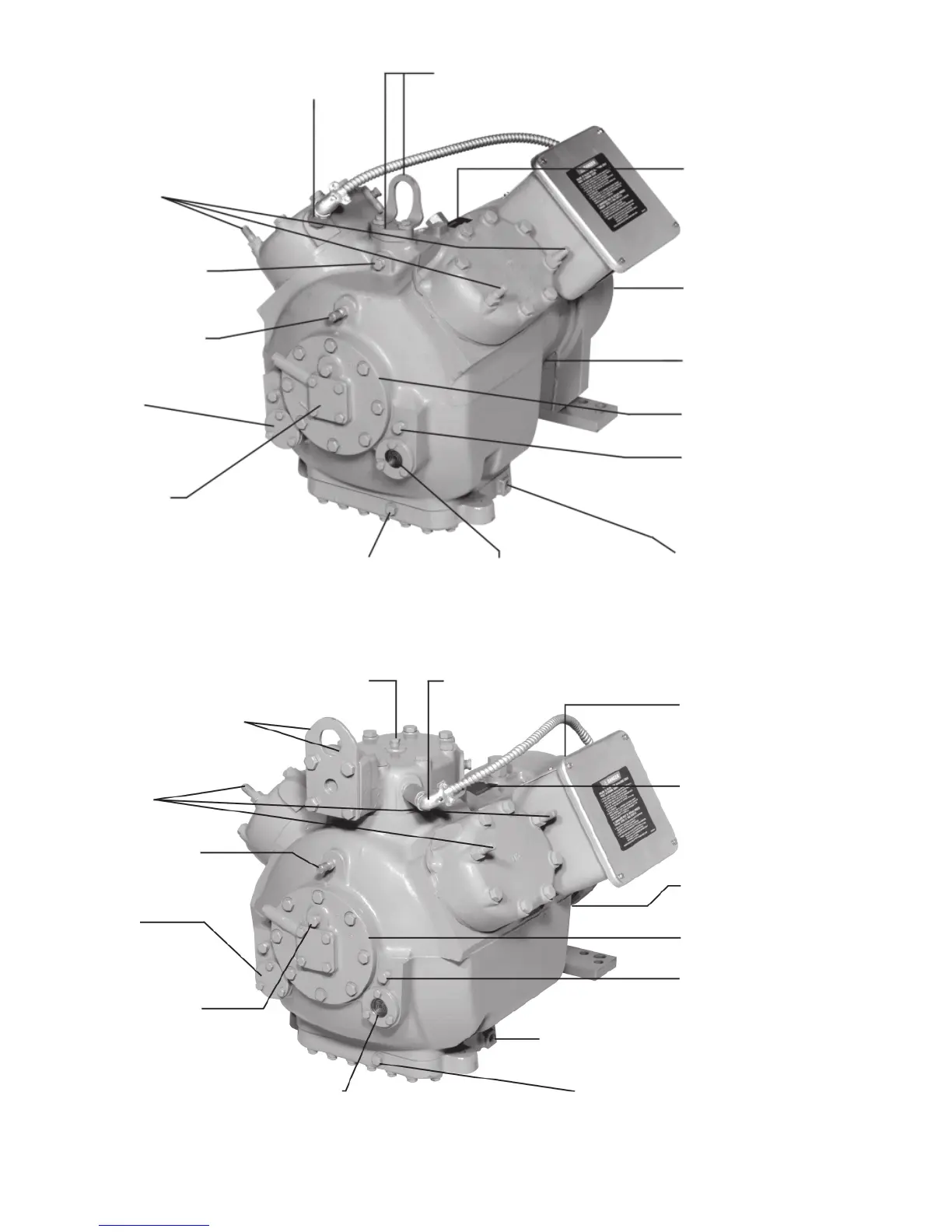

Figure 2
06E 6-Cylinder Compressor 65, 75, 99 Cfm (1.84, 2.12, 2.80 m
3
/m)
Figure 1
06E 4-Cylinder Compressor 50 Cfm (1.41 m
3
/m)
TEMPERATURE SENSOR
CYLINDER HEAD
DISCHARGE GAS
DISCHARGE SERVICE VALVE
LOCATION AND LIFTING LUG
NAMEPLATE LOCATION
SUCTION SERVICE VALVE
LOCATION
(ON MOTOR END COVER)
1/4″ NPT OIL DRAIN
C’CASE MOTOR COMPARTMENT
6:00 POSITION
C’CASE MOTOR BARREL
BEARING HEAD
(CONTAINS OIL PUMP)
1/4″ NPT (2) CONNECTIONS
(1) ABOVE SIGHTGLASS
(1) ABOVE BLANK PLATE
USED FOR:
A) OIL FILL CONNECTION
B) LOW SIDE OIL SAFETY
SWITCH CONNECTION
CRANKCASE HEATER
CONNECTION
OIL LEVEL SIGHTGLASS
INTERCHANGEABLE
WITH BLANK PLATE
7/16″-20 SAE OIL DRAIN
CONNECTION
CRANKCASE OIL SUMP
1/4″ NPT OIL PUMP
PRESSURE CONNECTION
OIL PRESSURE ACCESS TEE
TO BE INSTALLED IN THIS CONNECTION
HIGH SIDE CONNECTION OF OIL
PRESSURE SWITCH TO BE CONNECTED
TO FLARED END OF INSTALLED TEE
BLANK PLATE
REMOVE FOR
EQUALIZING LINE
OR OIL FLOAT
CONNECTION
1/4″ NPT LOW PRESSURE
CONNECTION
FACTORY SUPPLIED
SCHRADER TYPE FITTING
1/4″ NPT HIGH PRESSURE
CONNECTION
CYLINDER HEAD
COOLING FAN
MOUNTING STUDS
(06ER MODELS ONLY)
1/4″ NPT HIGH PRESSURE
CONNECTION
CYLINDER HEAD
COOLING FAN
MOUNTING STUDS
(06ER MODELS ONLY)
1/4″ NPT LOW PRESSURE
CONNECTION
FACTORY SUPPLIED
SCHRADER TYPE FITTING
BLANK PLATE
REMOVE FOR
EQUALIZING LINE
OR OIL FLOAT
CONNECTION
1/4″ NPT OIL PUMP
PRESSURE CONNECTION
OIL PRESSURE ACCESS TEE
TO BE INSTALLED IN THIS CONNECTION
HIGH SIDE CONNECTION OF OIL
PRESSURE SWITCH TO BE CONNECTED
TO FLARED END OF INSTALLED TEE
OIL LEVEL SIGHTGLASS
INTERCHANGEABLE
WITH BLANK PLATE
7/16″-20 SAE OIL DRAIN
CONNECTION
CRANKCASE OIL SUMP
CRANKCASE HEATER
CONNECTION
1/4″ NPT (2) CONNECTIONS
(1) ABOVE SIGHTGLASS
(1) ABOVE BLANK PLATE
USED FOR:
A) OIL FILL CONNECTION
B) LOW SIDE OIL SAFETY
SWITCH CONNECTION
BEARING HEAD
(CONTAINS OIL PUMP)
5/8″-18 SAE OIL DRAIN
C’CASE MOTOR COMPARTMENT
6:00 POSITION
C’CASE MOTOR BARREL
NAMEPLATE LOCATION
SUCTION SERVICE VALVE
LOCATION
(ON MOTOR END COVER)
TEMPERATURE SENSOR
CYLINDER HEAD
DISCHARGE GAS
DISCHARGE SERVICE VALVE
AND LIFTING LUG LOCATION
