Carrier 024-048 - Page 34

: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
34
A210121

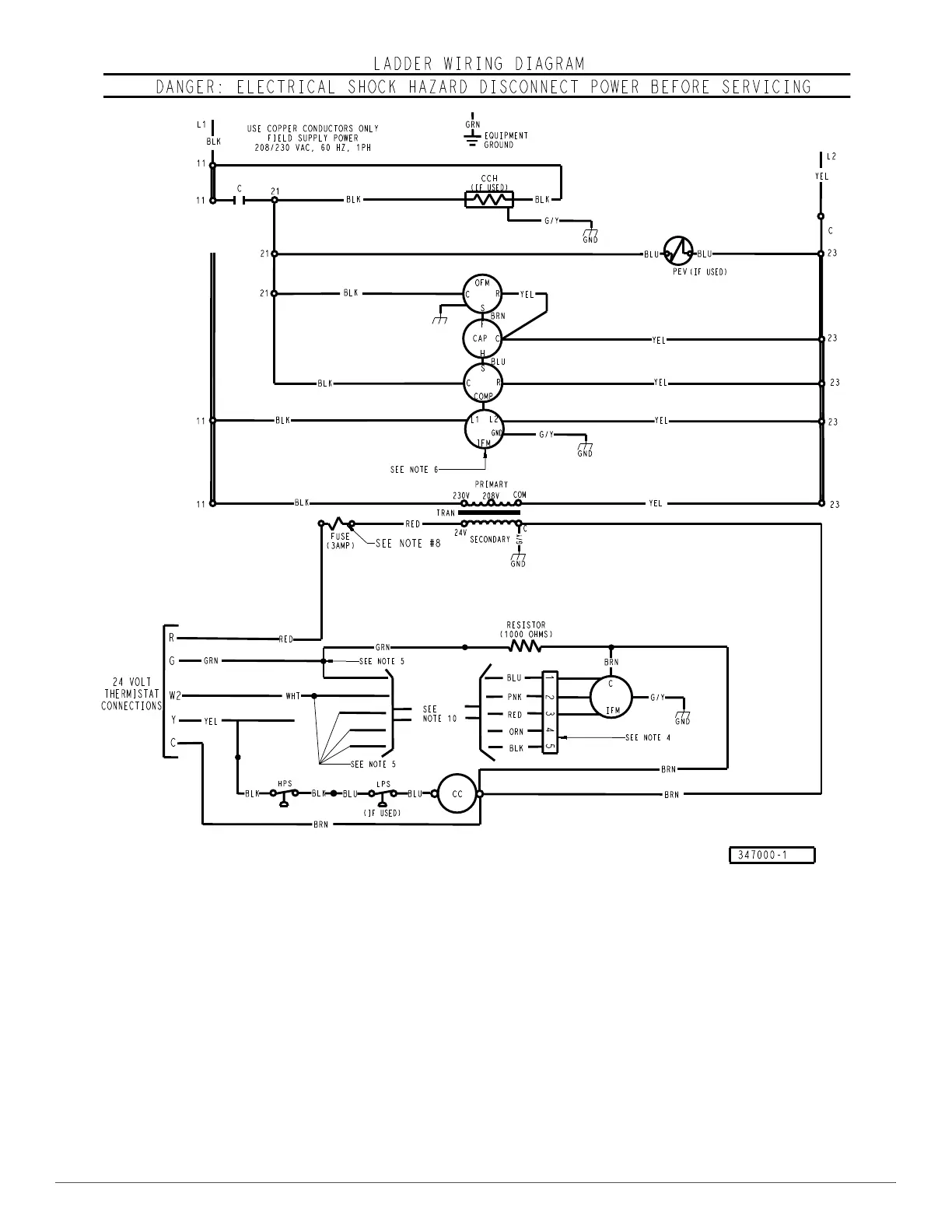

Fig. 34 – Typical Air Conditioning Single-Phase Unit Ladder Electrical Diagram
