Carrier 12K - Ducted Split System

26

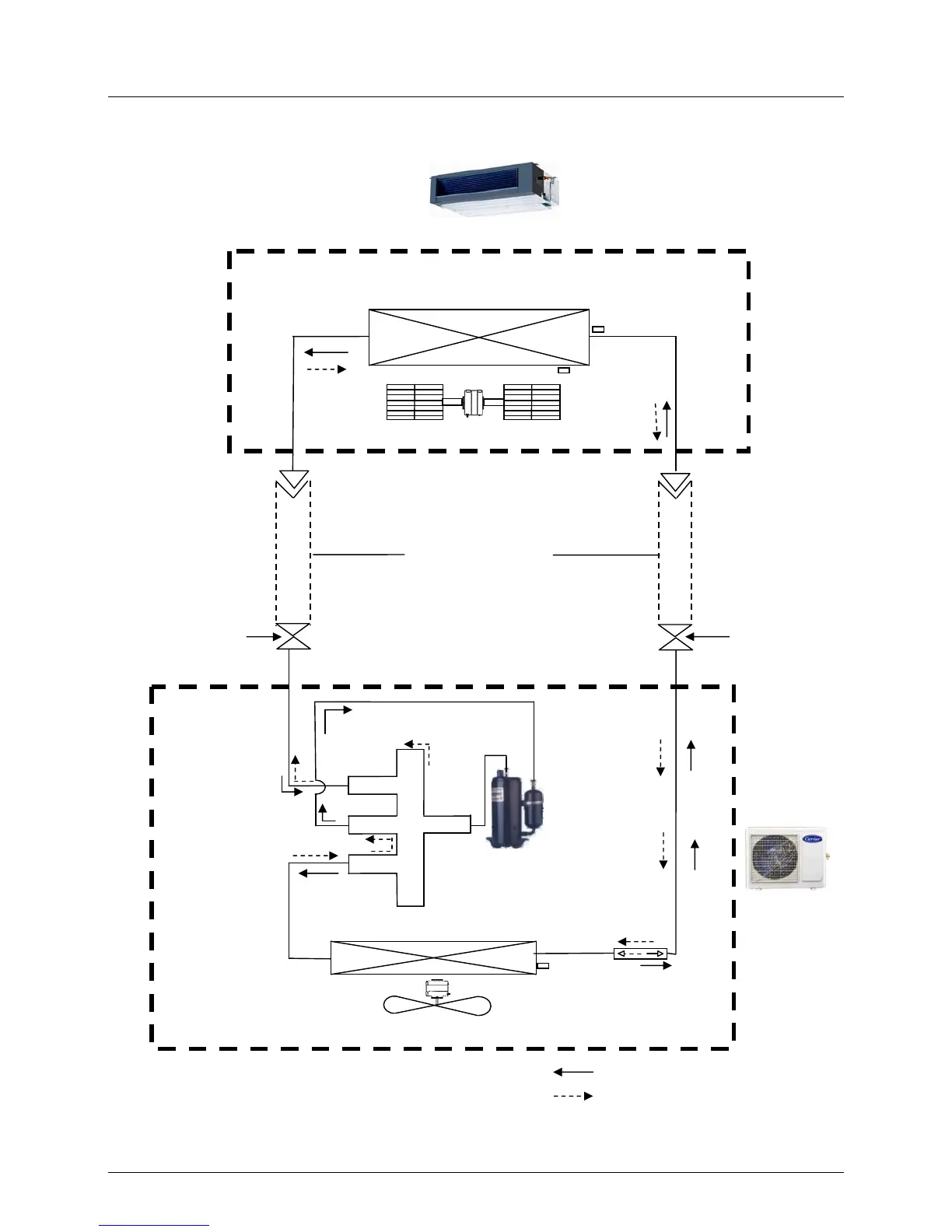

Refrigeration Cycles (Cont.)
Ducted Split System
53QDMT18-718 Heat Pump
220-240V / 1Ph / 50Hz
INDOOR UNIT
Centrifugal Blowers
Liquid
Service Valve
Gas
Service Valve
Refrigerant flow (cooling)
OUTDOOR UNIT
Compressor
Rotary Tropical
GMCC / Toshiba
PH340G2C-4KTS1
T1 Air return
temperature senso
r
Indoor Coil
Refrigerant flow (heating)
Propeller Fan
Outdoor Coil
Reversing Valve
Connecting
Refrigerant
Piping Lines
Liquid
1/4"
Gas
1/2"
T2 Indoor Coil
Temp. senso
r
Restrictor
C 0.041
H 0.035
T3 Outdoor
Coil Temp.
sensor
42QDMT18-718
38QDMT18-718
