*The inverter control assembly (item 16) and rectifier control assembly (item 18) are physically similar but are loaded with different software. These boards are NOT interchangeable.
442A AND 608A VFDs

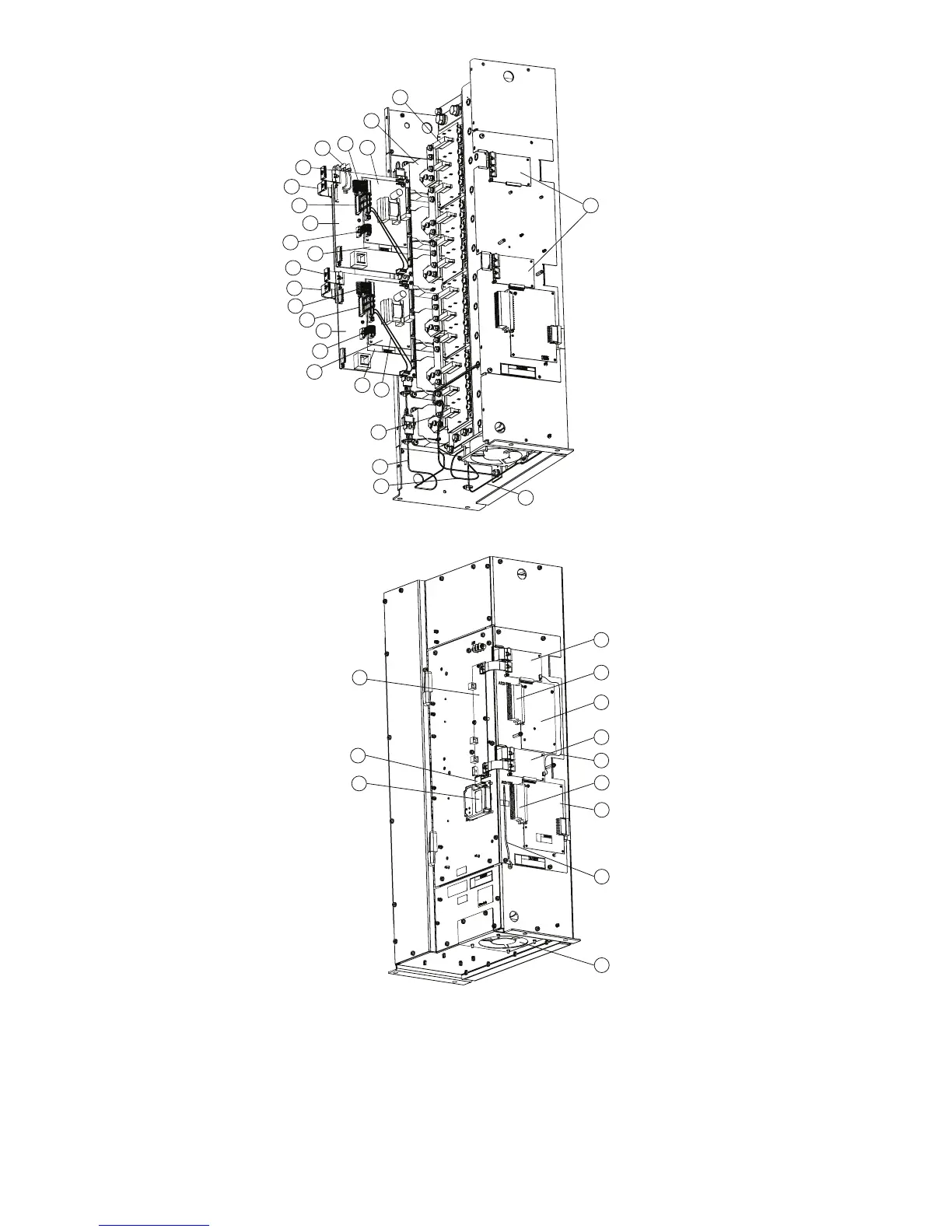

Fig. 7 — Power Module Components
1—Wire Harness Assembly, Gate Driver 10 — Wire Harness Assembly, Power Supply, Lower Gate 19 — AC Line I/O Assembly
2—Current Feedback Device, 1000 A 11 — Insulation Sheet 20 — Connector, Terminal Block, 32-Pin
3—Wire Harness Assembly, Power Supply, Logic 12 — Rectifier Power Interface Assembly 21 — NTC Assembly
4—80 W Power Supply Assembly 13 — Wire Harness Assembly, Current Feedback Device 22 — Internal Fan
5—Terminal Block, 2-Position 14 — Wire Harness Assembly, DC Bus Bleeder Resistors 23 — DPI Communications Interface Assembly
6—Cable Assembly, 40-Pin 15 — Wire Harness Assembly, Line Sync 24 — VFD Gateway
7—Cable Assembly, 30-Pin 16 — Inverter Control Assembly* 25 — Wire Harness Assembly, Control Sync
8 — Wire Harness Assembly, Power Supply, Upper Gate 17 — Standard I/O Option, 24 V Assembly 26 — Cable Assembly, 20-pin
9—Inverter Power Interface Assembly 18 — Rectifier Control Assembly*
a23-1627stacked
Door Open
Door Closed

Carrier 19XRV Specifications

General

Model	19XRV
Category	Chiller
Refrigerant	R-134a
Efficiency	High
Dimensions (L x W x H)	Varies by model
Type	Centrifugal
Compressor Type	Hermetic Two-stage
Full Load Efficiency	0.50 kW/Ton
Part Load Efficiency	0.30 kW/ton (at AHRI conditions)
Weight	Varies by model
Voltage Options	600V
Operating Temperature Range	40°F - 120°F
