Rigging & Unpacking
x Unit should not be removed from protective packaging until reaching final location.
x The 38LB Series should be handled and installed upright.
x Inspect the unit for shipping damage and file claim with transport agency if necessary.
x Confirm the nameplate voltage to ensure that it matches available power supply.
x Consult building and electrical codes as required in your area.
Location
Unit should be installed outdoors. Do not restrict service, wiring and piping areas. Also avoid positioning unit

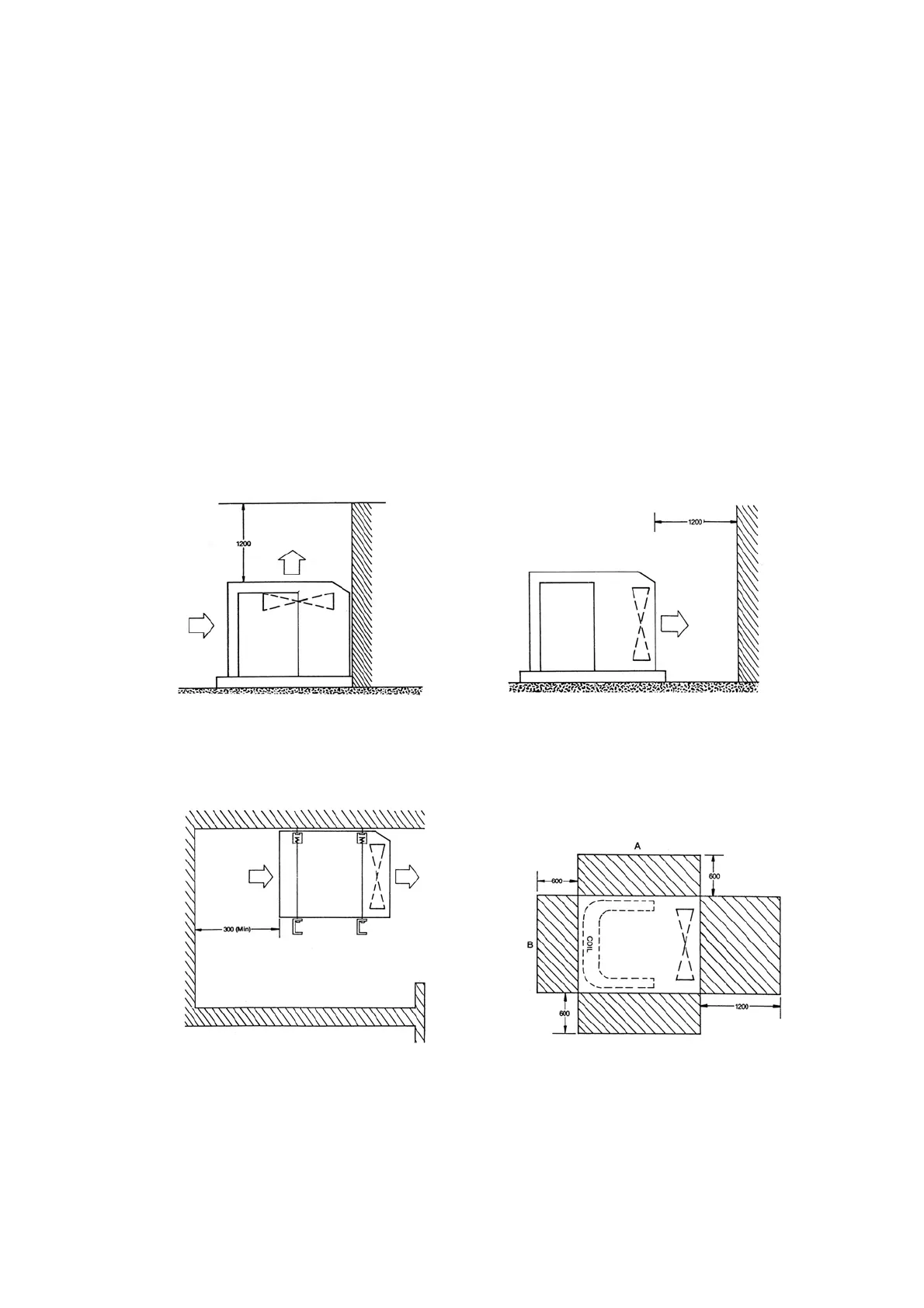

in manner restriction airflow or in areas where water will pour directly onto unit. Minimum recommended
clearance space is shown in figure 1 to 4.
Fig 1 Fig 2
Fig 3 Fig 4
- 4 -
