Carrier 38MAQB09R-1 - Dimensions − Outdoor; Clearances − Outdoor

6

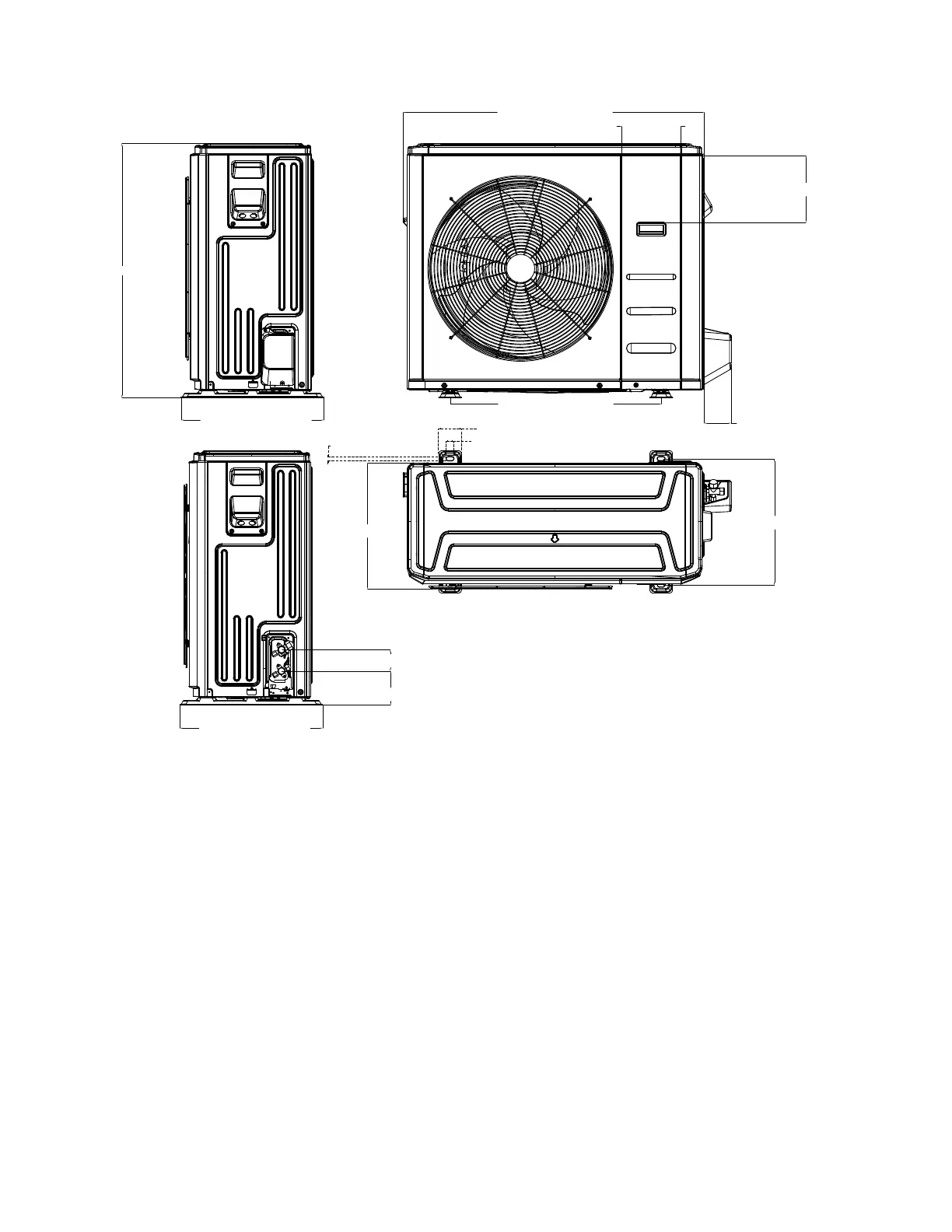

DIMENSIONS − OUTDOOR
A150731
Fig. 2 - Outdoor Unit
Table 4—Unit Sizes
38MAR UNIT SIZE 9K 12K 9K 12K 18K 24K 30K 36K
Voltage 115V 115V 208/230V 208/230V 208/230 V 208/230 V 208/230 V 208/230 V
Height (H) in (mm) 21.81(554) 21.81(554) 21.81(554) 21.81(554) 23.90(607) 31.89(810) 31.89(810) 31.89(810)
Width (W) in (mm) 32.09(815) 32.09(815) 32.09(815) 32.09(815) 33.27(845) 37.24(946) 37.24(946) 37.24(946)
Depth (D) in (mm) 13.11(333) 13.11(333) 13.11(333) 13.11(333) 14.17(360) 16.14(410) 16.14(410) 16.14(410)
L1 in (mm) 20.24 (514) 20.24 (514) 20.24 (514) 20.24 (514) 21.26(540) 26.50(673) 26.50(673) 26.50(673)
L2 in (mm) 13.39 (340) 13.39 (340) 13.39 (340) 13.39 (340) 13.78(350) 15.87(403) 15.87(403) 15.87(403)
Operating Weight Lbs (kg) 82.9(37.6) 82.9(37.6) 91.5(41.5) 91.5(41.5) 118.2(53.6) 145.5(66) 139.8(63.4) 147.3(66.8)
CLEARANCES − OUTDOOR
A
D
B
Air-outlet
Air-inlet
C
E
A07894
Fig. 3 - Outdoor Unit Clearance
Table 5—Outdoor Unit Clearance Dimensions
UNIT
MINIMUM VALUE
in. (mm)
A 24 (610)
B 24 (610)
C 24 (610)
D 4 (101)
E 4 (101)
