66 Specifications subject to change without notice. 38MGR-04SM

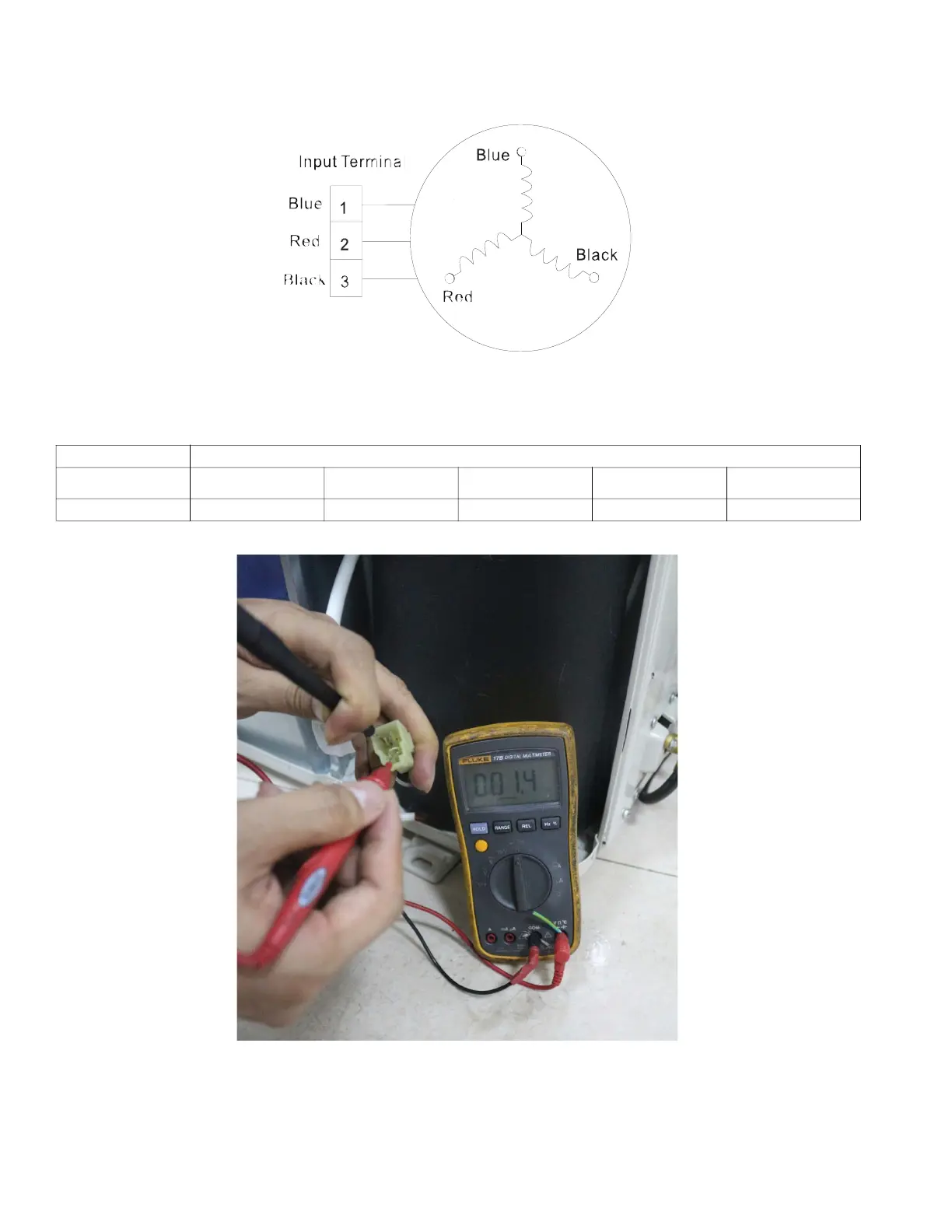

Compressor Check
Measure the resistance value of each winding by using the tester.
Fig. 68 — Measure the Resistance
Table 36 — Compressor Check
Fig. 69 —Test the voltage
POSITION RESISTANCE VALUE
COMPRESSOR ATM150D23UFZ ATF235D22UMT ATF250D22UMT ATF310D43UMT ATQ360D1UMU
BLUE - RED 1.72 Ω 0.75 Ω 0.75 Ω 0.65 Ω 0.37 Ω
