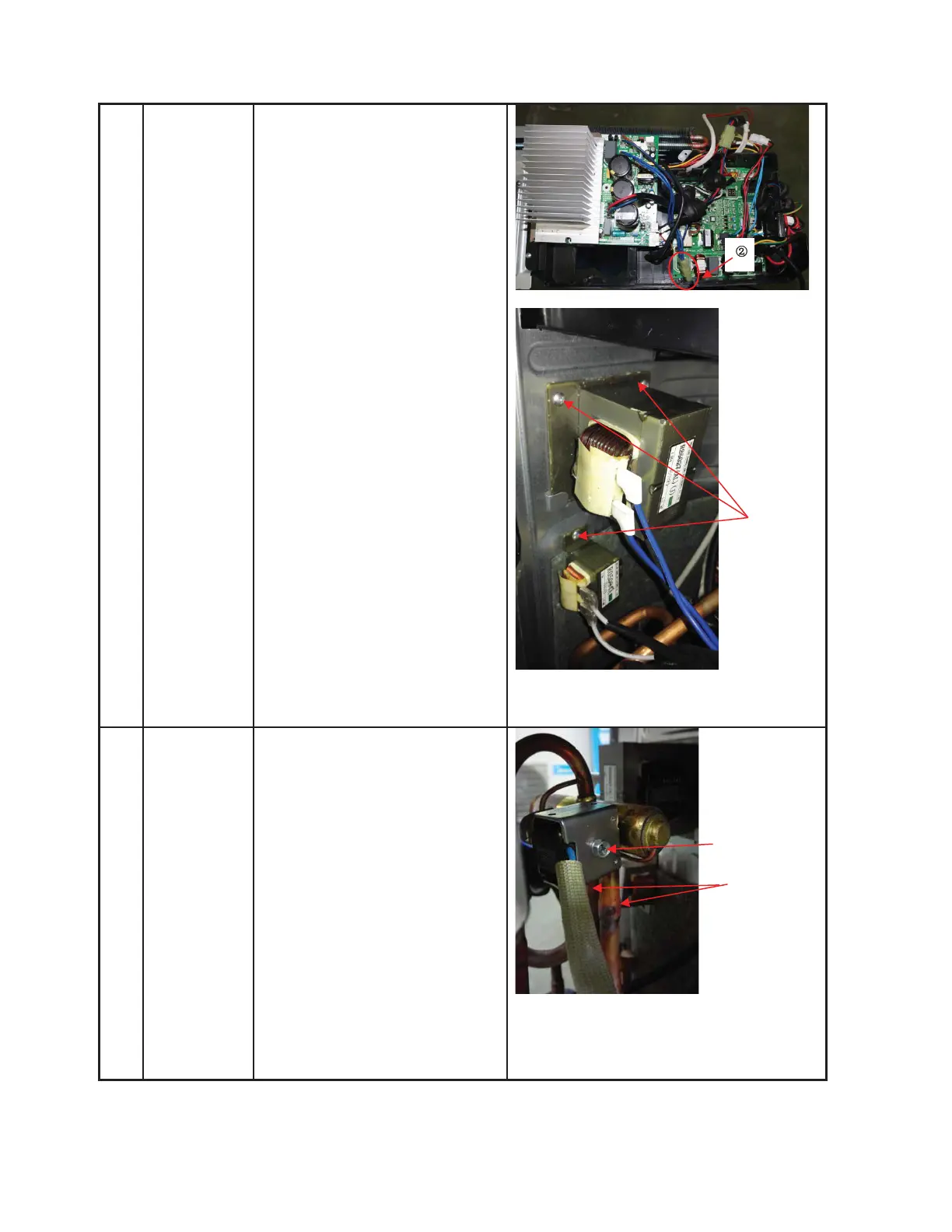

DISASSEMBLY INSTRUCTIONS SIZE 18 (CONT)
5 Reactor How to remove the reactor
1)
2)
3)
6 The 4-way
valve
How to remove the 4-way valve
1)
2)
Extract the refrigerant gas.
3) Remove the electrical parts
(see the Electrical parts
section).
4) Remove the screw securing
the coil and remove the coil.
5)
Detach the welded parts of
the 4-way valve and pipe.
Coil
Welded
p
arts
Complete the steps in
the “Panel Plate”section for
size 18.
Unfasten the connector
between the IPM and the
reactor.
Remove the reactor’s screws
(3) and remove the reactor.
Inductance
cover screws
Complete the steps in the
“Panel Plate”section for size
18.
