Carrier 38PZ - Service Area, MM

13

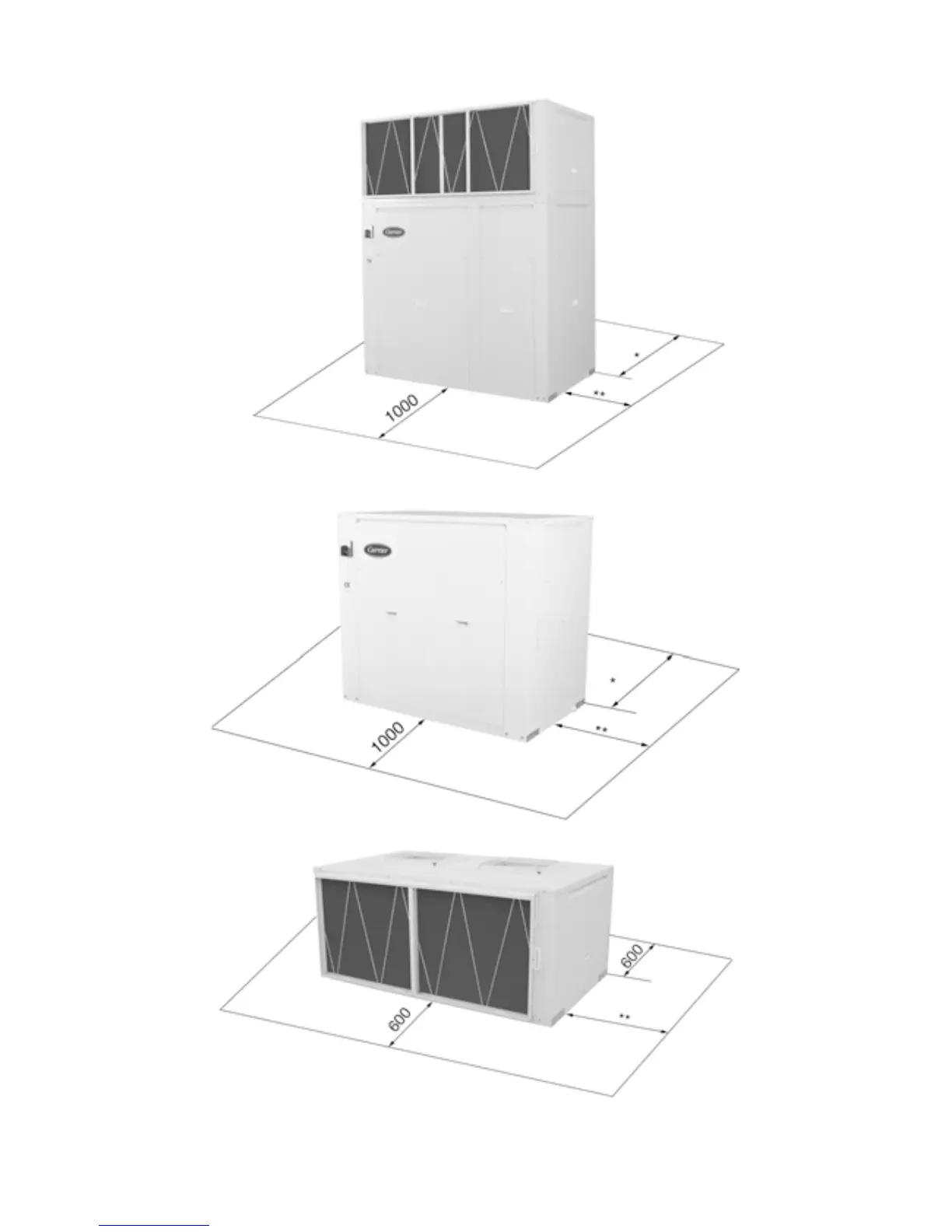

Fig. 8 - Service area, mm
50VZ/PZ
* Service space behind the unit depends on whether or not the unit is installed with outdoor air ducts. It is also necessary to leave space for cleaning and inspection of the outdoor heat
exchanger.
** Space for removal of the air filter and the indoor or outdoor section belt and pulley transmission is required on the right and left hand side.
38VZ/PZ
40PZ
