18

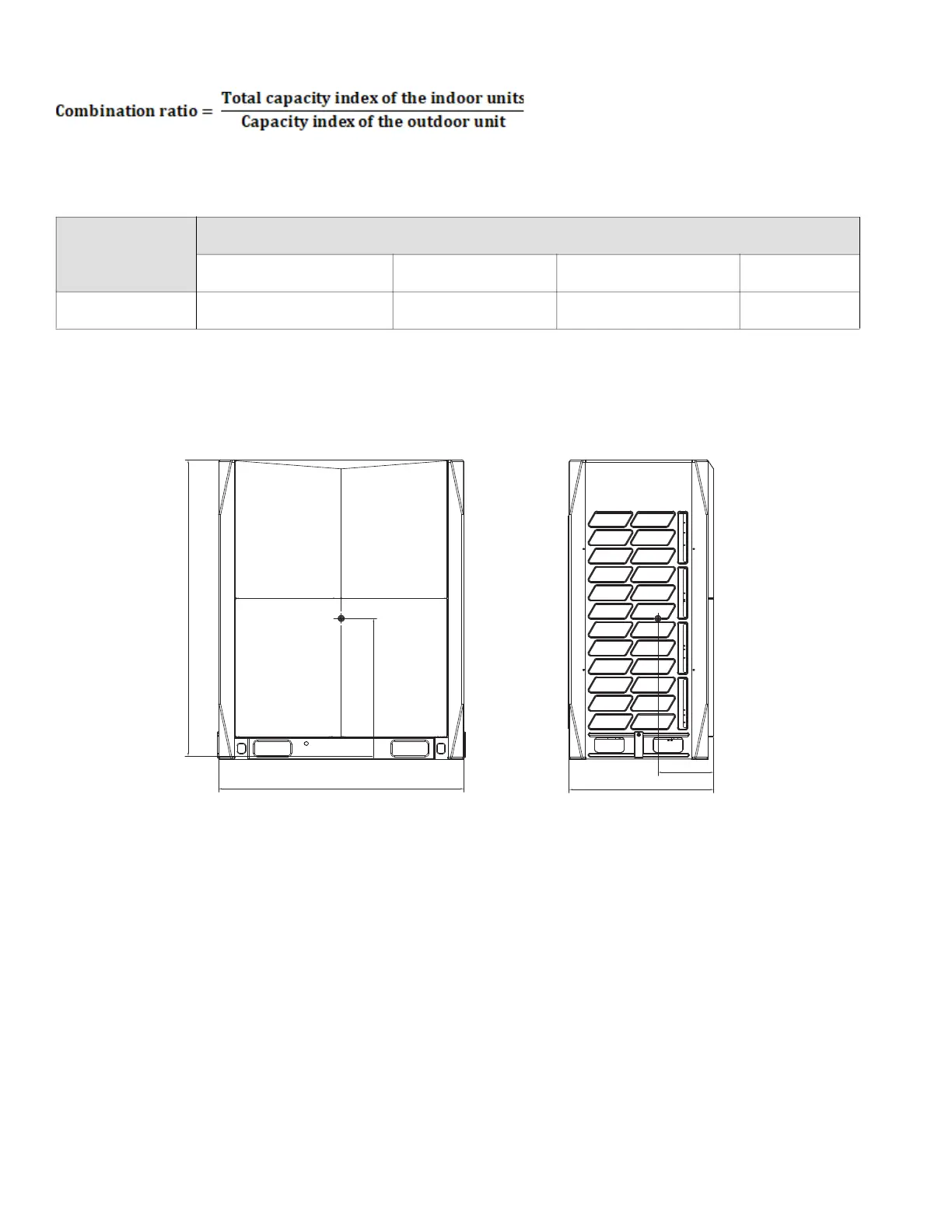

Combination Ratio Restrictions
e.g. Outdoor unit 38VMA240RDS5-1(6-1) has 240 as the capacity index.
It is recommended to keep a proper combination ratio for the entire system.
Table 17 —Combination Ratio
NOTES:
1. When 40VMH048, 054, 072, 096---3 is installed.
2. When outside air processing units (40VMA) and standard indoor units are connected, the total capacity index of the 40VMA must
be limited to 30% or less of the capacity index of the outdoor unit. When 40VMA and 40VMZ indoor units are connected with
no additional indoor units, the 30% rule does not apply.
Center Of Gravity
NOTE: All dimensions are shown in inches.
Fig. 1 —38VMA072, 096, 120RDS Models
MIN. COMBINATION
RATIO
MAX. COMBINATION RATIO
40VMH *1 only
40VMV only
When 40VMA and indoor
units connected
Including 40VMH *1 or 40VMV
at least one unit
Other indoor unit
models
50% 100% 100% *2 130% *3 150%
11-13/16
31-7/64
30-33/64
64-3/8
52-3/4
