CLEARANCES
valve cover
The clearance dimensions are necessary for a correct installation
and are the minimum permissible distances to adjacent structures.
●
Distance to Ceiling
6 in (152 mm)
Distance to Wall
6 in (152 mm)
Distance to Wall
6 in (152 mm)
Distance in Front of Unit
118 in (2997 mm)
Distance to Floor
66 in (1676 mm)
Indoor Unit
Outdoor Unit
Air Inlet Side
12 in (305 mm)
Distance to
Back Wall
12 in (305 mm)
Air Discharge Side
79 in (2007 mm)
Distance to Wall
20 in (508 mm)
Above Unit
20 in (508 mm)
NOTE: Refrigerant lines
may be routed in any of the
(4) directions, right,
right rear, left, or left rear.
See instructions for details
A12385

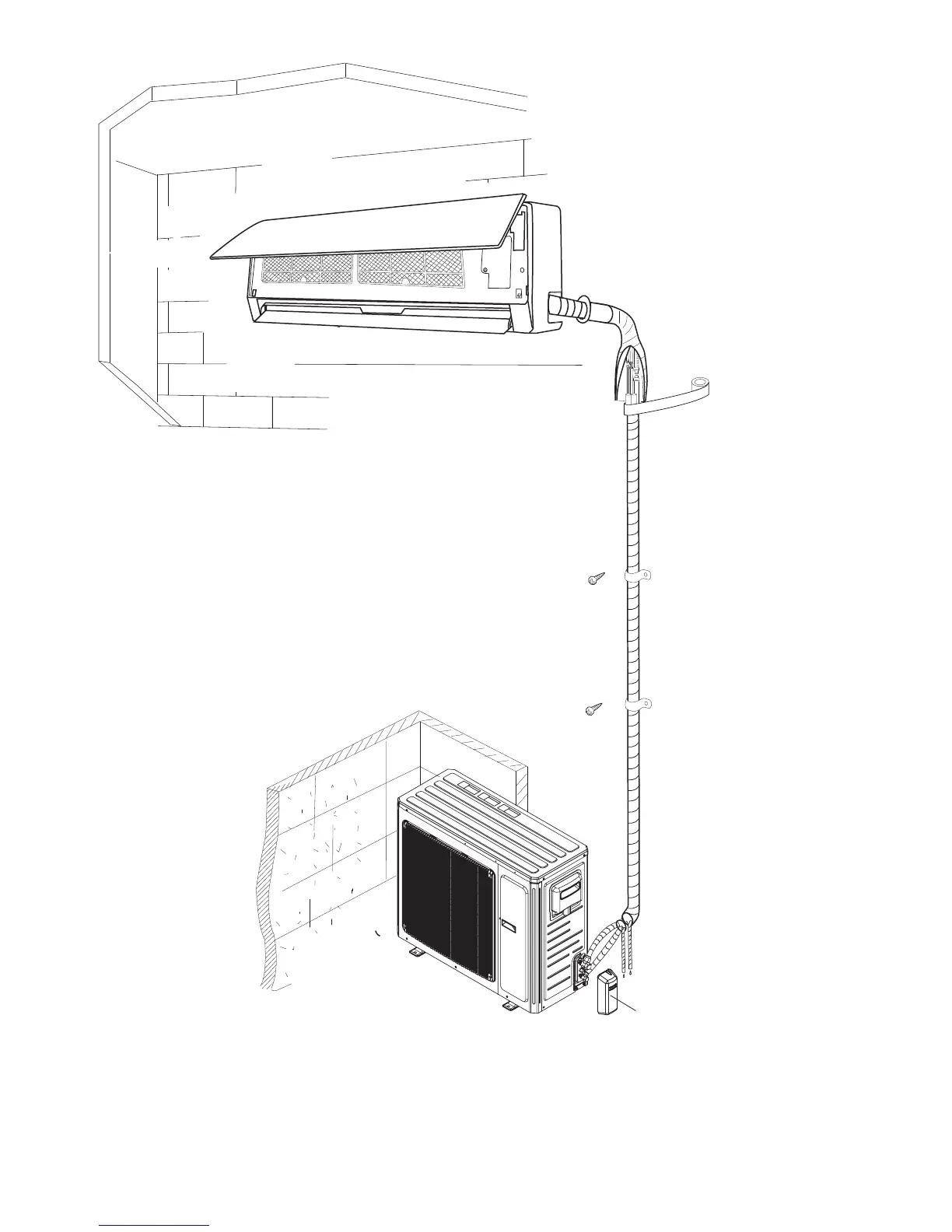

Fig. 6 --- Indoor and Outdoor Unit Clearances
