40MAHB-01SI Specifications subject to change without notice. 3
ACCESSORIES
The system is shipped with the following accessories (see Table 1). Use
all of the installation parts and accessories to install the system. Improper
installation may result in water leakage, electrical shock and fire, or cause
the equipment to fail. Keep the installation manual in a safe place and do
not discard any other accessories until the installation work has been
completed.

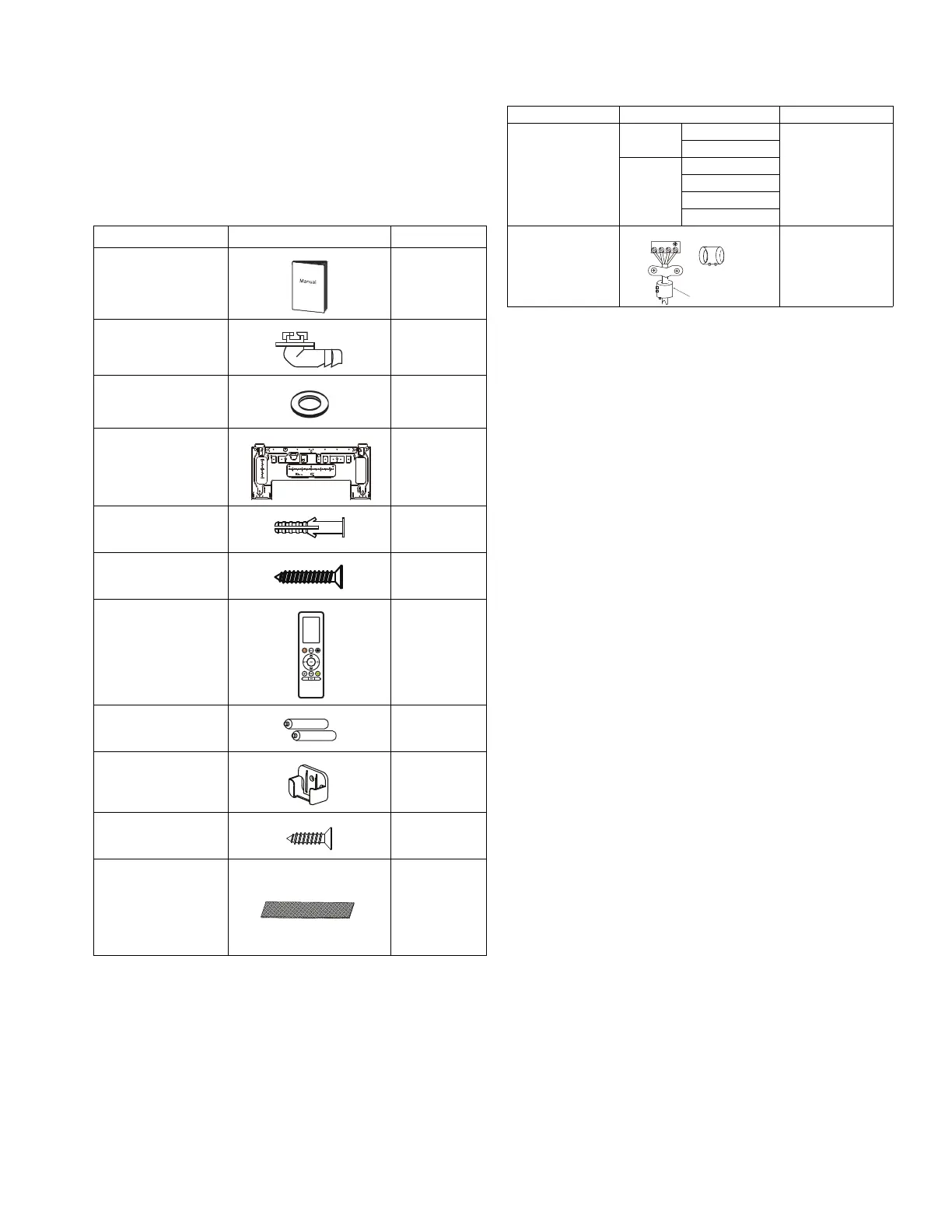

Table 1 — Accessories
Table 2 — Accessories
NAME SHAPE QUANTITY
Installation Manual 2-3
Drain Joint 1
Seal (for cooling
and heating models)
1
Mounting Plate 1
Anchor
5-8
(depending
on models)
Mounting Plate
Screw
5-8
(depending
on models)
Remote Controller 1
Battery 2
Remote Controller
Holder (optional)
1
Remote Controller
Holder Screw
(optional)
2
Small Filter
(Must be installed
on the back of the
main air filter by an
authorized
technician during
unit installation)
1-2
depending
on the model
FROM EDGE TO HOLE CENTER:50mm
FROM EDGE TO HOLE CENTER:100mm
150
100
100
100
50
50
50
2
2
2
4
4
4
6
RECOMMAND
LIQUID
GAS
BUBBLE
LEVEL
mm
inch
mm
inch
NAME SHAPE QUANTITY (PC)
Connecting
Pipe Assembly
Liquid
Side
1/4in(Φ 6.35)
These parts must
be purchased
separately.
Consult the dealer
about the proper
pipe size of the
unit purchased.
3/8in (Φ 9.52)
Gas Side
3/8in (Φ 9.52)
1/2in (Φ12.7)
5/8in (Φ16)
3/4in (Φ19)
Magnetic Ring and
Clamp (if supplied
refer to the wiring
diagram to install it
to the cable.
Varies by model
1 2 3
Pass the cable
through the
