Carrier 40MKCC - DISASSEMBLY OF CASSETTE INDOOR UNIT (CONT.); Removing the Drain Pump; Removing the Evaporator

28

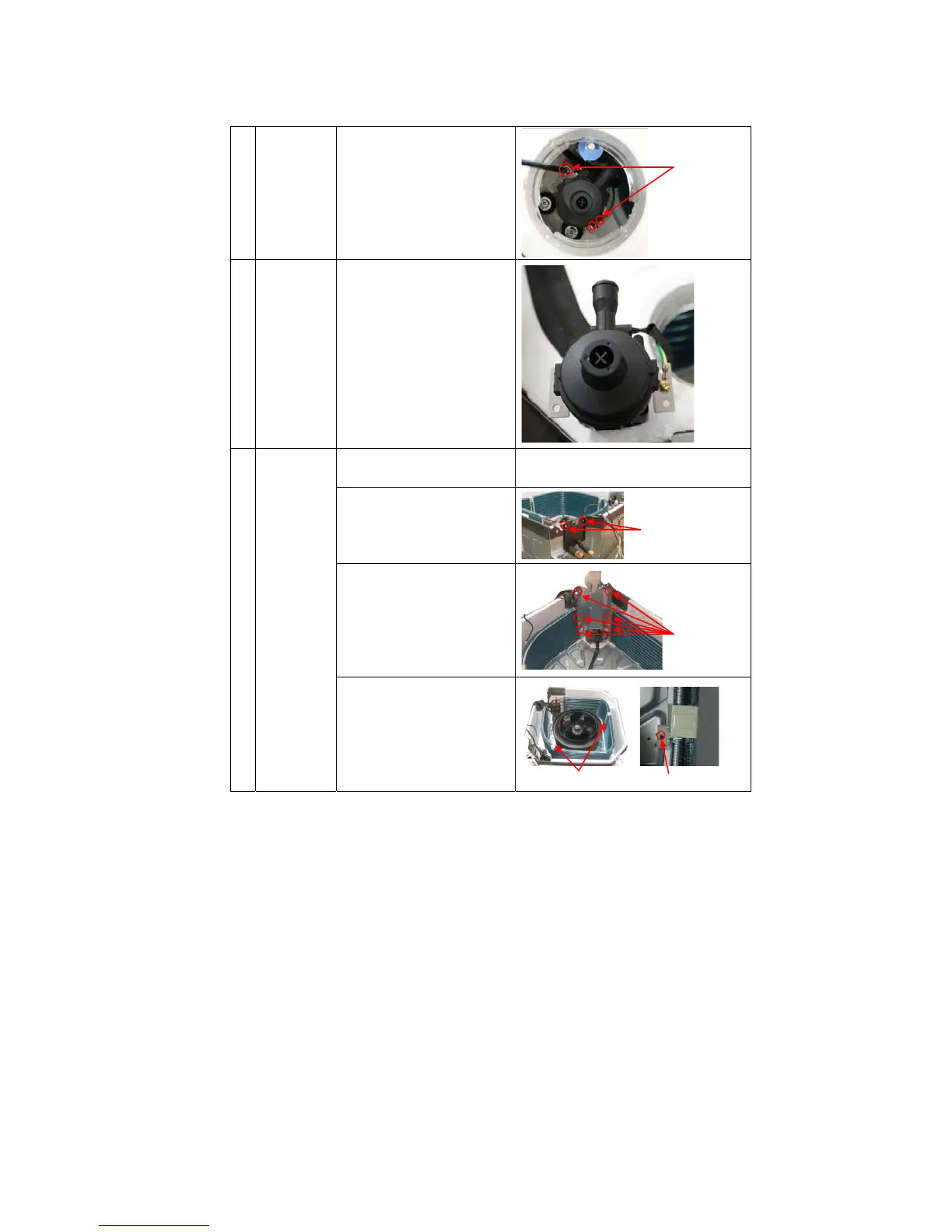

4) Screw off the screws to
remove the drain pump
5) Take out the drain pump
11
Remove the
evaporator
1) Remove the water
collector assembly
Repeat the operation of No.9
2) Remove the seal board of
evaporator
3) Remove the evaporator
fixing board
4) Remove the evaporator
fixing clamps to
disassemble the
evaporator.
Two screws
Six screws
Two fixing clamps One screw
3 screws
