10
OUTDOOR UNIT DIMENSIONS
4 3/16"
11/16"
J
K
N
P
E
FDC
7 1/2"
2 1/2"
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
AB C D E F G H J KLMNP
OPERATING
WEIGHT(lbs)
SHIPPING
WEIGHT(lbs)
SHIPPING
DIMENSIONS (L x W x H)
38QRR018 0 X O O O 25 1/8" 36 15/16" 14 9/16" 16" 23 7/16" 17 3/16" 17 1/8" 22" 13" 6 5/8" 11 1/4" 5/8" 2 15/16" 6" 167 183 42 9/10" X 18" X 28 1/10"
38QRR024 0 X O O O 31 1/8" 36 15/16" 14 9/16" 16" 23 7/16" 17 3/16" 23 1/8" 28" 14" 6 3/4" 11 5/8" 5/8" 2 15/16" 6" 176 194 42 9/10" X 18" X 34 1/10"
38QRR030 0 X O O O 37 3/16" 44 9/16" 17 1/16" 18 7/16" 30 1/2" 19 5/8" 29 3/16" 34 1/16" 13 11/16" 8 1/8" 15 7/8" 3/4" 3 7/16" 6 1/2" 187 210 50 1/2" X 20 1/2" X 40 2/10"
38QRR036 0 X O X X 37 3/16" 44 9/16" 17 1/16" 18 7/16" 30 1/2" 19 5/8" 29 3/16" 34 1/16" 13 11/16" 8 1/8" 15 7/8" 3/4" 3 7/16" 6 1/2" 232 255 50 1/2" X 20 1/2" X 40 2/10"
38QRR048 0 X O X X 43 3/16" 44 9/16" 17 1/16" 18 7/16" 30 1/2" 19 5/8" 35 3/16" 40 1/16" 14 1/2" 8 1/2" 18 7/8" 7/8" 3 7/16" 6 1/2" 278 303 50 1/2" X 20 1/2" X 46 2/10"
38QRR060 0 X O X X 43 3/16" 44 9/16" 17 1/16" 18 7/16" 30 1/2" 19 5/8" 35 3/16" 40 1/16" 14 1/2" 8 1/2" 18 7/8" 7/8" 3 7/16" 6 1/2" 306 331 50 1/2" X 20 1/2" X 46 2/10"
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
18,24 23" X 42"
30,36,48,60 24" X 50"
208-230-1-60
230-1-60
208/230-3-60
460-3-60
1. REQUIRED CLEARANCES: WITH COIL FACING WALL; ALLOW 6" MIN
CLEARANCE ON COIL SIDE AND COIL END AND 36" MIN CLEARANCE
ON COMPRESSOR END AND FAN SIDE. WITH FAN FACING WALL; ALLOW 8" MIN
CLEARANCE ON FAN SIDE AND COIL END AND 36" MIN CLEARANCE
ON COMPRESSOR END AND COIL SIDE. WITH MULTI UNIT APPLICATION;
ARRANGE UNITS SO DISCHARGE OF ONE DOES NOT ENTER INLET OF ANOTHER.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING
MODE IS 55
F, MAX. 125 F.
3. SERIES DESIGNATION IS THE 13TH POSITION OF THE
UNIT MODEL NUMBER.
4. CENTER OF GRAVITY
5. ALL DIMENSIONS ARE IN "INCHES" UNLESS NOTED.
X = YES
O = NO
AIR
AIR
A
B
3/8" LIQUID LINE
MALE FLARE CONN.
FEMALE SWEAT CONN.
VAPOR LINE CONN.
M
H
G
L
1"
8"
4 1/2"
1 7/16"
1 1/2"
FIELD CONTROL SUPPLY
WIRE ENTRY
7/8" HOLE W/GROMMET
FIELD POWER SUPPLY CONN.
HOLE SIZES PROVIDED:
7/8"-1/2"TRADE
1 3/16"-3/4"TRADE
1 3/8"-1"TRADE
JUNCTION BOX FOR
POWER SUPLLY AND
CONTROL CONNECTIONS

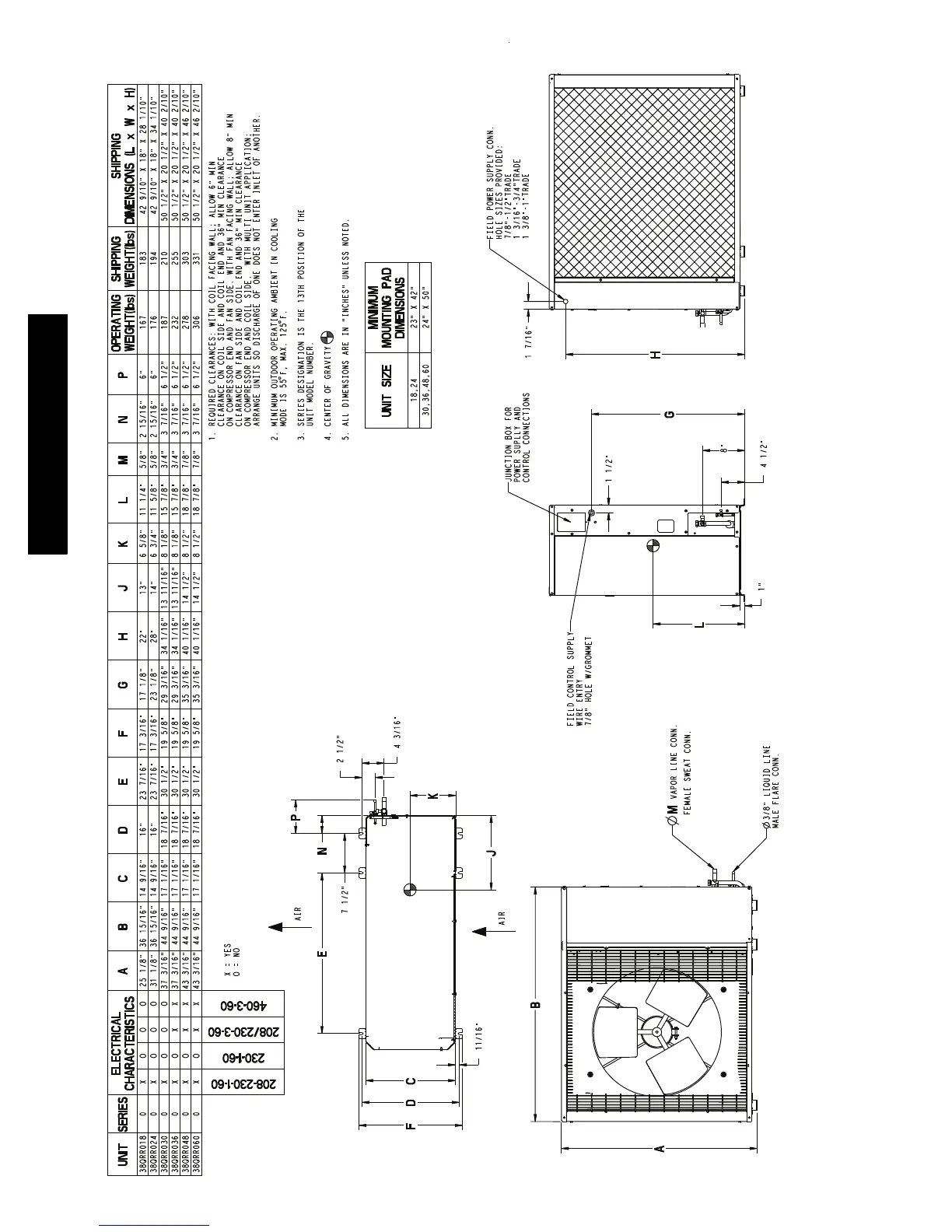

Fig. 7 – 38QRR Dimensions -- English
40QAC/38HDR -- 40QAQ/38QRR
