Carrier 40RUM Series - Base Dimensional Drawing

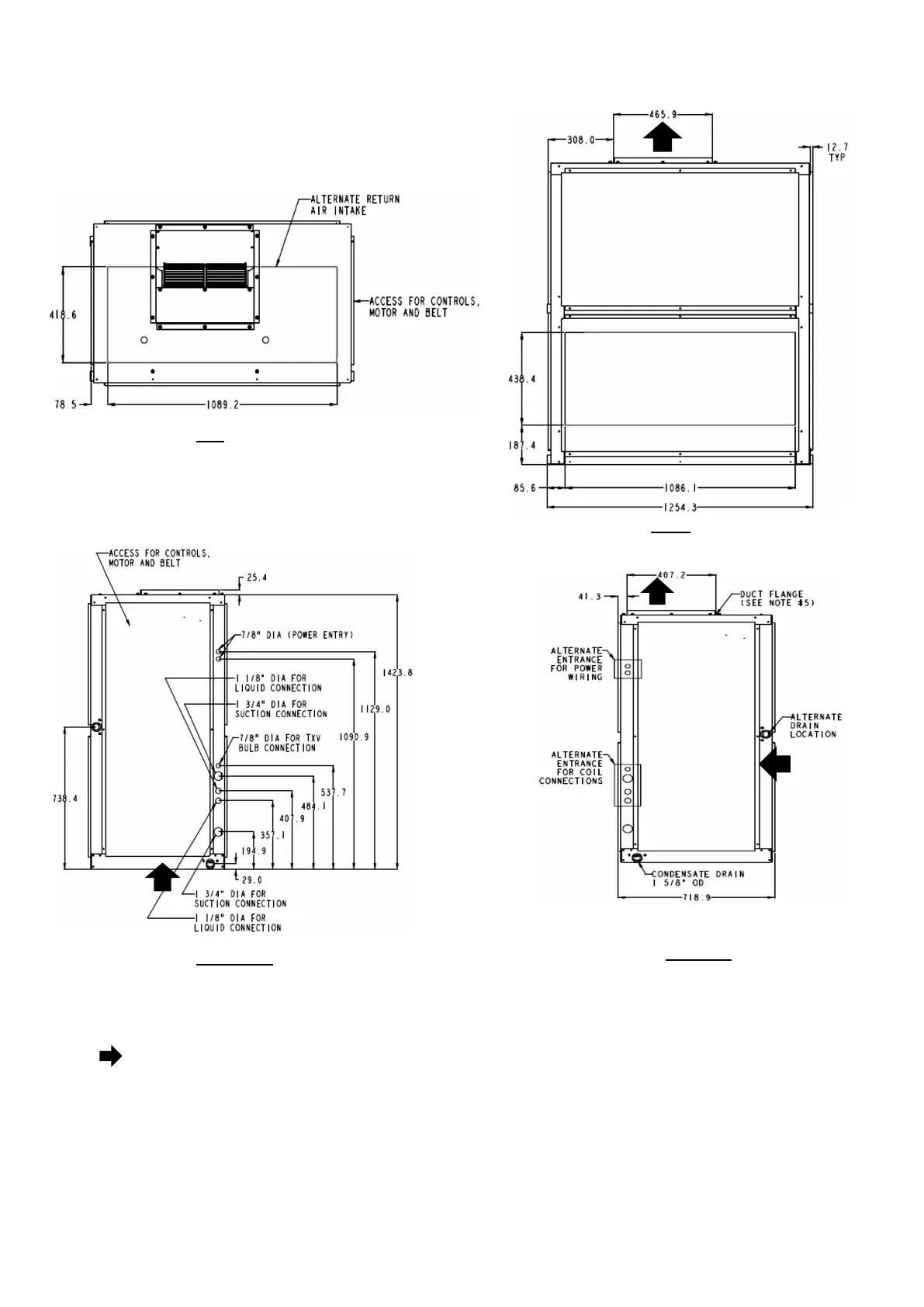

BASE UNIT DIMENSIONS – 40RUM Series Size 07-12
Notes:
1. Dimensions are in millimeter (mm).
2. Direction of airflow.
3. Recommended clearance:
Rear: 3.0 in (76.2mm)
Front: 2.0ft 6.0in (762mm)
Right Side: 2.0ft 6.0in (762mm)
Left Side: 2.0ft 6.0in (762mm)
4. Liquid piping not supplied by Carrier.
5. Duct flange is factory installed.
Top
Front
Right Side
Left Side
Page 5
