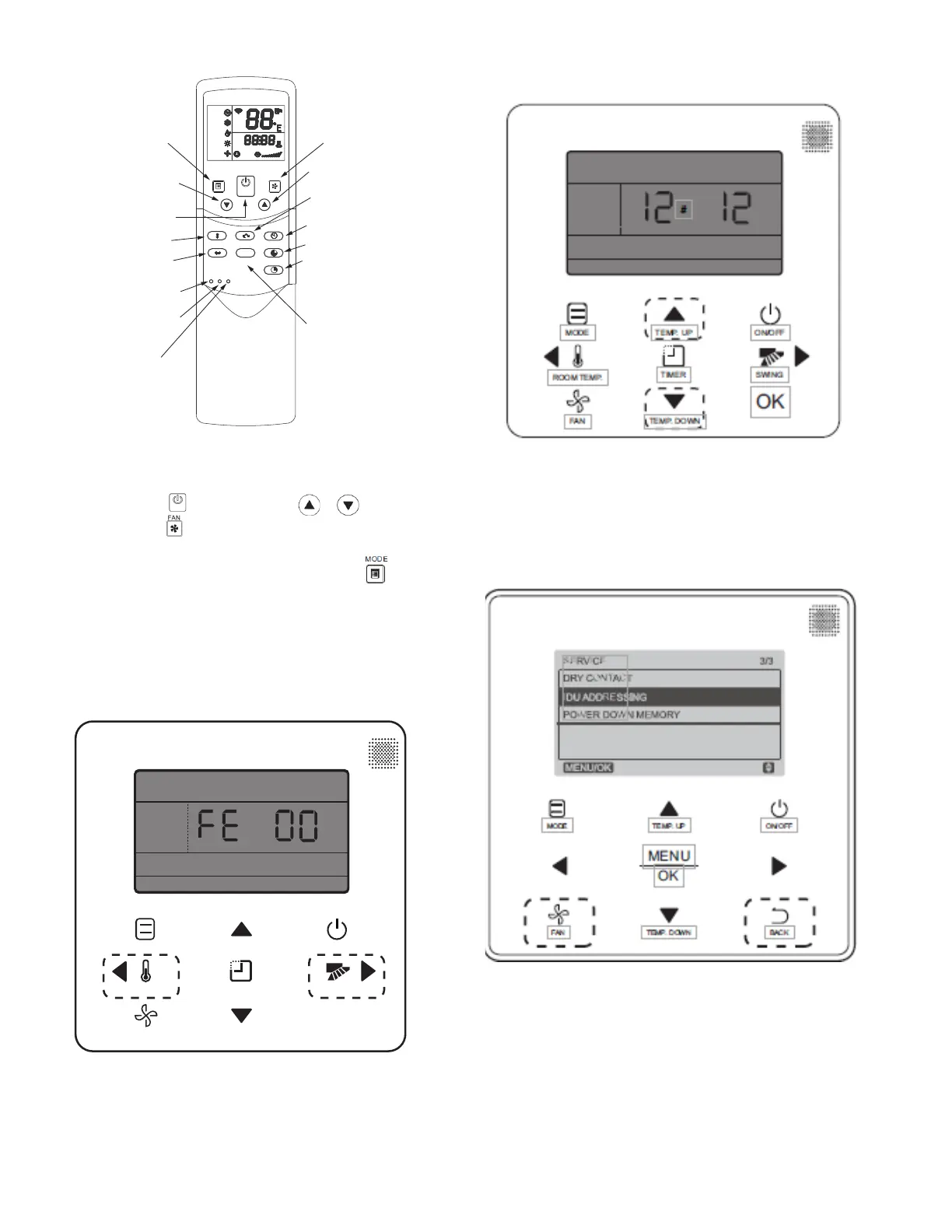

Fig. 23 —Wireless Remote Controller
(40VM900001)
Use a tool to press and hold the LOCK button for at least ten
seconds, and press to activate. Click or to select an
address and press to send the setting.
To display an indoor unit address, use a tool to press and hold
the LOCK button for at least ten seconds, and press
to query the addresses.
Non-Programmable Controller —
When setting an address, connect only one wired controller to
an indoor unit.
Press ROOM TEMP and SWING simultaneously for three
seconds. If there is no address for this indoor unit, the display
shows FE# 00. See Fig. 24. Otherwise, the display shows the
current address of the indoor unit.
Click TEMP.UP or TEMP.DOWN to change 00 to the
desired address as shown in Fig. 25. Press OK to confirm and
exit the setting interface.
Fig. 25 —Non-Programmable Controller Setting
IDU Address
Programmable Controller —
When setting an address, connect only one wired controller to
an indoor unit.
1. Press FAN and BACK simultaneously for five seconds to
access parameter settings as shown in Fig. 26.
Fig. 26 —Programmable Controller IDU
Addressing Menu
2. Press TEMP.UP or TEMP.DOWN to move the cursor
down, choose IDU ADDRESSING and MENU/OK to
enter this setting.
RESET
TIMER ON
TIMER OFF
SWING
AIR DIRECTION
CLOCK
OK
SWING
MODE
FAN
AUTO
COOL
DRY
HEAT
FAN
TEMP
SET
CLOCK
SET
HOUR
FAN SPEED
LOCK
C/H
6 – AIR DIRECTION
4 – ADJUST UP
2 – FAN SPEED SETTING
9 – CLOCK SETTING
14 – OK (CONFIRM)
10 – TIMER ON
11 – TIMER OFF
1 – MODE SETTING
3 – ADJUST DOWN
12 – RESET
13 – LOCK
15 – COOL/HEAT
5 – ON/OFF
7 – AIR VERT. SWING
8 – AIR HORIZ. SWING
34
MODE
FAN TEMP. DOWN
OK
TEMP. UP ON/OFF
TIMER
ROOM TEMP.
SWING
#
Fig. 24 — Non-Programmable Controller IDU
Addressing Menu
