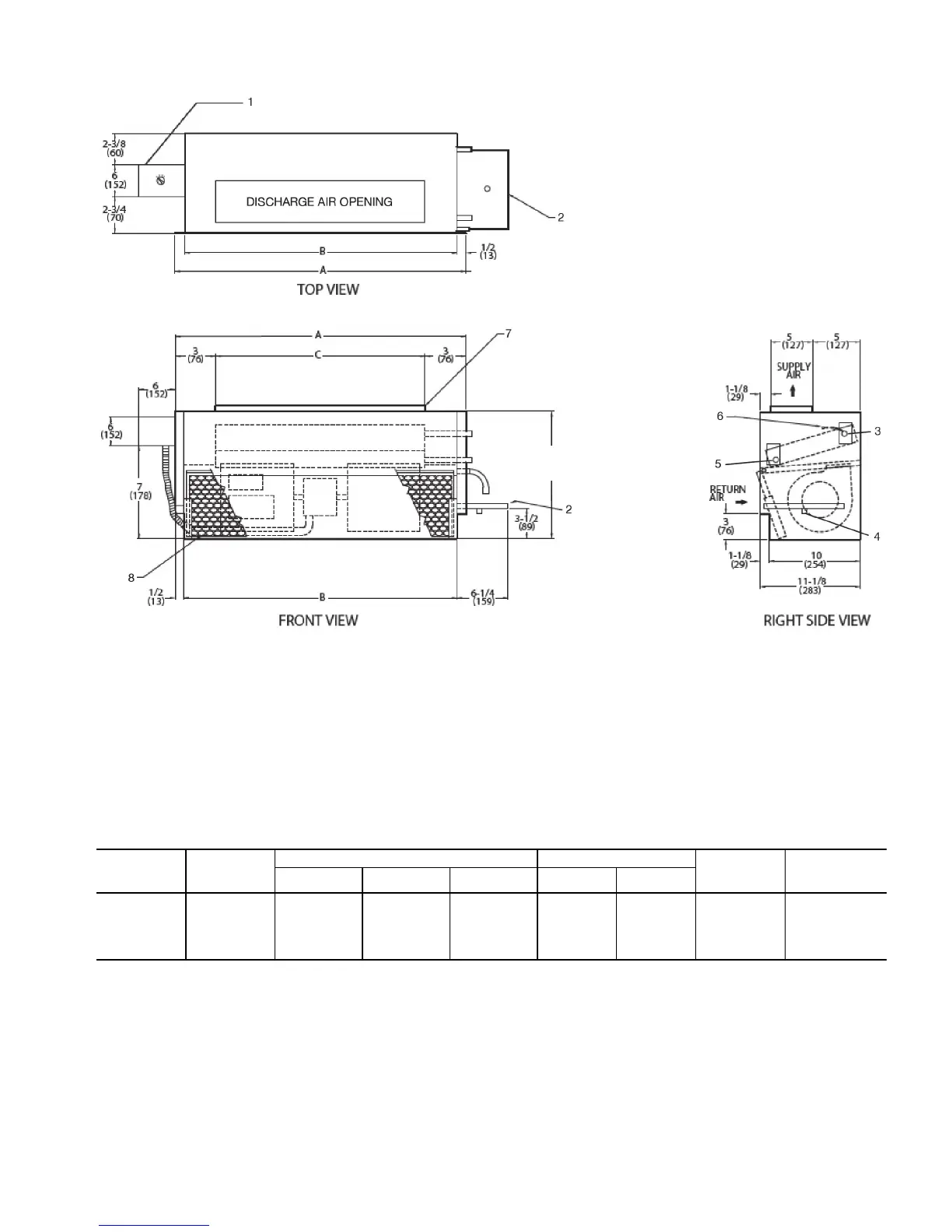

Fig. 19 — 42VC Furred-In Lowboy Unit Dimensions
LEGEND
1—Optional Unit Mounted Control Box
2—Drain Pan, Auxiliary, Shipped Loose
3—Supply Conn,
5
/
8
-in. OD
4—Drain,
3
/
4
-in. MPT
5—Return Conn,
5
/
8
-in. OD
6—Air Vent,
1
/
8
-in. MPT
7—Discharge Opening
8—Filter
*Unit weights are based on dry coils and minimum rows. Weights exclude packaging, valves, and other components.
UNIT SIZE
NOM
AIRFLOW
(Cfm)
DIMENSIONS (in.) QTY/UNIT
FACE AREA
(sq ft)
UNIT WEIGHT*
(lb)
ABCBlowerMotor
02 200232217211.18 50
03 300282722211.53 60
04 400363530212.08 72
06 600 50 49 44 4 2 3.06 110
NOTES:
1. Right hand unit shown; left hand unit opposite. Coil connection
locations are ±
5
/
8
-inch.
2. Unit sizes 02 through 04 have one motor, 2 blowers; size 06
has 2 motors, 4 blowers.
3. Standard 2-row coil shown.
4. Optional unit-mounted switch box and controls, when specified,
are installed on opposite side from cooling connections.
5. Height increases by 2 in. with electric heat.
6. Not shown: 3-speed fan switch,
1
/
2
-in. fiberglass insulation on
inside of casing, closed cell foam on main drain pan.
7. Units have galvanized finish.
8. For optional coil connections, view 42VC-203-1 using the Fan
Coil Builder.
9. Dimensions shown in inches (mm).
